Front Power Seat Control System (With Memory) - Diagnosis: Location

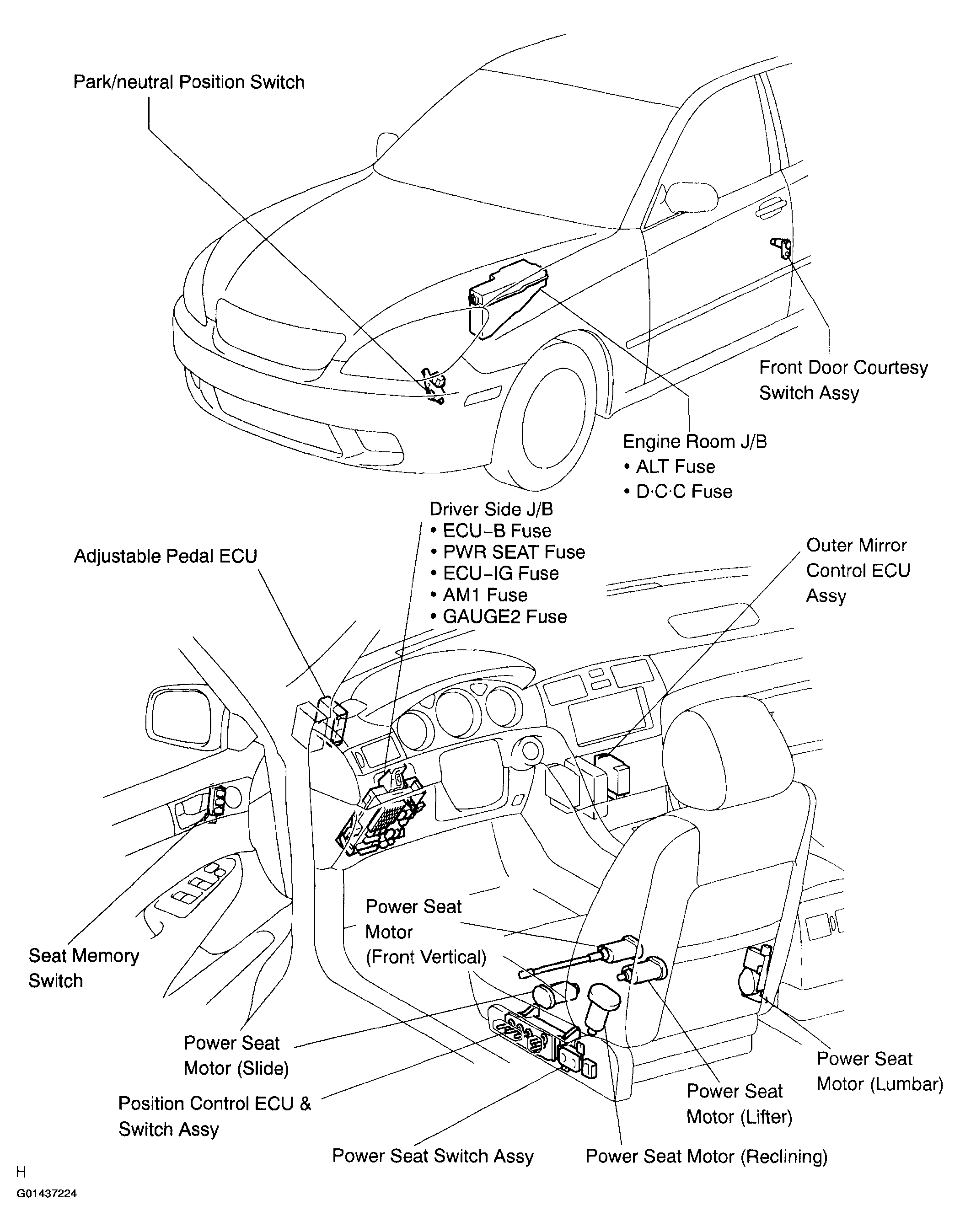

Fig 1: Locating Front Power Seat Control System Components
G01437224Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

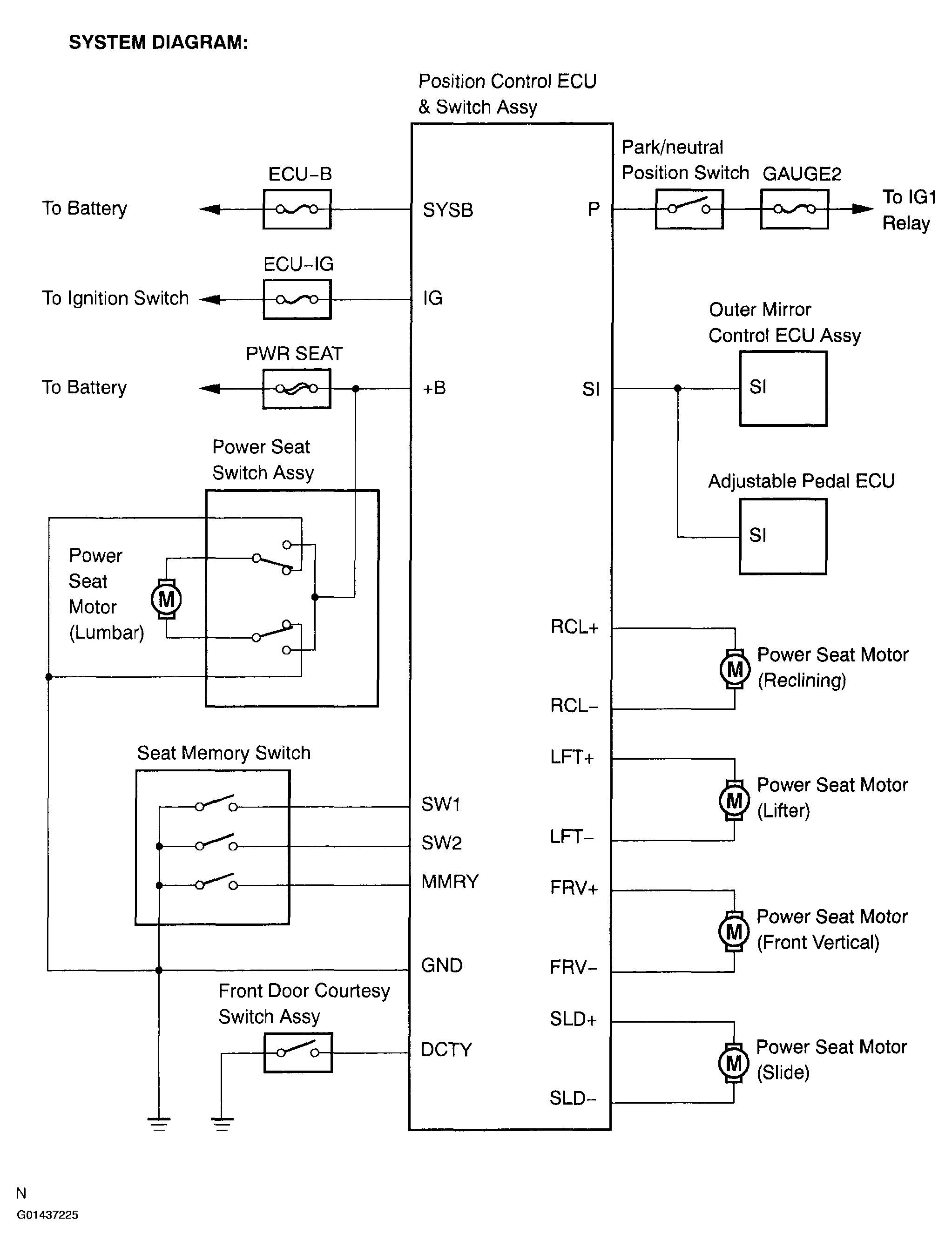

Fig 2: System Diagram Of Front Power Seat Control System Components
G01437225Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
