On-Vehicle Inspection

INSPECT REAR SUN SHADE SYSTEM OPERATION

Standard:

REAR SUN SHADE OPERATION

Condition	Action	Rear sun shade operation
Ignition switch ON Shift lever is P Rear sun shade is opened	Press rear sun shade switch	Close
Ignition switch ON Shift lever is P Rear sun shade is closed	Press rear sun shade switch	Open
Ignition switch ON Shift lever is P Rear sun shade is closed	Shift lever is R	Open
Rear sun shade is operating	Turn ignition switch OFF	Stop
Rear sun shade stops halfway	Turn ignition switch ON Press rear sun shade switch	Close

INSPECT REAR SUN SHADE RELAY

Check the voltage and continuity between the connector terminals.

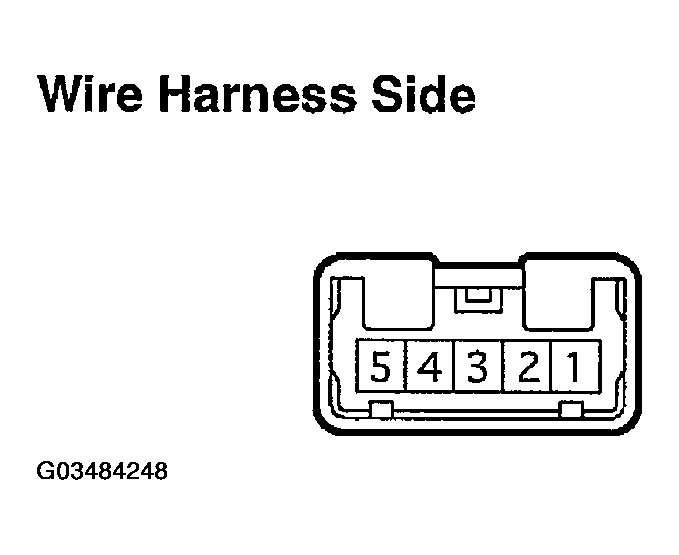

Fig 1: Inspecting Rear Sun Shade Relay

Standard:

REAR SUN SHADE SYMBOLS SPECIFICATION

Symbols (Terminal No.)	Wiring color	Condition	Specified condition
E (5) <==> Body ground	W-B <==> Body ground	Constant	Continuity
IG(1) <==> E (5)	R-L <==> W-B	Ignition switch OFF --> ON	0 V --> 10 - 14 V
FSW (3) <==> E (5)	R-L <==> W-B	Sun shade switch OFF --> ON	No continuity --> Continuity
REV (2) <==> E (5)	L-W <==> W-B	Ignition switch ON, shift lever position is P --> R	0 V --> 10 - 14 V

If the value is not as specified, check and replace the wire harness side.
