Speed Sensor: Replacement

  1. Remove Speed Sensor (Nco Sensor)
    1. Disconnect The Connector.
    2. Remove The Bolt And Speed Sensor.

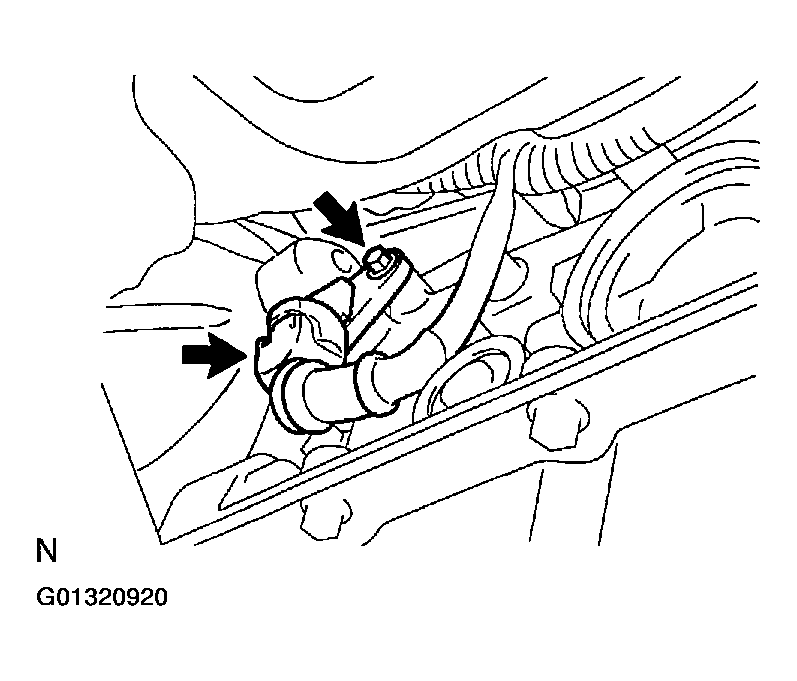

    Fig 1: Removing Speed Sensor
    G01320920Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  2. Remove Speed Sensor (Sp2 Sensor)
    1. Disconnect The Connector.
    2. Remove The Bolt And Speed Sensor.
    Fig 2: Removing Speed Sensor
    G01320921Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. Install Speed Sensor (Sp2 Sensor)
    1. Coat O-Ring With Atf.
    2. Install The Speed Sensor With The Bolt.

      Torque: 5.4 N.M (55 Kgf.Cm, 48 In..Lbf)

    3. Connect The Connector.
    Fig 3: Installing Speed Sensor With Bolt
    G01320922Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. Install Speed Sensor (Nco Sensor)
    1. Coat O-Ring With Atf.
    2. Install The Speed Sensor With The Bolt.

      Torque: 5.4 N.M (55 Kgf.Cm, 48 In..Lbf)

    3. Connect The Connector.

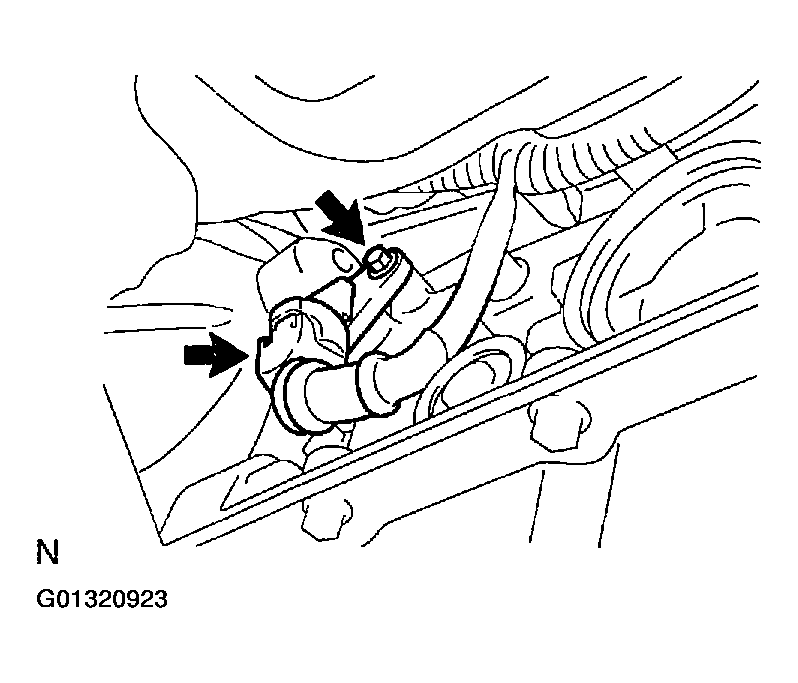

    Fig 4: Installing Speed Sensor With Bolt
    G01320923Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
