Rear Axle Hub Bolt: Replacement

HINT:

• COMPONENTS (See COMPONENTS
• Use the same procedures for the RH side and LH side.
• The procedures listed below are for the LH side.
• A bolt without a torque specification is shown in the standard bolt table (See SPECIFIED TORQUE FOR STANDARD BOLTS ).

1. REMOVE REAR WHEEL
   1. Remove the 10 bolts and ornament.
   2. Remove the 5 nuts and wheel.
2. DISCONNECT DISC BRAKE CYLINDER ASSY REAR LH
   1. Remove the 2 bolts and disconnect the brake cylinder from the axle carrier.
      Fig 1: Disconnecting Disc Brake Cylinder Assy Rear LH

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Support the brake caliper securely.
3. REMOVE REAR DISC
4. REMOVE REAR AXLE LH HUB BOLT
   1. Temporarily install the 2 nuts to the hub bolts as shown in Fig 2 .
      Fig 2: Temporarily Installing Nuts To Hub Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

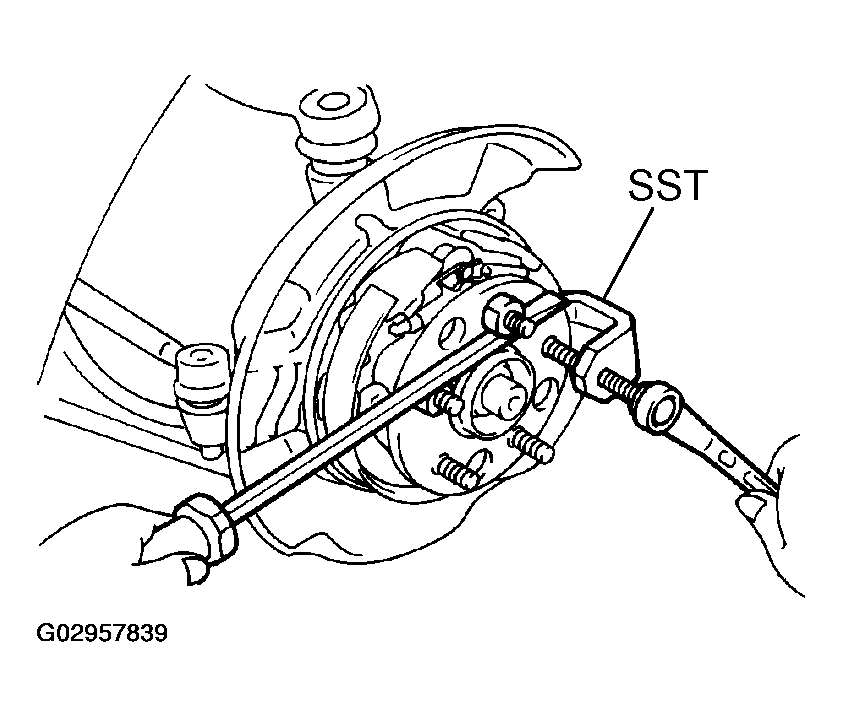

   2. Using SST and a screwdriver or equivalent to hold the axle shaft, remove the hub bolt.

      SST 09628-10011

5. INSTALL REAR AXLE LH HUB BOLT

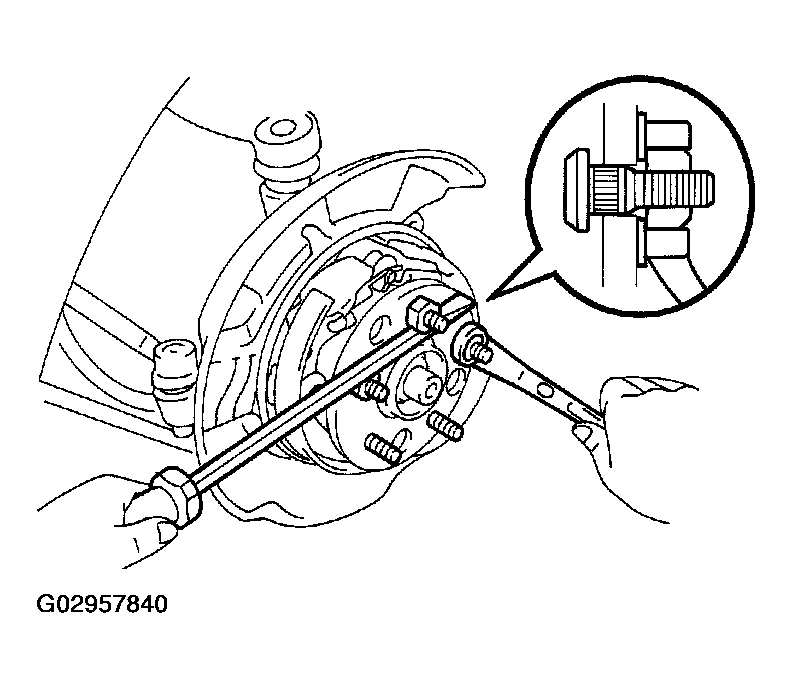

   1. Install a washer and nut to a new hub bolt, as shown in Fig 3 .
      Fig 3: Installing Washer & Nut To Hub Bolt

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Using a screwdriver or an equivalent to hold the axle shaft, install the hub bolt by torquing the nut.
6. INSTALL REAR DISC
7. CONNECT DISC BRAKE CYLINDER ASSY REAR LH
   1. Connect the brake cylinder to the axle carrier with the 2 bolts.

      Torque: 104 N.m (1,065 kgf.cm, 77 ft.lbf)

8. INSTALL REAR WHEEL
   1. Install the wheel with the 5 bolts.

      Torque: 103 N.m (1,050 kgf.cm, 76 ft.lbf)

   2. Install the ornament with the 10 bolts.

      Torque: 20 N.m (204 kgf.cm, 15 ft.lbf)
