Roof Headlining ASSY: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

The installation procedures are the removal procedures in reverse order.
A bolt without a torque specification is shown in the standard bolt table (see SPECIFIED TORQUE FOR STANDARD BOLTS ).

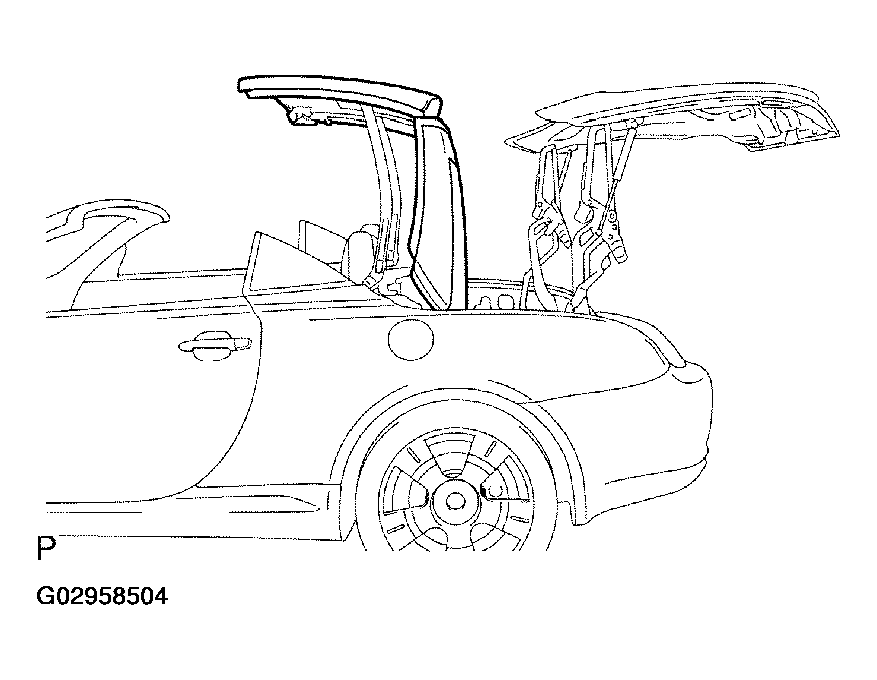

OPEN ROOF PANEL HALFWAY (See MANUAL OPEN OPERATION )

Fig 1: Identifying Open Roof Panel Halfway
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR SCUFF PLATE ASSY RH
1. Using a clip remover, detach the 5 clips.
2. Using a screwdriver, detach the 6 claws and remove the scuff plate.
  HINT:

  Tape the screwdriver tip before use.

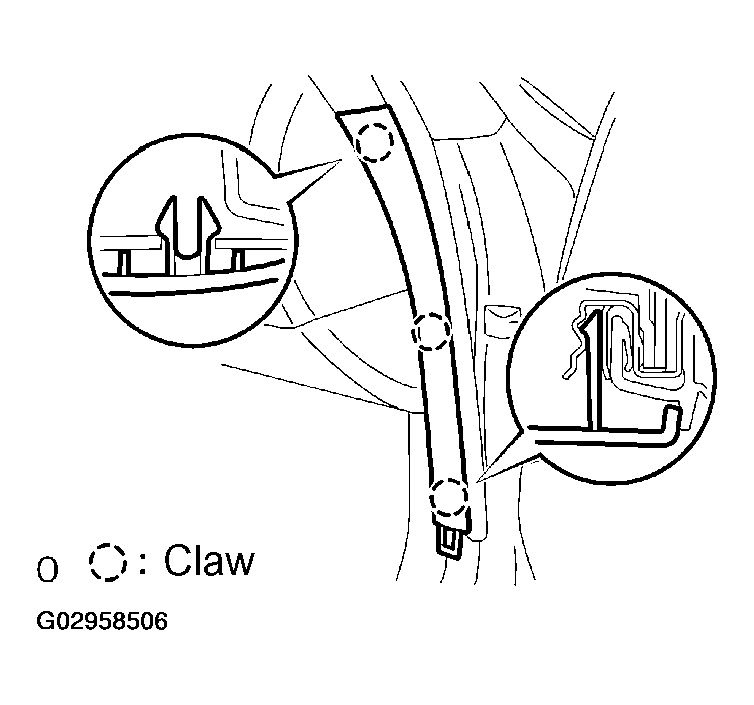

  Fig 2: Removing Scuff Plate
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE DOOR SCUFF PLATE ASSY LH
HINT:

Use the same procedures described for the RH side.
REMOVE FRONT DOOR OPENING TRIM COVER RH
1. Using a screwdriver, detach the 3 claws and remove the trim cover.
  HINT:

  Tape the screwdriver tip before use.

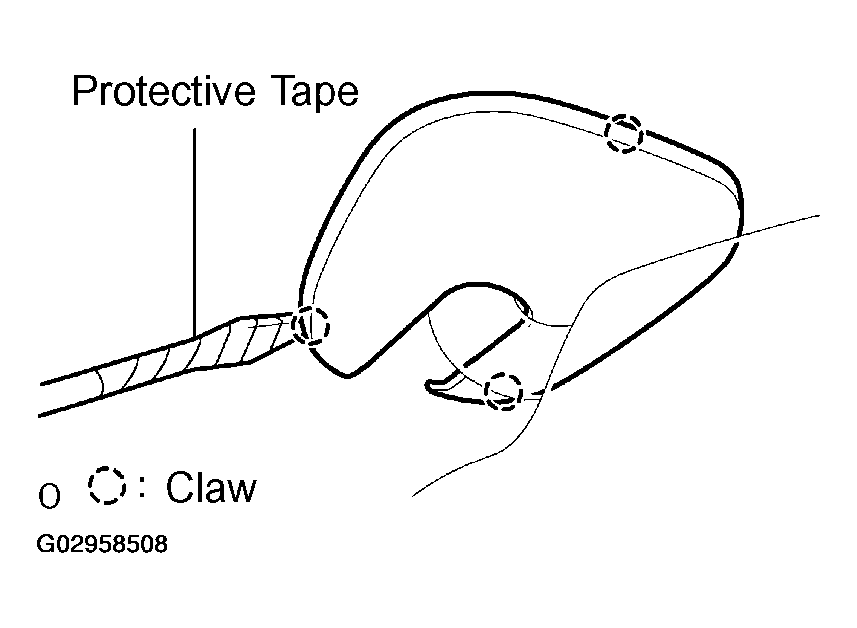

  Fig 3: Removing Trim Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT DOOR OPENING TRIM COVER LH
HINT:

Use the same procedures described for the RH side.
REMOVE FRONT PILLAR GARNISH RH
1. Using a screwdriver, detach the 2 clips and remove the garnish.
  HINT:

  Tape the screwdriver tip before use.

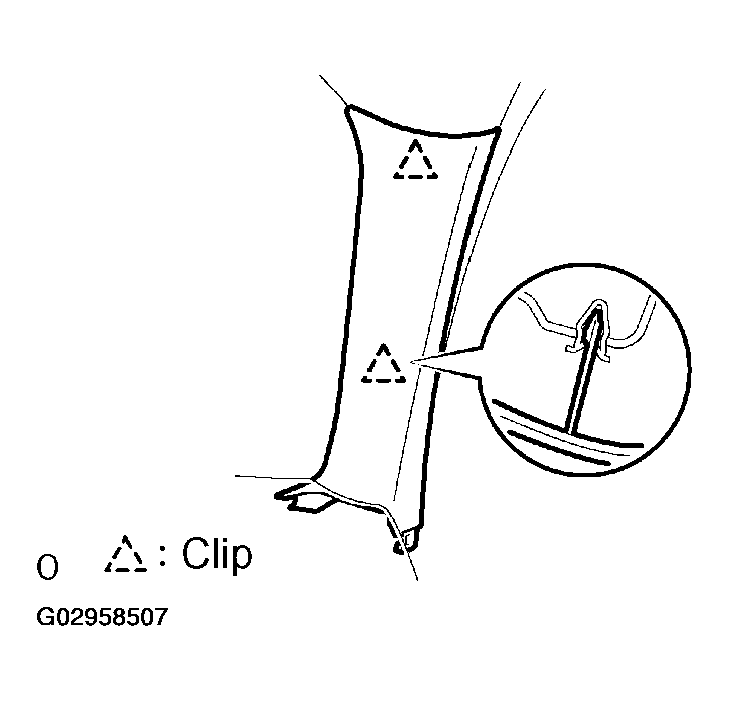

  Fig 4: Removing Front Pillar Garnish
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE FRONT PILLAR GARNISH LH
HINT:

Use the same procedures described for the RH side.
REMOVE VISOR BRACKET COVER RH
1. Using a screwdriver, detach the 3 claws and remove the bracket cover.
  HINT:

  Tape the screwdriver tip before use.

  Fig 5: Removing Visor Bracket Cover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE VISOR BRACKET COVER LH
HINT:

Use the same procedures described for the RH side.
REMOVE RH VISOR ASSY
1. Remove the 2 screws and visor.
REMOVE LH VISOR ASSY
1. Remove the 2 screws and visor.
REMOVE VISOR HOLDER
1. Remove the 2 holders by turning them counterclockwise.

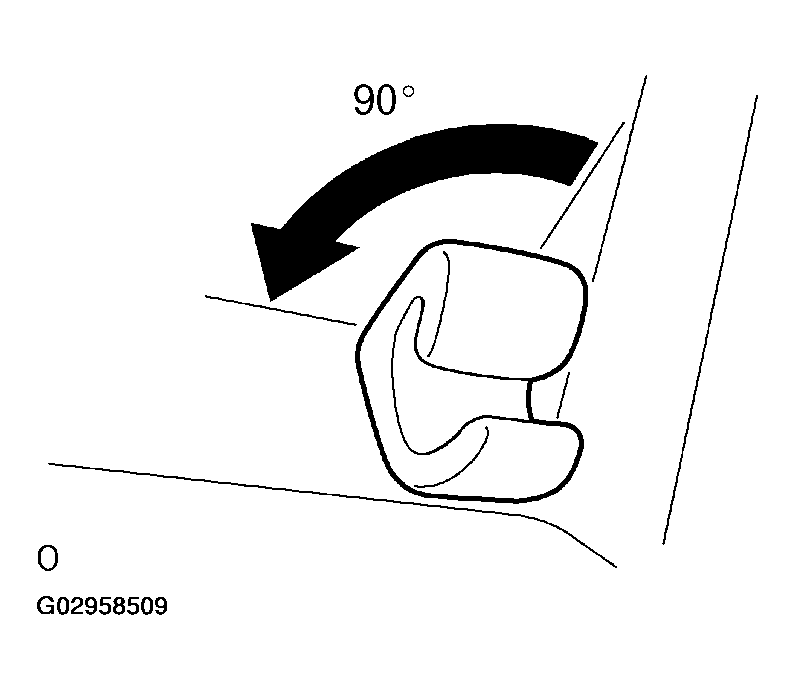

  Fig 6: Removing Visor Holder
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE MAP LAMP ASSY

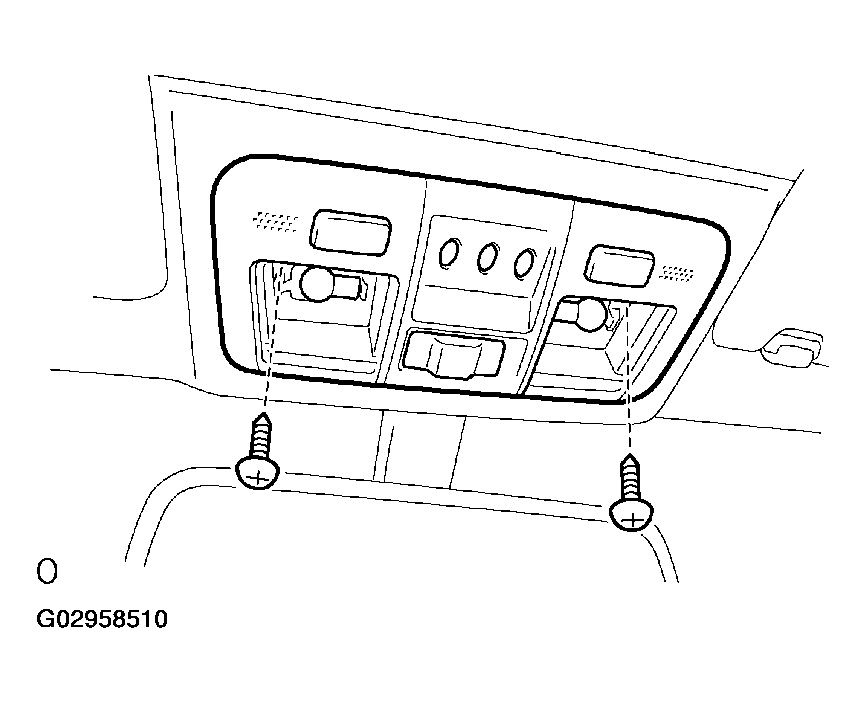

1. Using a screwdriver, pry out the 2 lenses.
  HINT:

  Tape the screwdriver tip before use.
2. Remove the 2 screws and map lamp.
3. Disconnect the map lamp connector.

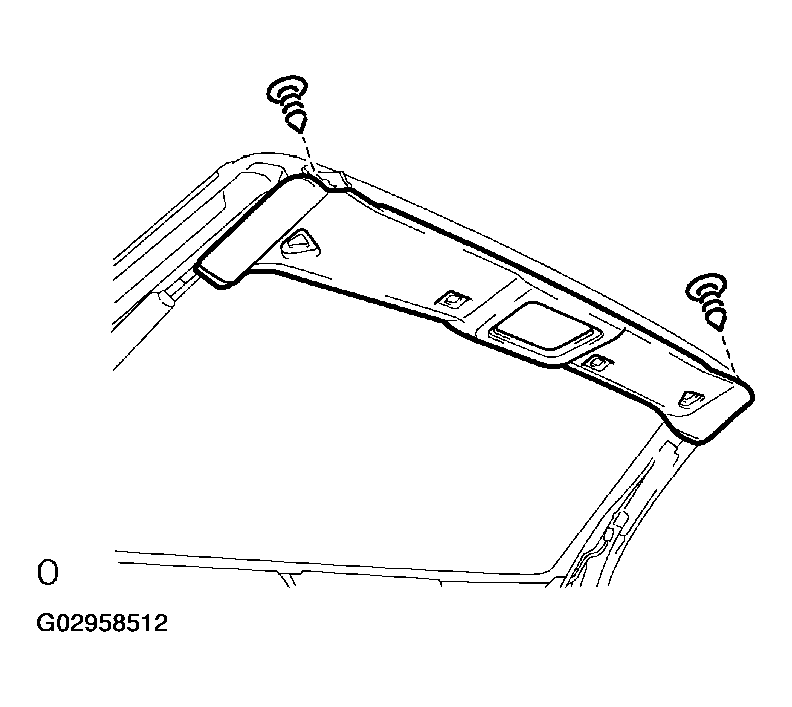

  Fig 7: Removing Map Lamp Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF FRONT CORNER HEADLINING RH
1. Using a screwdriver, detach the 2 clips and remove the headlining.
  HINT:

  Tape the screwdriver tip before use.

  Fig 8: Removing Roof Front Corner Headlining
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF FRONT CORNER HEADLINING LH
HINT:

Use the same procedures described for the RH side.
REMOVE ROOF HEADLINING ASSY
1. Using a clip remover, remove the 2 clips.

  Fig 9: Removing Clips Using Clip Remover
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

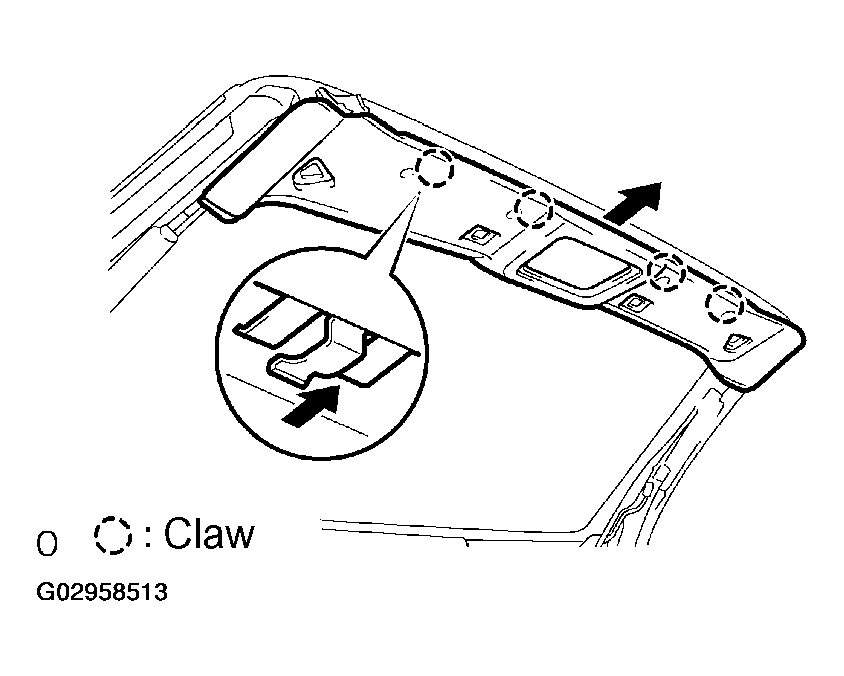

2. Pull the headlining as indicated by the arrow in Fig 10 to detach the 4 claws. Then remove the headlining.

  Fig 10: Removing Headlining
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE RAIL GARNISH ASSY RH

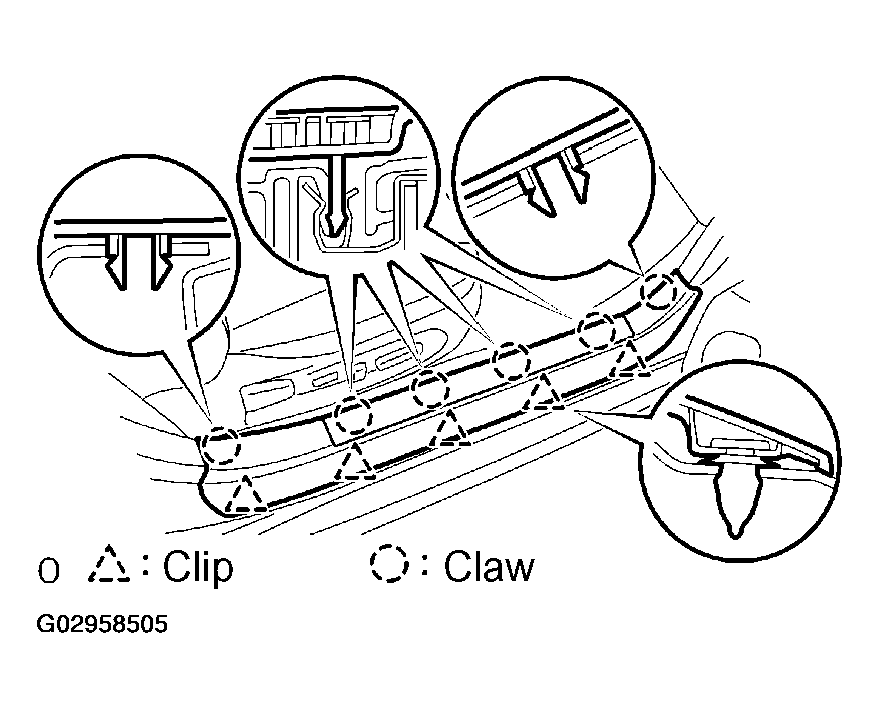

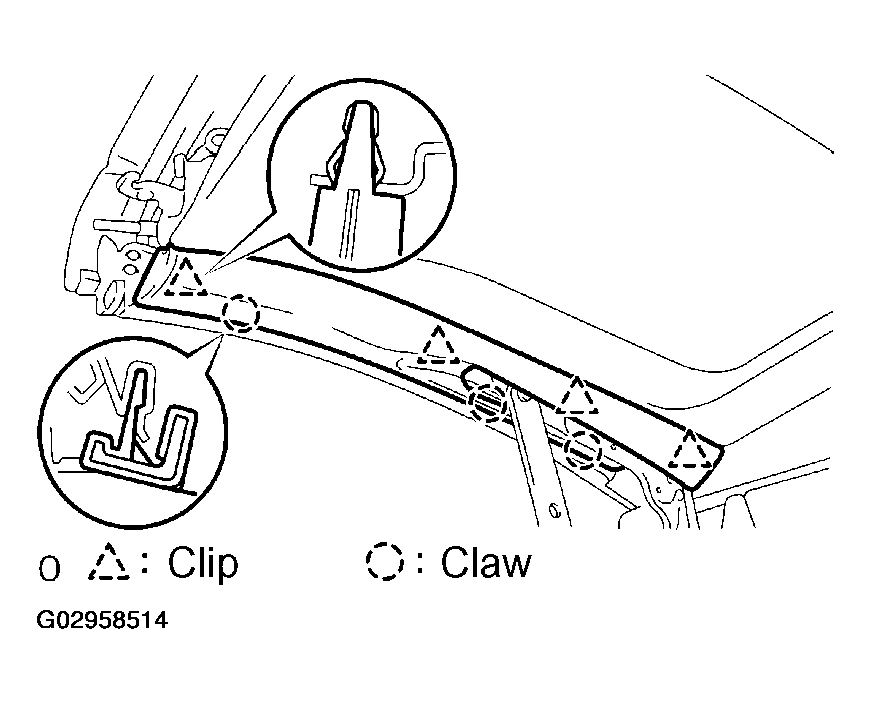

1. Using a screwdriver, detach the 4 clips and 3 claws. Then remove the garnish.
  HINT:

  Tape the screwdriver tip before use.

  Fig 11: Removing Roof Side Rail Garnish Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE RAIL GARNISH ASSY LH
HINT:

Use the same procedures described for the RH side.
REMOVE ROOF HEADLINING ASSY CENTER

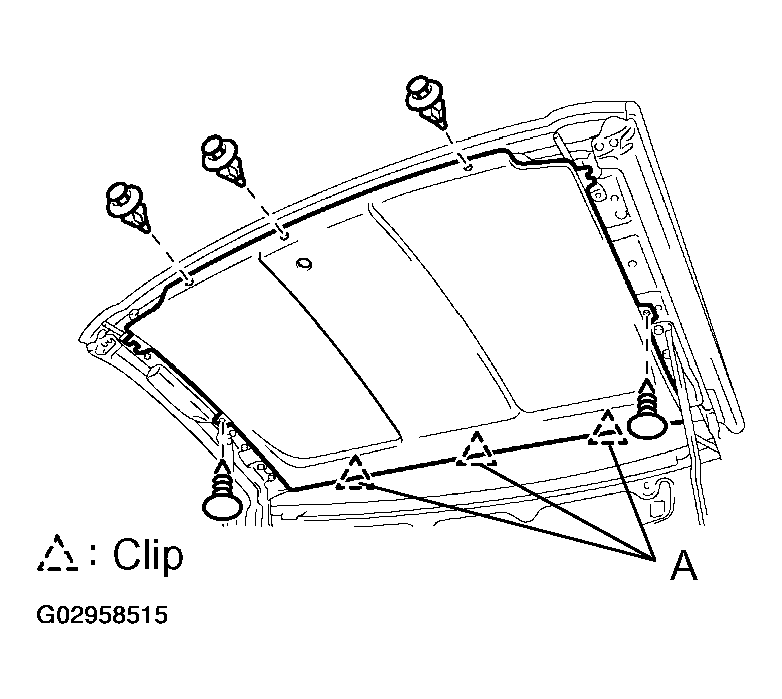

1. Using a clip remover, remove the 5 clips.
2. Using a screwdriver, detach the 3 clips labeled A and remove the headlining.
  HINT:

  Tape the screwdriver tip before use.

  Fig 12: Removing Roof Headlining Assy Center
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE GARNISH INNER RH

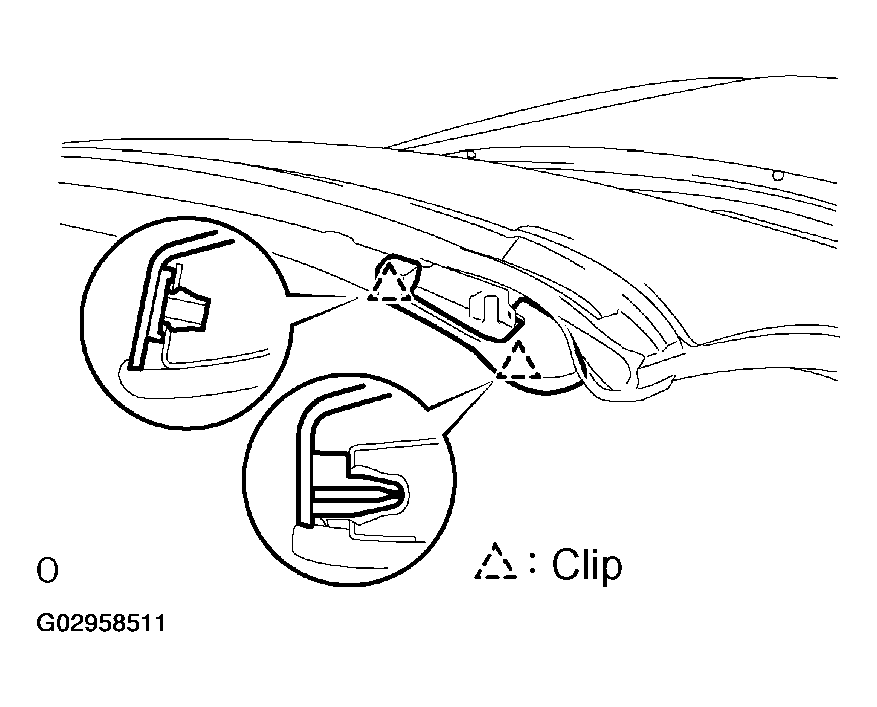

1. Using a clip remover, remove the clip labeled A.
2. Using a screwdriver, detach the 7 clips and claw. Then remove the garnish.
  HINT:

  Tape the screwdriver tip before use.

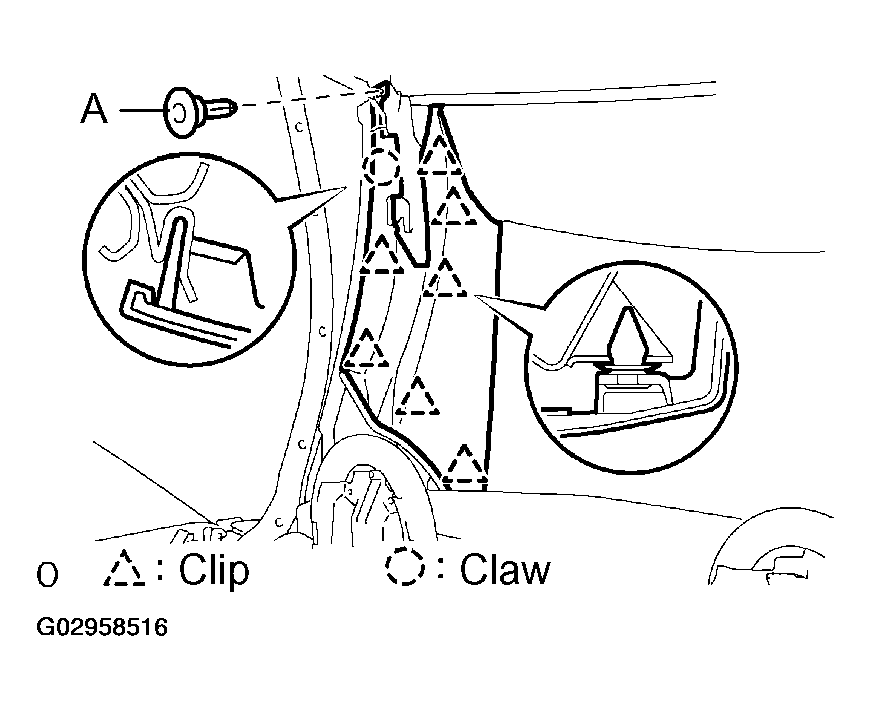

  Fig 13: Removing Roof Side Garnish Inner
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE ROOF SIDE GARNISH INNER LH
HINT:

Use the same procedures described for the RH side.
REMOVE ROOF HEADLINING ASSY REAR

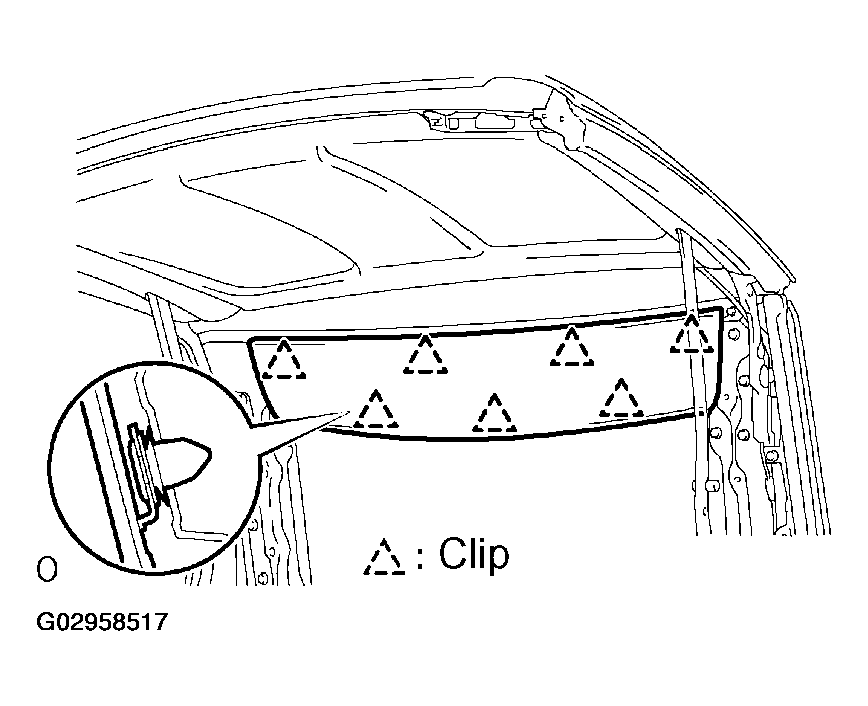

1. Using a screwdriver, detach the 7 clips and remove the headlining.
  HINT:

  Tape the screwdriver tip before use.

  Fig 14: Removing Roof Headlining Assy Rear
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
