Front Bumper Cover: Replacement

HINT:

• The installation procedures are the removal.
• Use the same procedures for the RH side and LH side.

1. REMOVE RADIATOR GRILLE
   1. Remove the 3 bolts and radiator grille.
2. REMOVE FRONT FENDER LINER LH
   1. Remove the 5 screws and partially remove the front fender liner LH.

   HINT:

   It is only necessary to partially remove the front fender liner LH in order to be able to remove the front bumper cover.

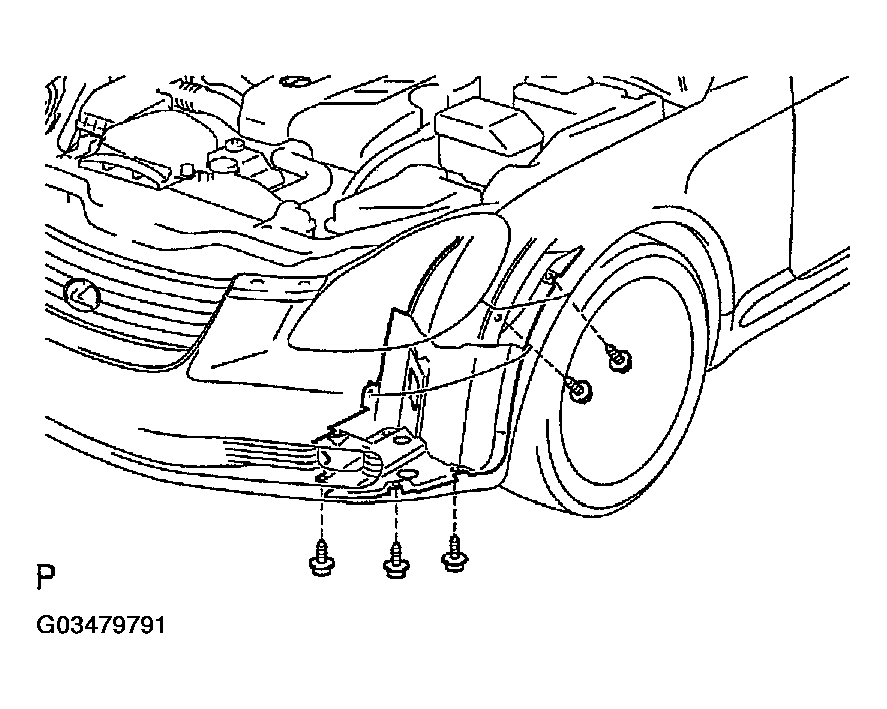

   Fig 1: Removing Front Fender Liner LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. REMOVE FRONT FENDER LINER RH
4. REMOVE FRONT BUMPER COVER
   1. Remove the 6 screws and 4 clips.
   2. Remove the hook and front bumper cover.
   3. Disconnect the fog lamp connectors.
   4. Disconnect the side marker lamp lense connectors.
   5. Disconnect the washer hose.

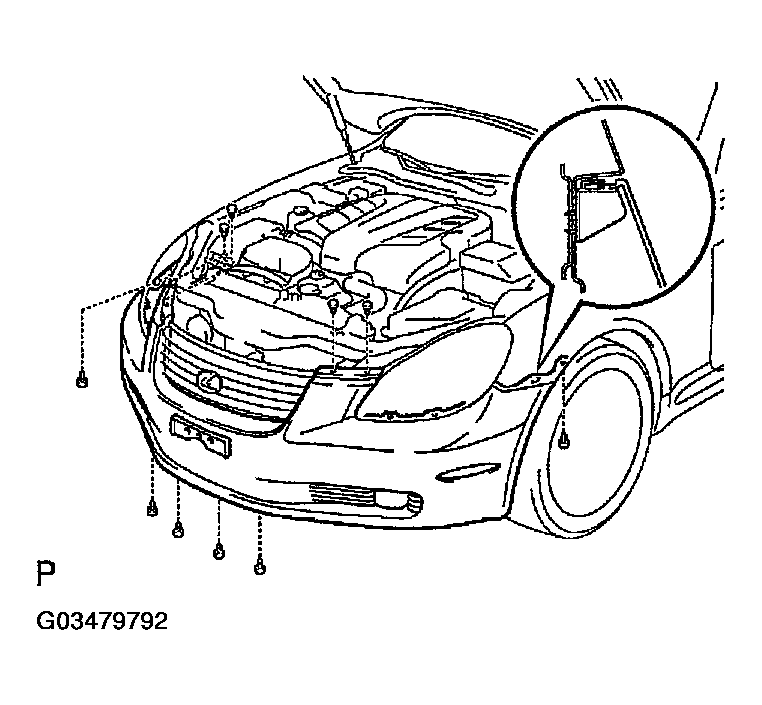

   Fig 2: Removing Front Bumper Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
5. REMOVE FRONT BUMPER MOLDING
   1. Remove the hook and front bumper molding.
6. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSY LH
   1. Remove the clamp.
   2. Using a screwdriver, pull out the front washer nozzle.

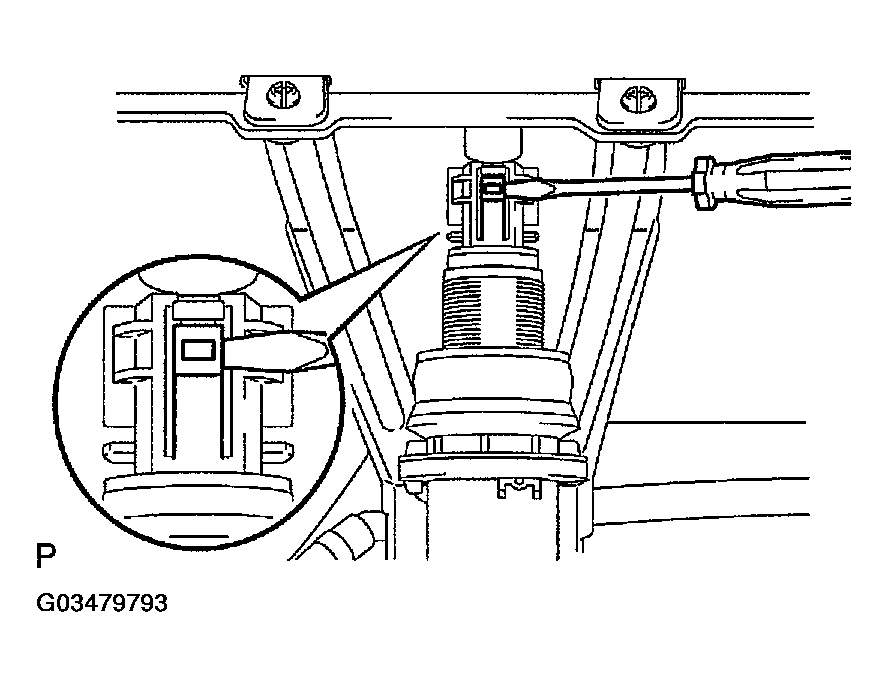

      Fig 3: Removing Front Washer Nozzle Using Screwdriver

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   3. Remove the 2 clips, bolt and head lamp washer actuator.
7. REMOVE HEADLAMP WASHER ACTUATOR SUB-ASSY RH
8. REMOVE FRONT FOG LAMP ASSY LH (See  REPLACEMENT  )
9. REMOVE FRONT FOG LAMP ASSY RH (See  REPLACEMENT  )
10. REMOVE FRONT BUMPER HOLE COVER LH
    1. Using a screwdriver, remove the front bumper hole cover.

    HINT:

    Tape the screwdriver tip before use.

11. REMOVE FRONT BUMPER HOLE COVER RH
12. REMOVE SIDE TURN SIGNAL LAMP ASSY LH (See  REPLACEMENT  )
13. REMOVE SIDE TURN SIGNAL LAMP ASSY RH (See  REPLACEMENT  )
14. REMOVE FRONT BUMPER EXTENSION MOUNTING BRACKET
    1. Remove the 2 bolt and front bumper extension mounting bracket.
15. REMOVE FRONT BUMPER ENERGY ABSORBER
