Rear Side Marker Lamp Lens LH: Replacement

WARNING: This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

HINT:

COMPONENTS: See LIGHTING

  1. REMOVE TONNEAU COVER STOPPER SUB-ASSY LH (See  REPLACEMENT  )
  2. REMOVE TONNEAU COVER STOPPER SUB-ASSY RH (See  REPLACEMENT  )
  3. REMOVE REAR FLOOR FINISH PLATE (See  REPLACEMENT  )
  4. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (See  REPLACEMENT  )
  5. REMOVE LUGGAGE COMPARTMENT TRIM COVER LH (See  REPLACEMENT  )
  6. REMOVE LUGGAGE COMPARTMENT TRIM COVER RH (See  REPLACEMENT  )
  7. REMOVE SPARE WHEEL COVER ASSY (See  REPLACEMENT  )
  8. REMOVE TOOL BOX COVER (See  REPLACEMENT  )
  9. REMOVE LUGGAGE COMPARTMENT TRIM COVER SUB-ASSY REAR (See  REPLACEMENT  )
  10. REMOVE TONNEAU COVER ASSY (See  REPLACEMENT  )
  11. REMOVE LUGGAGE COMPARTMENT TRIM COVER INNER LOWER (See  REPLACEMENT  )
  12. REMOVE LUGGAGE COMPARTMENT TRIM COVER FRONT (See  REPLACEMENT  )
  13. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE LH (See  REPLACEMENT  )
  14. REMOVE LUGGAGE COMPARTMENT TRIM COVER SIDE RH (See  REPLACEMENT  )
  15. REMOVE REAR BUMPER COVER (See  REPLACEMENT  )
  16. REMOVE REAR SIDE MARKER LAMP LENS LH
    1. Remove the screw.
    2. Remove the rear side marker lamp lens assy.
    3. Remove the bulb socket and rear side marker lamp lens LH.

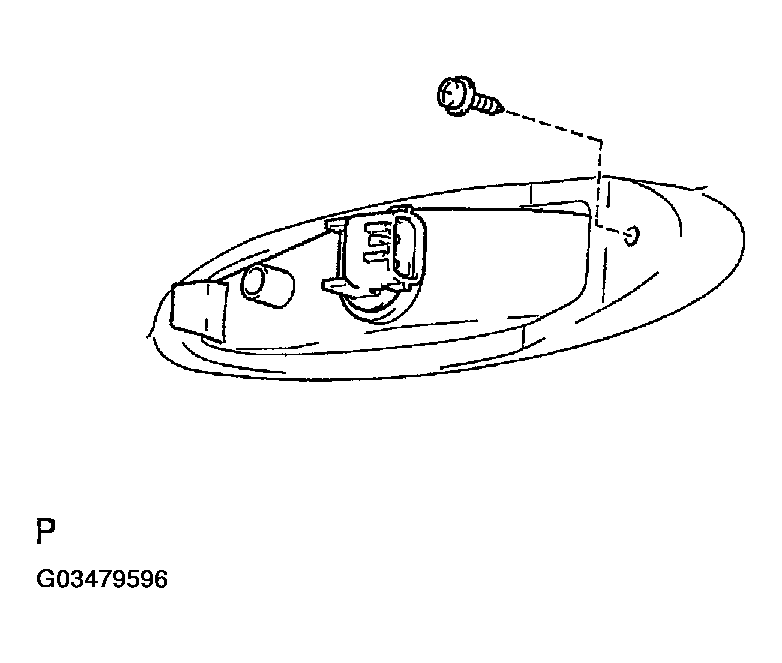

    Fig 1: Removing Rear Side Marker Lamp Lens
    G03479596Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
