Rear Heater Unit: Disassembly

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

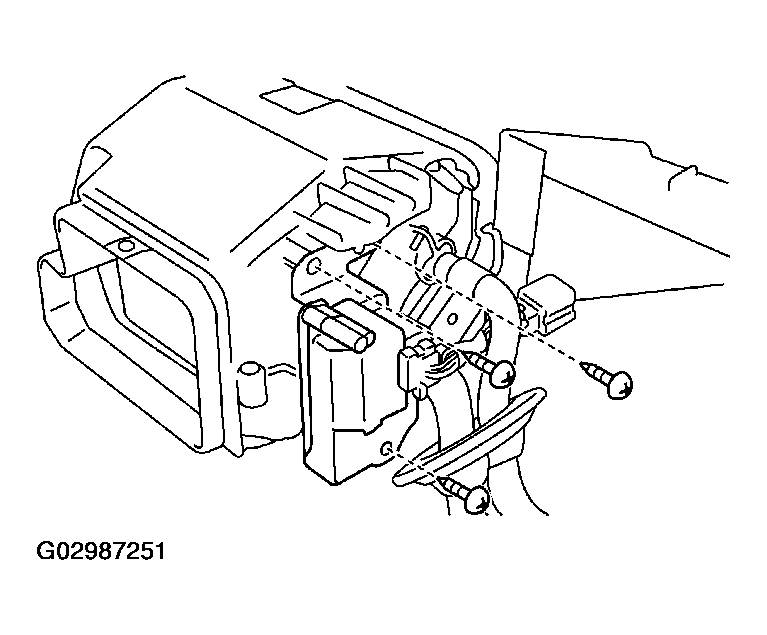

REMOVE AIR MIX SERVOMOTOR
Remove the 3 screws and the air mix servomotor.

Fig 1: Removing Air Mix Servomotor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE HEATER RADIATOR
1. Remove the 3 screws and 2 clamps
2. Pull out the heater radiator.

  Fig 2: Removing Heater Radiator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

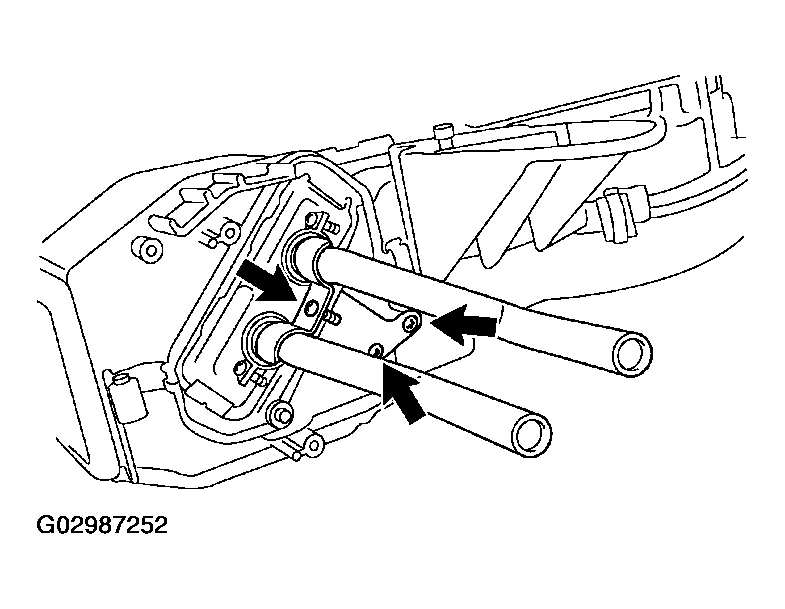

3. Remove the 2 screws, 2 clamps and the heater radiator pipes.
4. Remove the 2 O-rings.
HINT:

At the time of reassembly, do not reuse the O-rings

Fig 3: Removing Heater Radiator Pipes Clamps
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

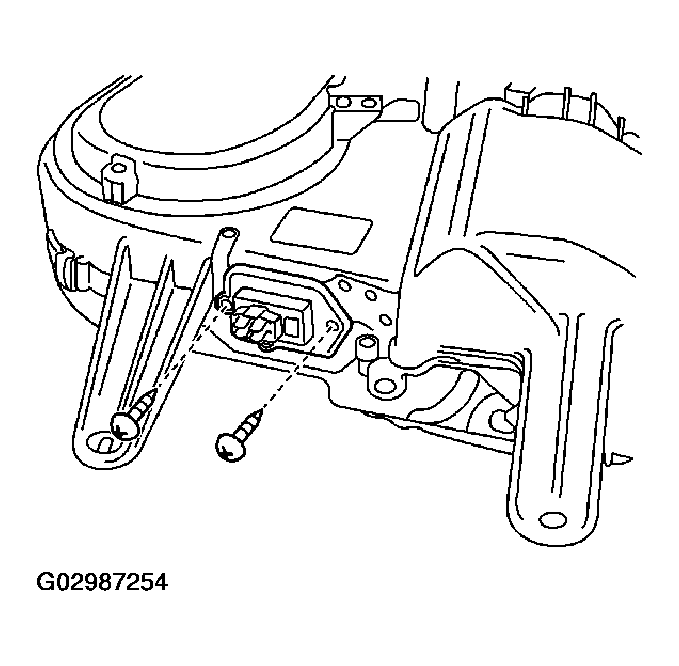

REMOVE POWER TRANSISTOR
Remove the 2 screws and the power transistor.

Fig 4: Removing Power Transistor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

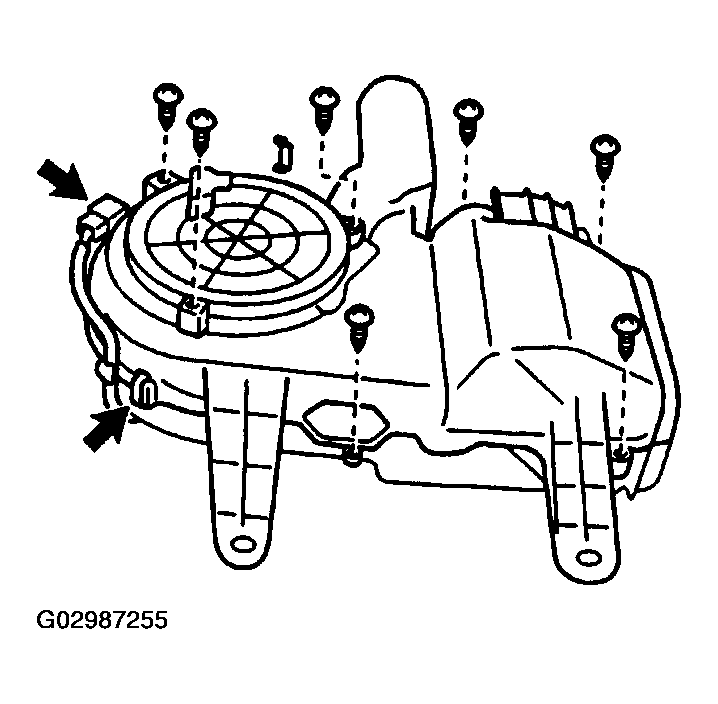

REMOVE BLOWER MOTOR
1. Remove the 3 screws and the cover.
2. Remove the 4 screws, the 3 holding springs and separate the heater cases.

  Fig 5: Separating Heater Cases
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

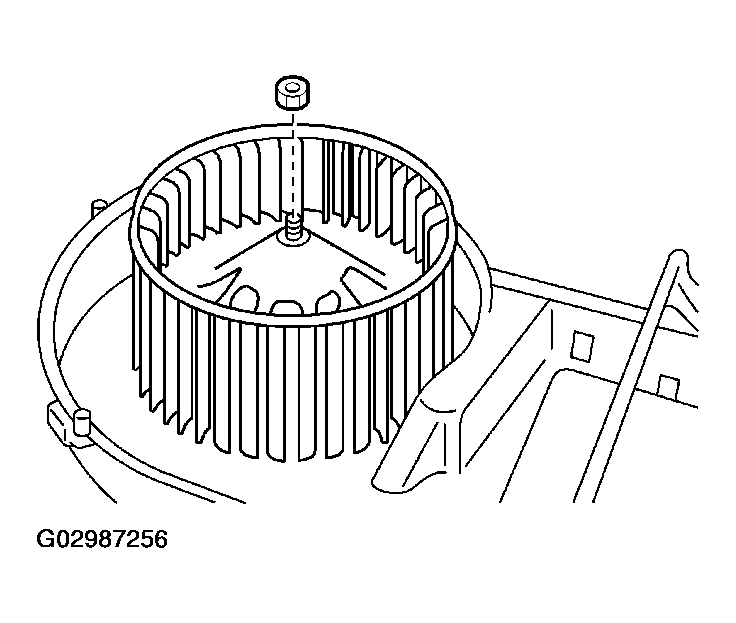

3. Remove the nut and the fan.

  Fig 6: Removing Fan
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the screws and the blower motor.
Fig 7: Removing Blower Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
