Rear Cooling Unit: Disassembly

WARNING: This page is about a different car, the 2004 Lexus LX 470. However, it is still accessible from the selected car via links, so may be relevant.

REMOVE A/C AMPLIFIER
Remove the 2 screws and the A/C amplifier.

Fig 1: Removing A/C Amplifier
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE POWER TRANSISTOR
1. Disconnect the connector.
2. Remove the 2 screws and the power transistor.
Fig 2: Removing Power Transistor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER CASE
1. Remove the wire harness.
2. Remove the 11 screws, 3 holding springs and separate the cooling unit cases.
3. Disconnect the connector.
4. Remove the blower case.
Fig 3: Removing Blower Case
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE BLOWER MOTOR
Remove the 3 screws and the blower motor.

Fig 4: Removing Blower Motor
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EVAPORATOR
1. Disconnect the 2 connector clamps.
2. Remove the 10 screws and the 2 holding springs, and separate the cooling unit cases.

  Fig 5: Separating Cooling Unit Cases
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Pull out the thermistor from the evaporator.

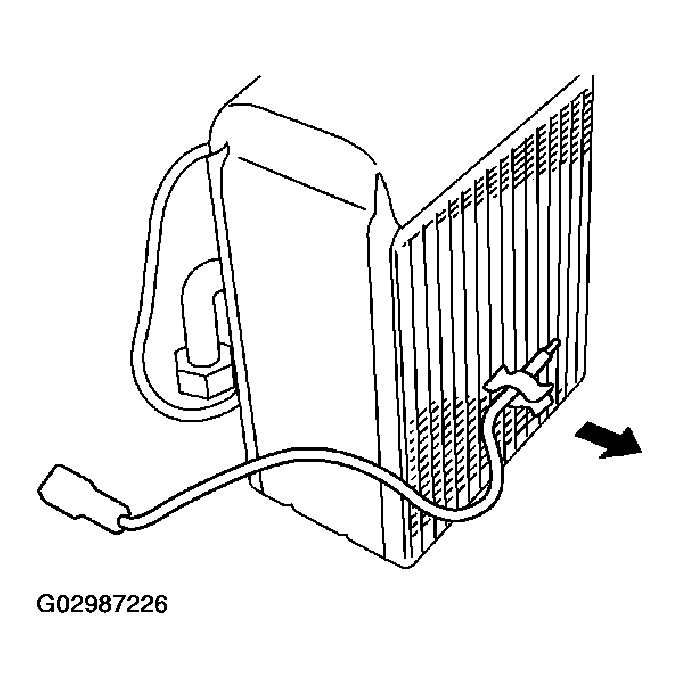

  Fig 6: Pulling Out Thermistor From Evaporator
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the screw and the piping clamp.
5. Loosen the 2 nuts and remove the tube and accessory.
  Torque:

  Liquid line: 14 N.m (140 kgf.cm, 10 ft.lbf)

  Suction line: 32 N.m (330 kgf.cm, 24 ft.lbf)

  Fig 7: Removing Tube & Accessory
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

  NOTE: Cap the open fittings immediately to keep moisture or dirt out of the system.

  HINT:

  At the time of reassembly, lubricate 2 new O-rings with compressor oil and install them in the tubes.
6. Remove the evaporator.
  HINT:

  At the time of reassembly, if evaporator was replaced, add compressor oil to the new evaporator.

  Add 40 cc: (1.4 fl.oz.)

  Compressor oil: ND-OIL 8 or equivalent
Fig 8: Removing Evaporator
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE EXPANSION VALVE
Using a hexagon wrench (5.0 mm, 0.20 in.), remove the 2 bolts and separate the expansion valve and evaporator.

Torque: 5.4 N.m (55 kgf.cm, 48 in.lbf)

HINT:

At the time of reassembly, lubricate 4 new O-rings with compressor oil and install them in the tubes.

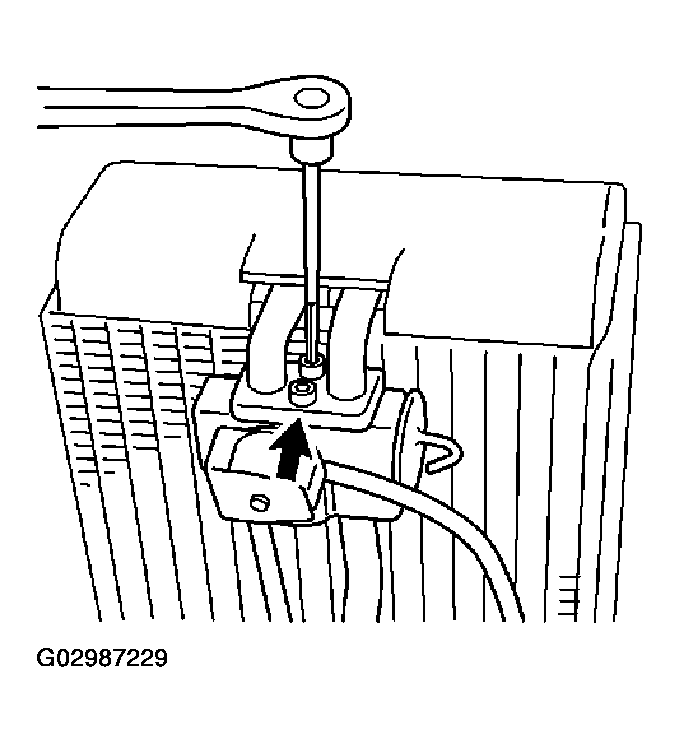

Fig 9: Removing Expansion Valve
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
