Testing Procedure

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

For wiring diagram see Figure. For testing procedure see Fig 1.

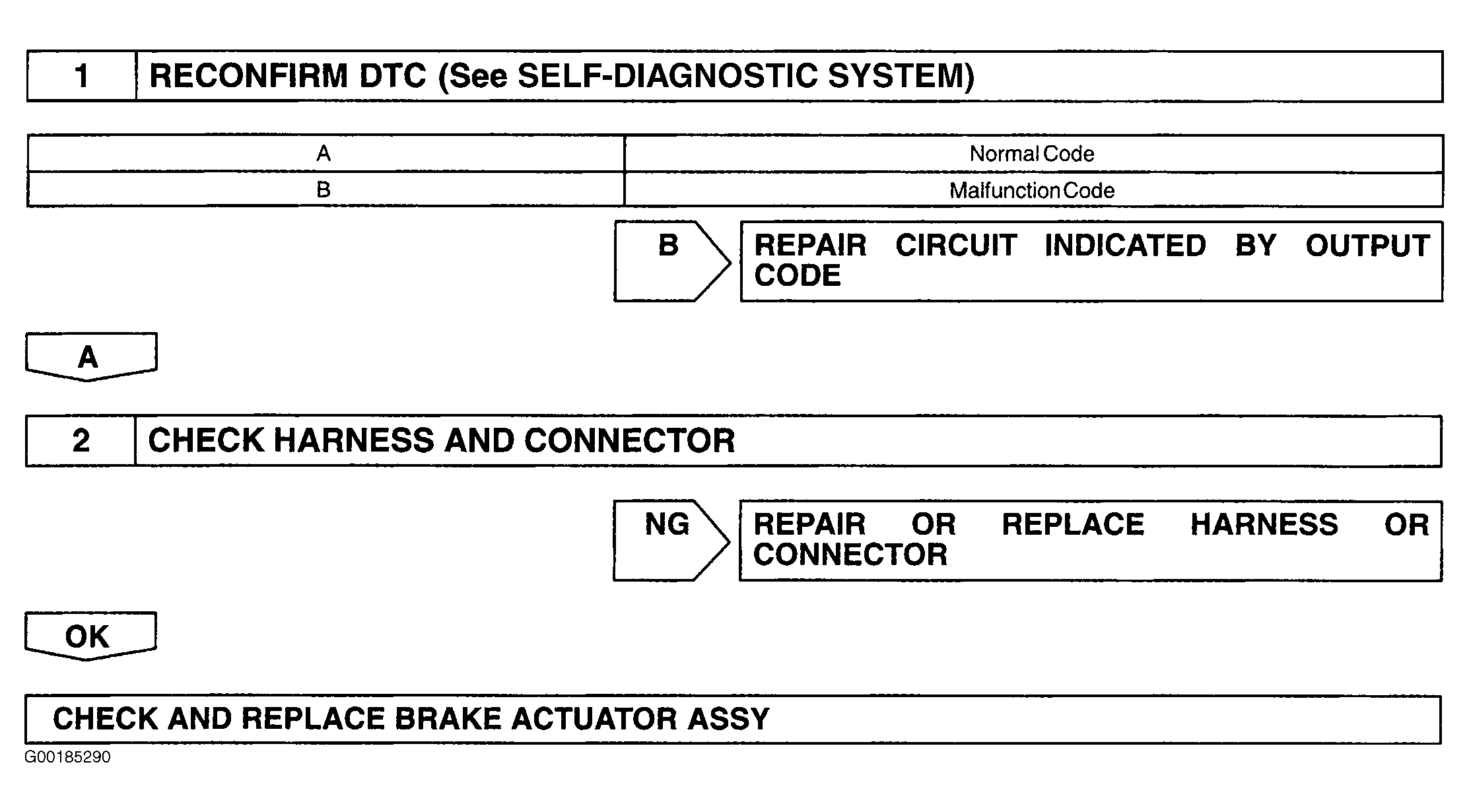

Fig 1: Testing ABS Warning Light Circuit Remains On
G00185290Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
