Active List

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Performing ACTIVE TEST using hand-held tester, allows the relay, VSV, actuator and so on to operate without parts removal. Performing ACTIVE TEST as a first step of troubleshooting is one method to shorten labor time. It is possible to display the DATA LIST during the ACTIVE TEST. See Figure.

Connect hand-held tester to the DLC3. See Figure.
Turn ignition switch to ON.
According to display on tester, read ACTIVE TEST. See Fig 1.

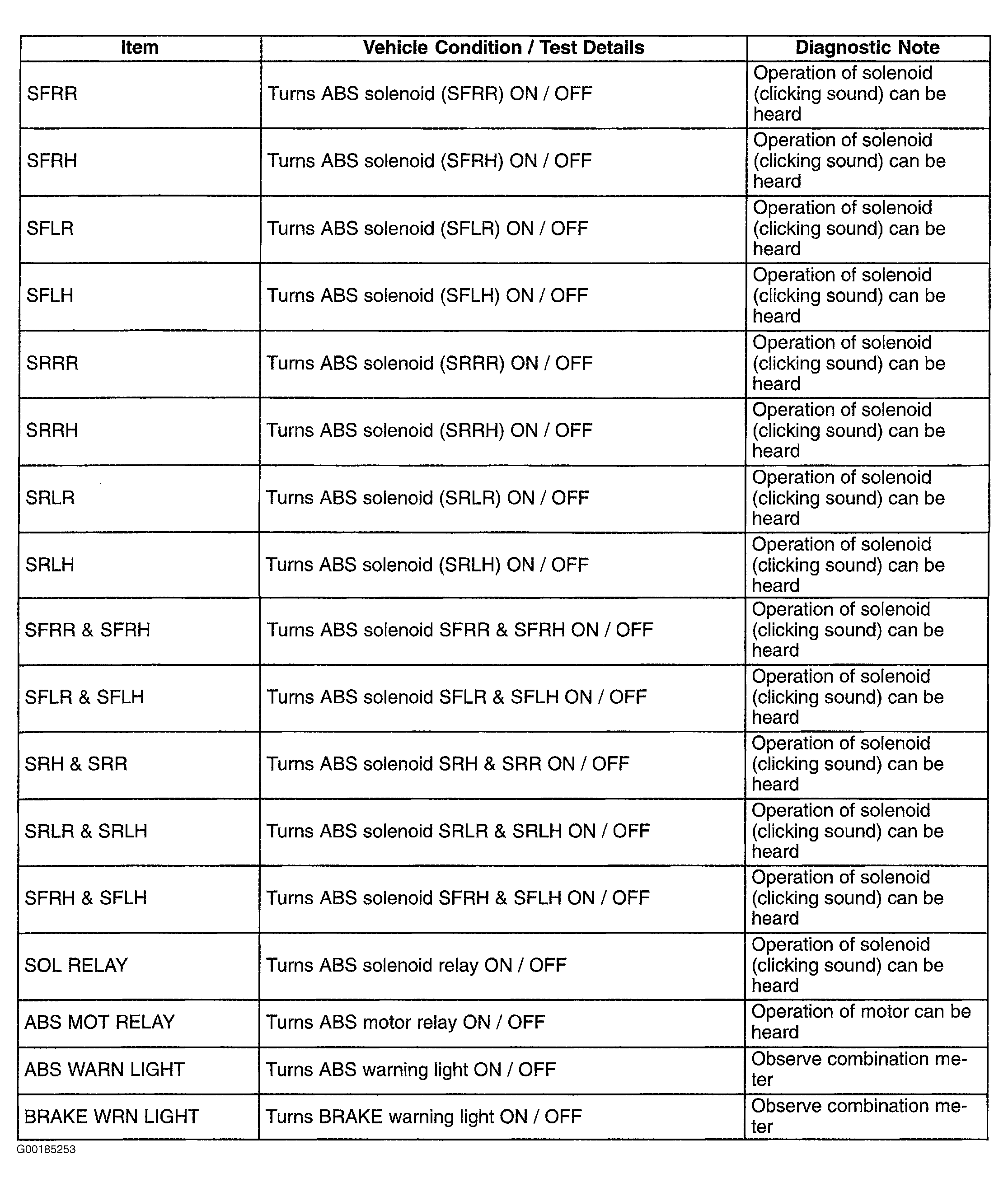

Fig 1: Identifying ACTIVE LIST
