Stereo Component Amplifier ASSY: Replacement

HINT:

• SEE: COMPONENTS .
• SEE: LOCATION .
• Installation is in the reverse order of removal.

1. REMOVE LUGGAGE COMPARTMENT FLOOR MAT (SEE  REPLACEMENT  )
2. REMOVE DECK TRIM SIDE BOARD RH (SEE  REPLACEMENT  )
3. REMOVE REAR FLOOR FINISH PLATE (SEE  REPLACEMENT  )
4. SEPARATE LUGGAGE COMPARTMENT TRIM COVER FRONT (SEE  REPLACEMENT  )
5. REMOVE LUGGAGE COMPARTMENT TRIM COVER ASSY RH (SEE  REPLACEMENT  )
6. REMOVE TELEVISION CAMERA ECU (W/ TELEVISION CAMERA) (SEE  TELEVISION CAMERA ECU  )
   Fig 1: Disengaging Clips And Removing Stereo Component Amplifier Assy With Bracket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   Fig 2: Removing Screws And Brackets

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE STEREO COMPONENT AMPLIFIER ASSY W/BRACKET
   1. Disconnect the connector.
   2. Remove the 2 nuts.
   3. Disengage the 2 clips and remove the stereo component amplifier assy with bracket.
8. REMOVE STEREO COMPONENT AMPLIFIER ASSY

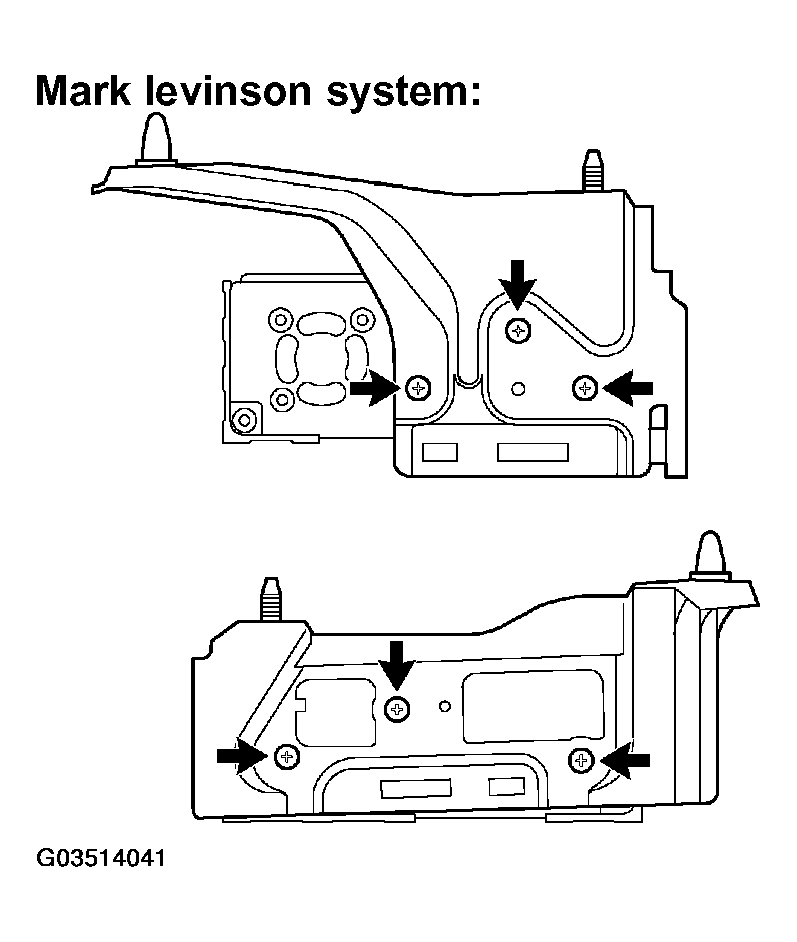

   1. Mark levinson system: Remove the 6 screws and 2 brackets.
      Fig 3: Removing Screws And Brackets

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

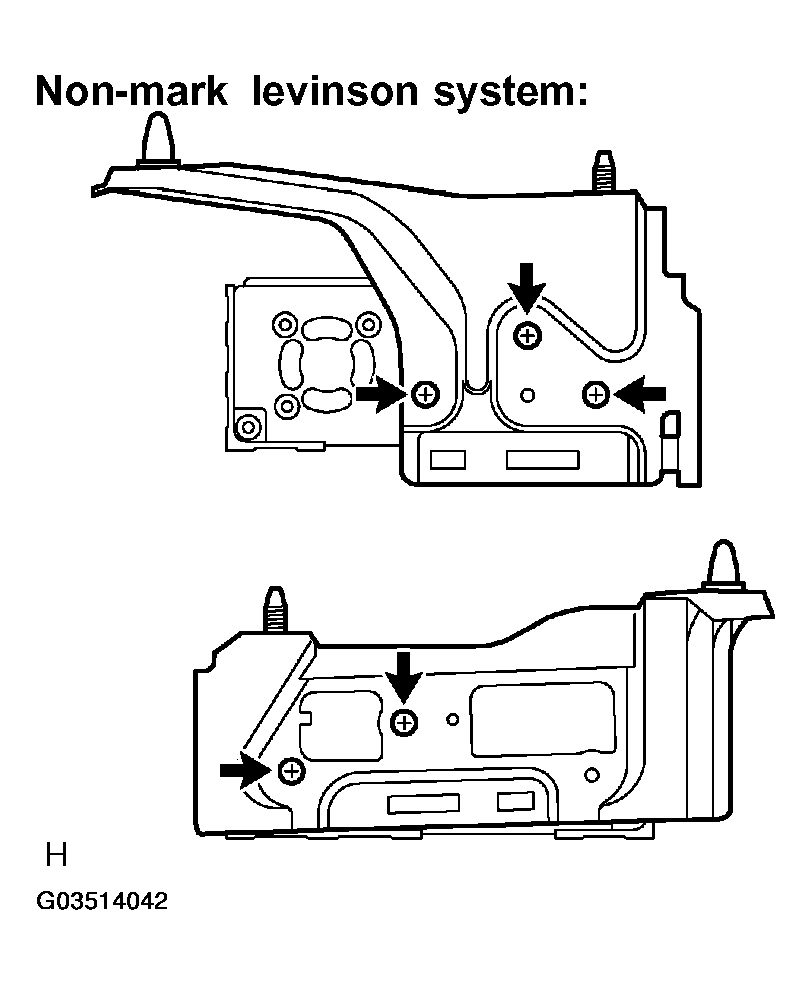

   2. Non-mark levinson system: Remove the 5 screws and 2 brackets.
