Section 382 (Wiper & Washer System): Inspection

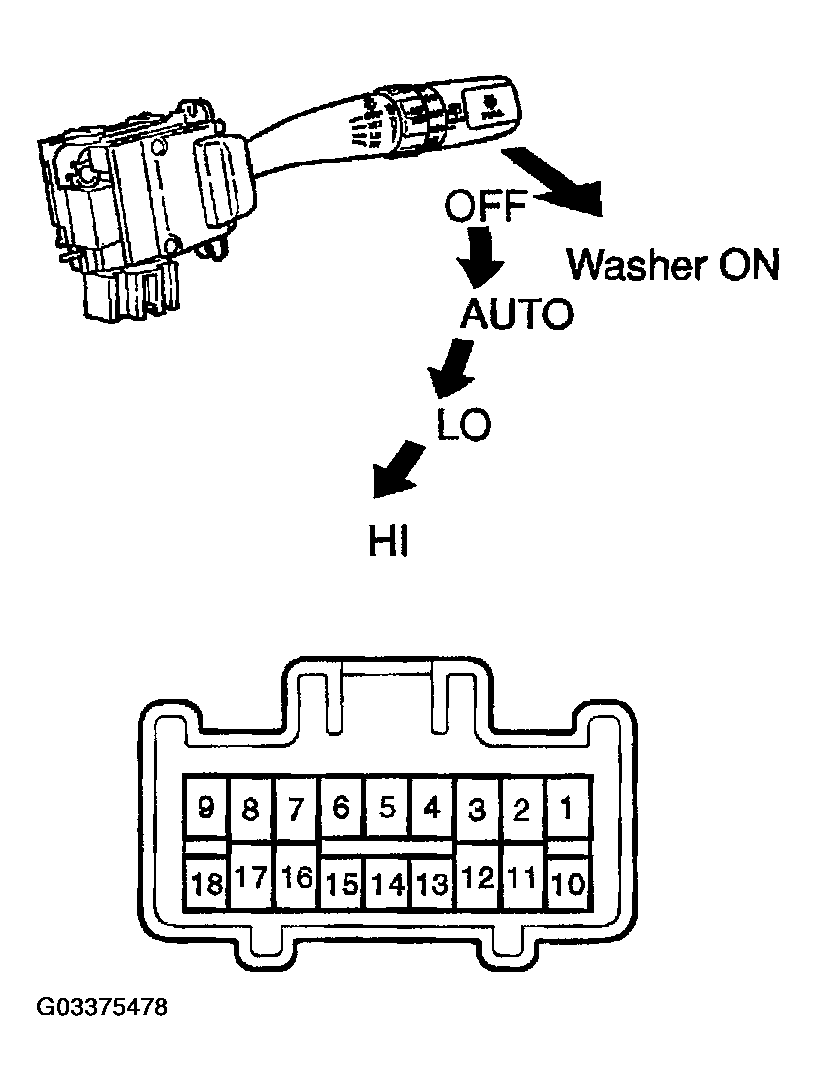

- INSPECT FRONT WIPER AND WASHER SWITCH CONTINUITY SWITCH POSITION SPECIFIED CONDITION CHART
Switch position Tester connection Specified condition OFF 7-16 Continuity AUTO 7-16,4-14 Continuity LO 7-17 Continuity HI 8-17 Continuity Washer OFF - No continuity Washer ON 2-11 Continuity If continuity is not as specified, replace the switch.
- INSPECT FRONT WIPER AND WASHER SWITCH CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown.
SWITCH POSITION SPECIFIED CONDITION CHARTTester connection Condition Specified condition 2 - Ground Always Continuity 11 -Ground Ignition switch LOCK or ACC No voltage 11 -Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT FRONT WIPER INTERMITTENT OPERATION
- Turn the wiper switch to INT position.
- Turn the intermittent time control switch to FAST position.
- Connect the battery positive (+) lead to terminal 16 and the battery negative (-) lead to terminal 2.
- Connect the voltmeter positive (+) lead to terminal 7 and the voltmeter negative (-) lead to terminal 2, and check that the meter needle indicates battery voltage.

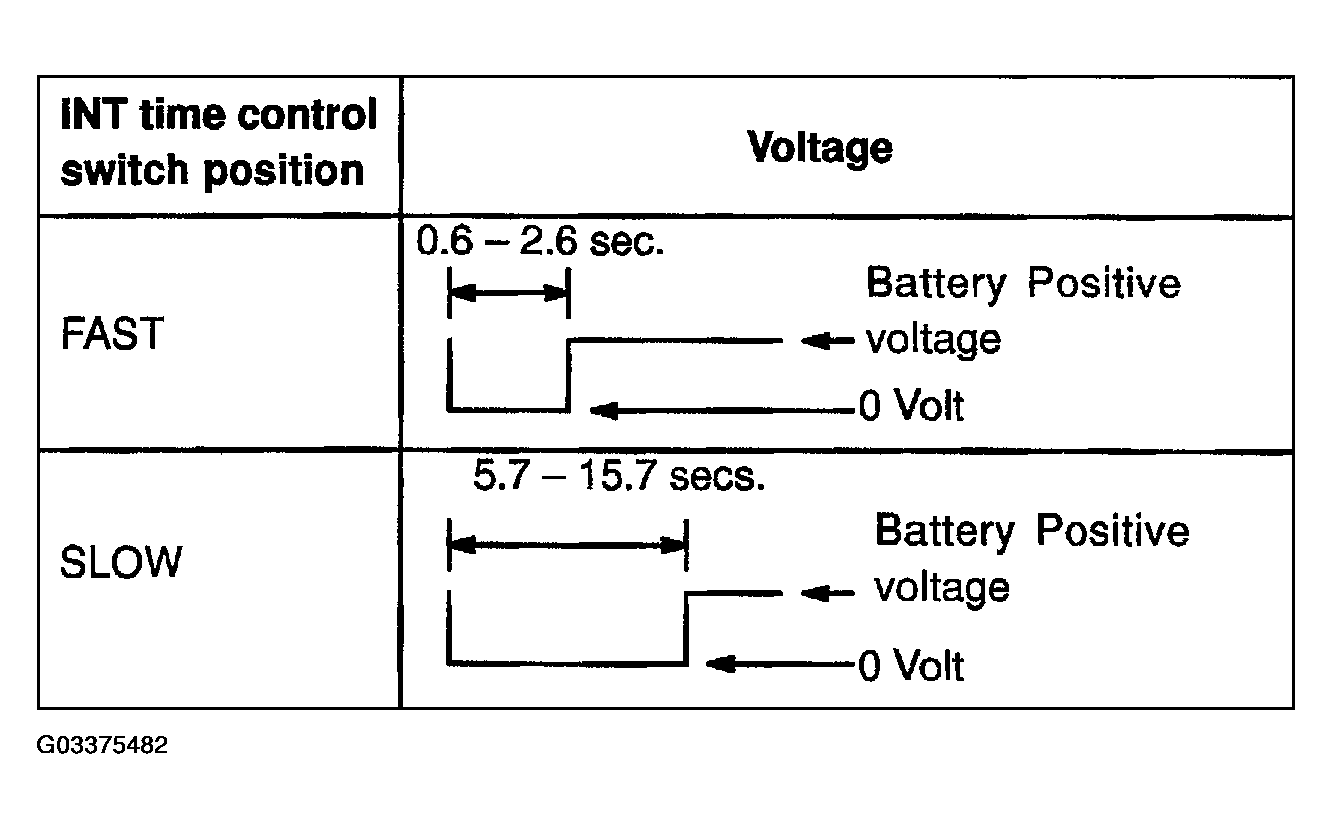

- After connecting terminal 16 to terminal 17, connect to terminal 2 to terminal 17, check the voltage rises from 0 volts to battery voltage within the times as shown in the table.
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
If operation is not as specified, replace the wiper and washer switch.

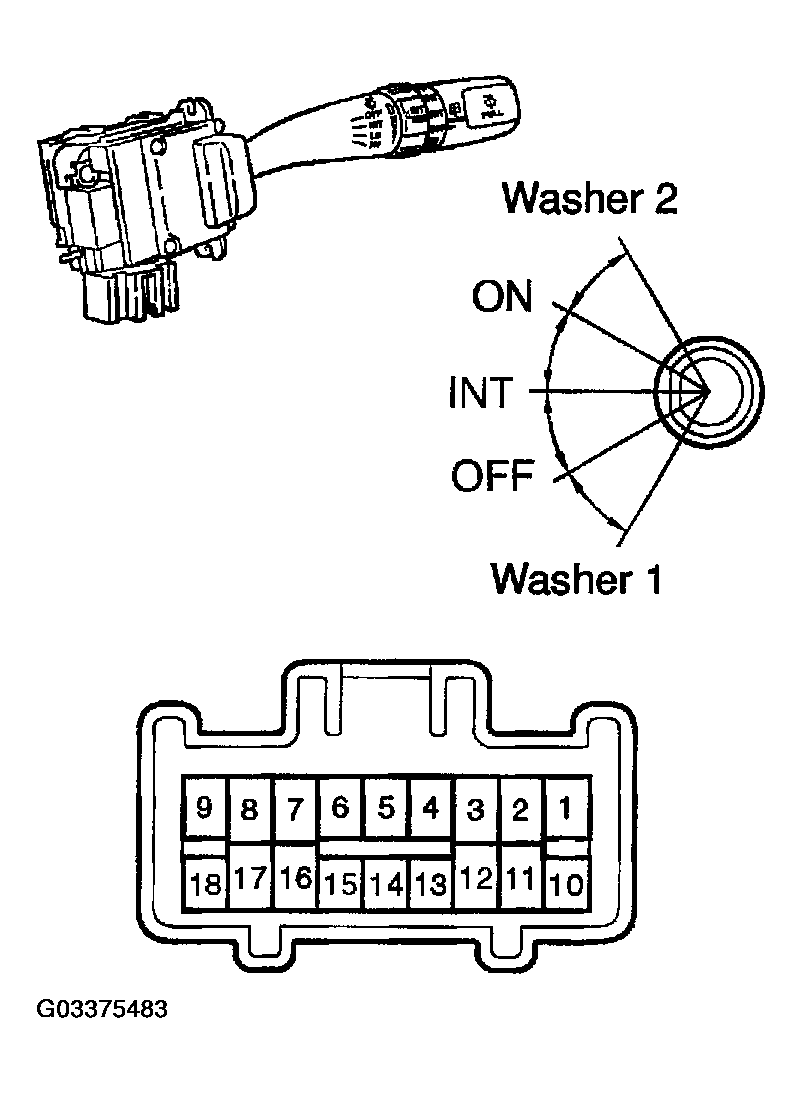

- INSPECT REAR WIPER AND WASHER SWITCH CONTINUITY SWITCH POSITION SPECIFIED CONDITION CHART
Switch position Tester connection Specified condition Washer 1 2-12 Continuity OFF - No Continuity INT 2-13 Continuity ON 2-10 Continuity Washer 2 2-10-12 Continuity If continuity is not as specified, replace the switch.
- INSPECT REAR WIPER AND WASHER SWITCH CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown.
SWITCH POSITION SPECIFIED CONDITION CHARTTester connection Condition Specified condition 2 - Ground Always Continuity 12-Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the circuits connected to other parts.
- Low Speed: INSPECT FRONT WIPER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 5, and check that the motor operates at low speed.
If operation is not as specified, replace the motor.
- High speed: INSPECT FRONT WIPER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 4 and the battery negative (-) lead to terminal 5, and check that the motor operates at high speed.
If operation is not as specified, replace the motor.
- Stopping at Stop Position: INSPECT FRONT WIPER MOTOR OPERATION
- Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting the battery positive (+) lead from terminal 1.
- Connect terminals 1 and 3.
- Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 5, and check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT FRONT WIPER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown.
SWITCH POSITION SPECIFIED CONDITION CHARTTester connection Condition Specified condition 5 - Ground Always Continuity 2 - Ground Ignition switch LOCK or ACC No voltage 2 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the circuits connected to other parts.
- Low Speed: INSPECT REAR WIPER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 3 and the battery negative (-) lead to terminal 2, and check that the motor operates at low speed.
If operation is not as specified, replace the motor.
- Stopping at Stop Position: INSPECT REAR WIPER MOTOR OPERATION
- Operate the motor at low speed and stop the motor operation anywhere except at the stop position by disconnecting positive (+) lead from terminal 3.
- Connect terminals 3 and 4.
- Connect the battery positive (+) lead to terminal 1 and the battery negative (-) lead to terminal 2, and check that the motor stops running at the stop position after the motor operates again.
If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT REAR WIPER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown.
SWITCH POSITION SPECIFIED CONDITION CHARTTester connection Condition Specified condition 1 - Ground Ignition switch OFF or ACC No voltage 1 - Ground Ignition switch ON Battery positive voltage 2 - Ground Always Continuity 3-4 Always Continuity If circuit is not as specified, inspect the circuits connected to other parts.
- INSPECT FRONT WASHER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, check that the motor operates.
NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT FRONT WASHER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown.
SWITCH POSITION SPECIFIED CONDITION CHARTTester connection Condition Specified condition 2-Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the power source and wire harness.
- INSPECT REAR WASHER MOTOR OPERATION
Connect the battery positive (+) lead to terminal 2 and the battery negative (-) lead to terminal 1, check that the motor operates.
NOTE: These tests must be performed quickly (within 20 seconds) to prevent the coil from burning out.If operation is not as specified, replace the motor.
- Connector disconnected: INSPECT REAR WASHER MOTOR CIRCUIT
Disconnect the connector from the motor and inspect the connector on the wire harness side, as shown.
SWITCH POSITION SPECIFIED CONDITION CHARTTester connection Condition Specified condition 2 - Ground Ignition switch ON Battery positive voltage If circuit is not as specified, inspect the power source, the wire harness and the wiper switch.
- INSPECT REAR WIPER RELAY OPERATION (See PROBLEM SYMPTOMS TABLE )
- INSPECT REAR WIPER RELAY INTERMITTENT OPERATION (See PROBLEM SYMPTOMS TABLE )
