Section 338 (Air Conditioning System)
>>
Air Conditioning Radiator ASSY
>>
Components
Air Conditioning Radiator ASSY: Components
WARNING:
This page is about a different car, the 2004 Lexus SC 430. However, it is still accessible from the selected car via links, so may be relevant.

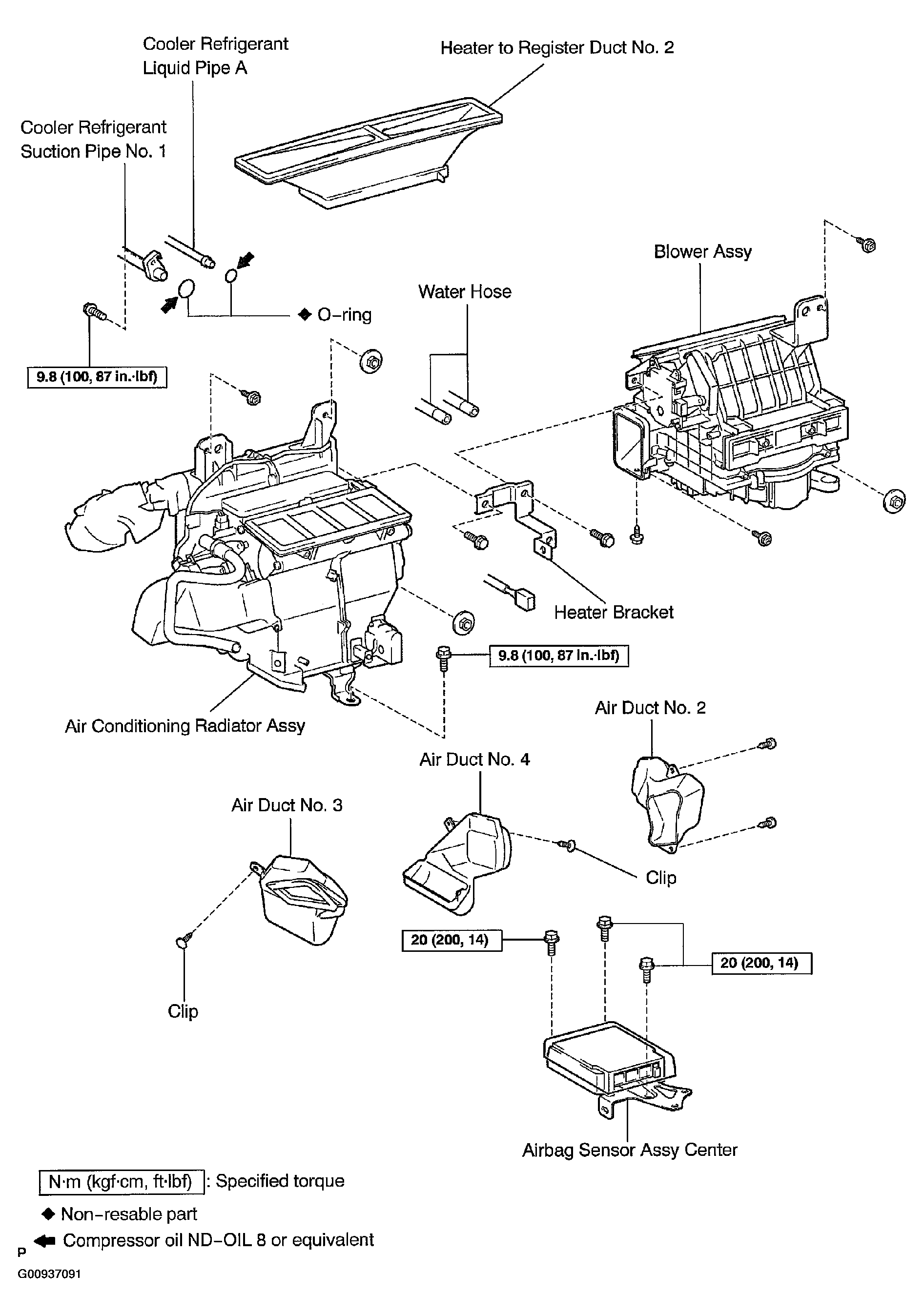

Fig 1: Identifying Components Of Air Conditioning Radiator Assy (1 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

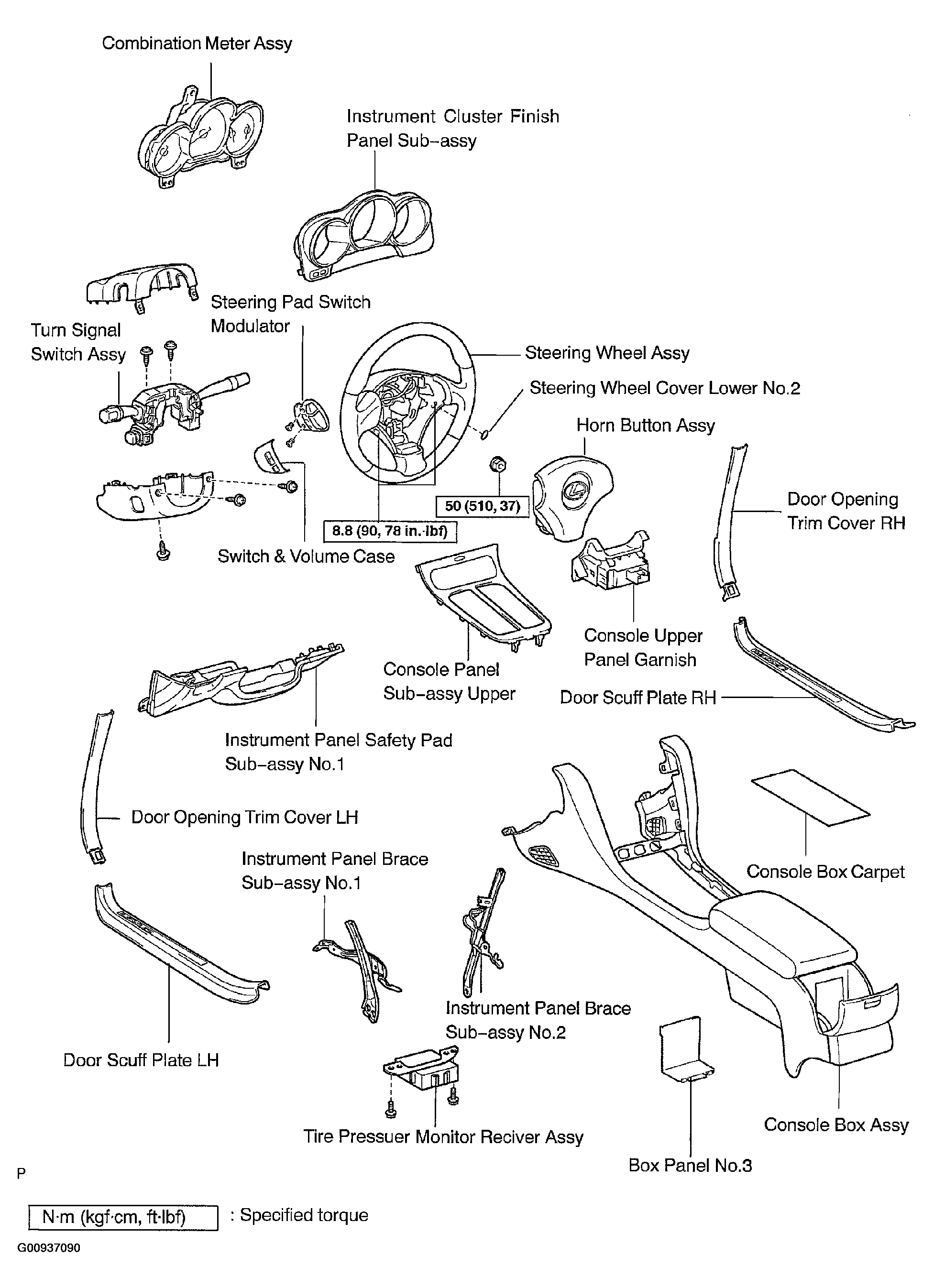

Fig 2: Identifying Components Of Air Conditioning Radiator Assy (2 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

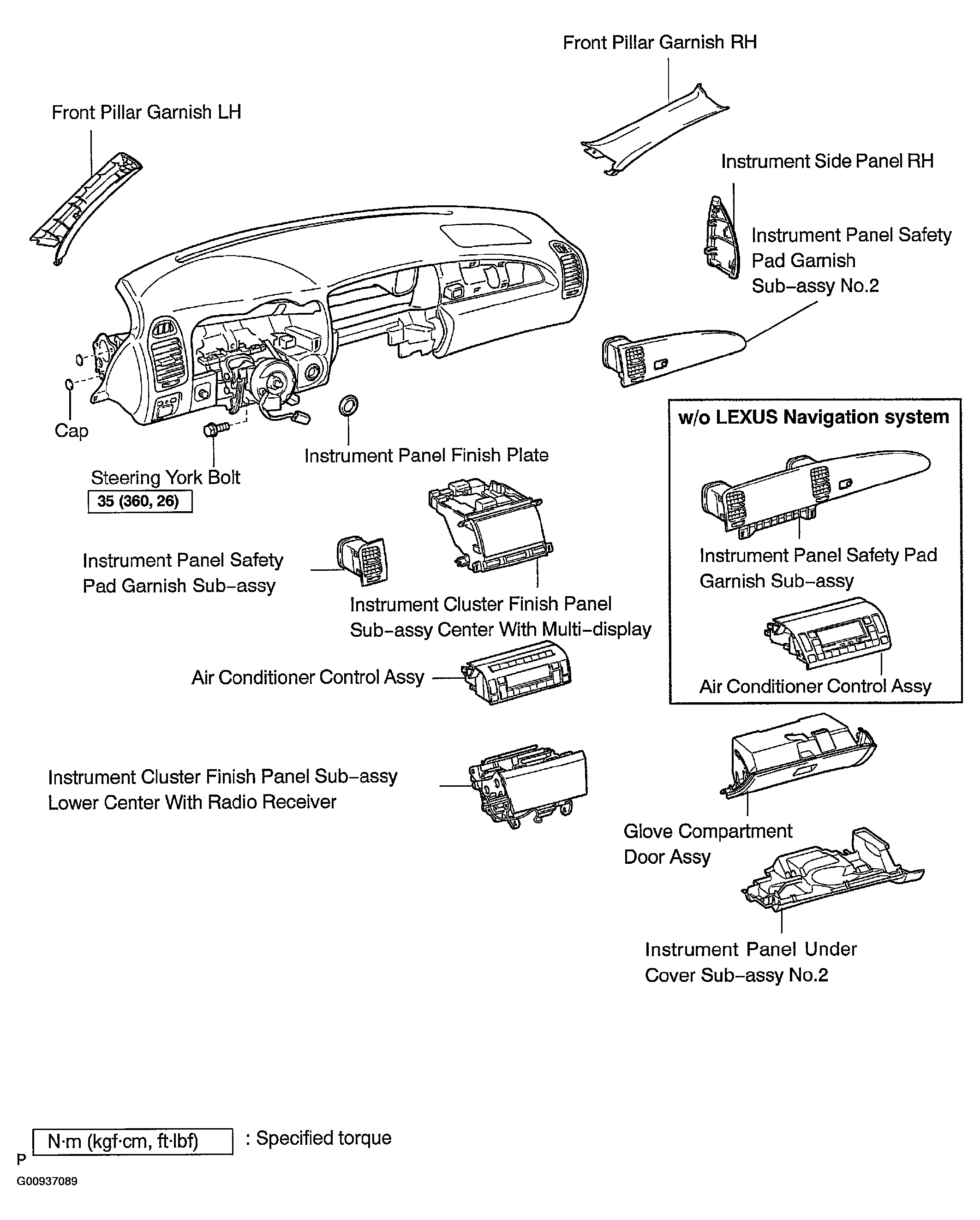

Fig 3: Identifying Components Of Air Conditioning Radiator Assy (3 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

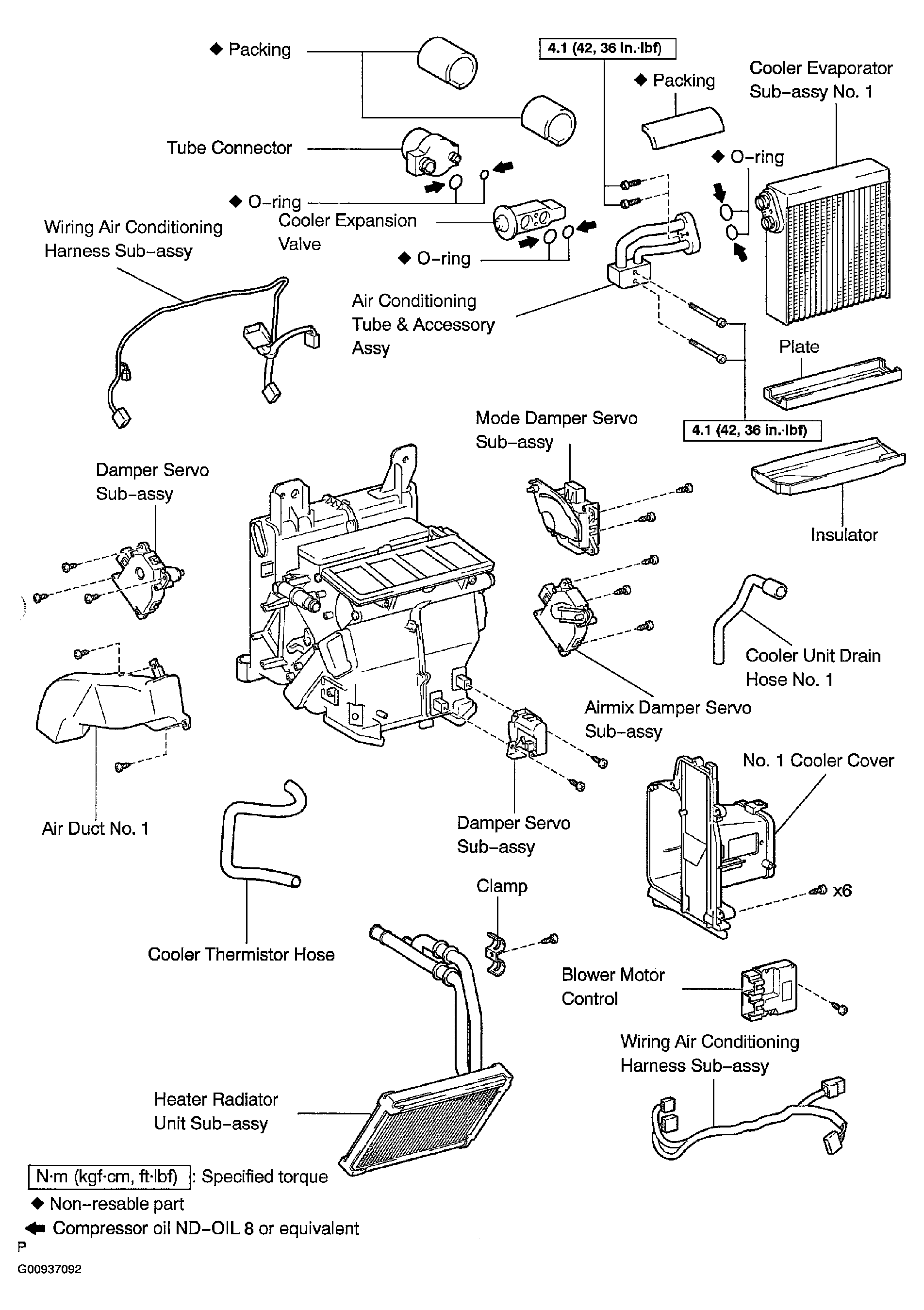

Fig 4: Identifying Components Of Air Conditioning Radiator Assy (4 Of 4)
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
