Cooler Condenser ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

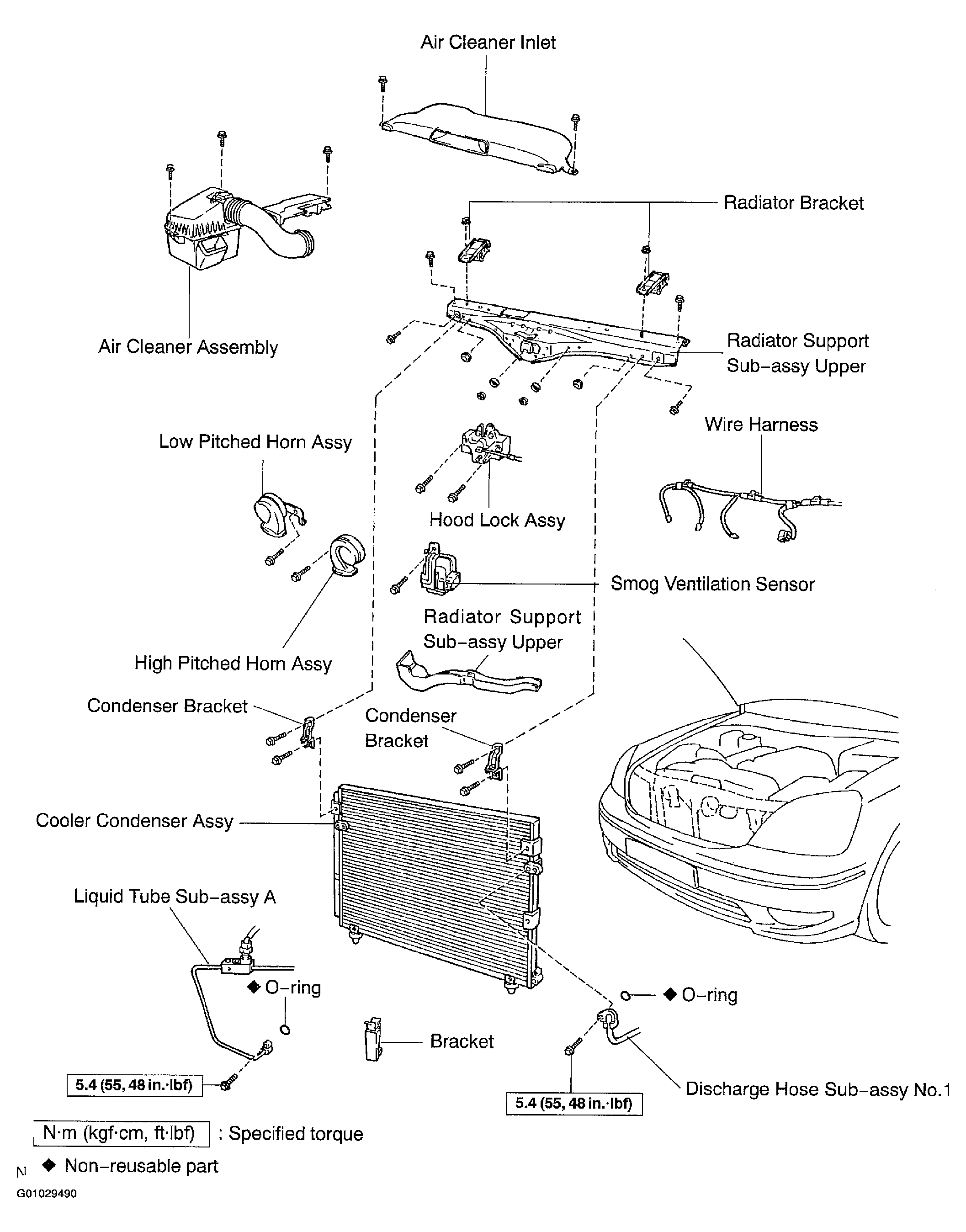

Fig 1: Identifying Components - Cooler Condenser Assy (1 Of 2)
G01029490Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

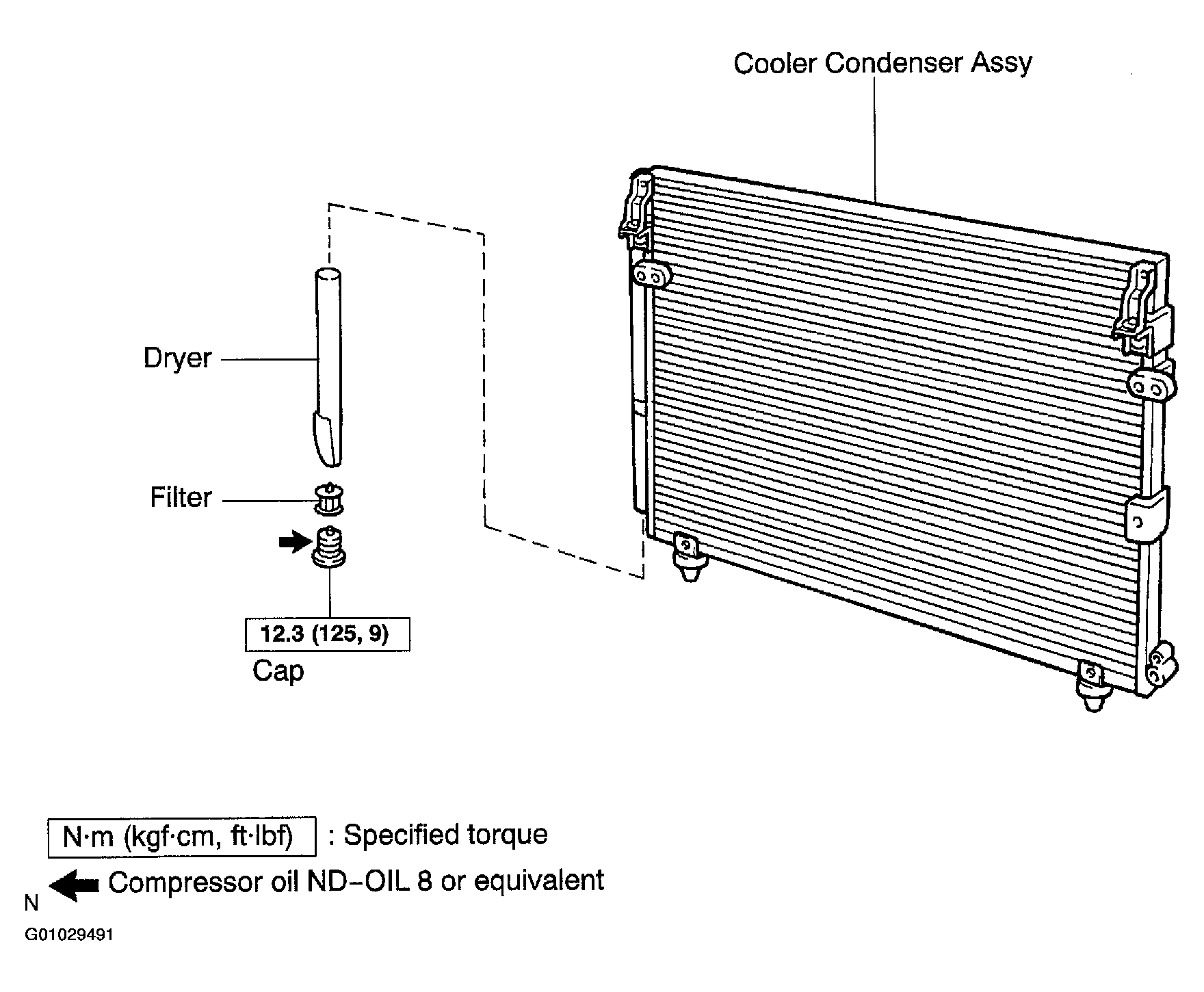

Fig 2: Identifying Components - Cooler Condenser Assy (2 Of 2)
G01029491Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
