Air Conditioning Panel Sub-ASSY: Replacement

HINT:

• Installation is in the reverse order of removal.
• COMPONENTS: See COMPONENTS .

1. RESTORE SHIP MODE SETTING (W/CD CHANGER) (SEE  PRECAUTION  )
2. REMOVE INSTRUMENT PANEL FINISH PANEL LOWER CENTER (SEE  REPLACEMENT  )
3. REMOVE PANEL INSTRUMENT CLUSTER FINISH LOWER (SEE  REPLACEMENT  )
4. REMOVE RADIO RECEIVER ASSEMBLY W/BRACKET (SEE  REPLACEMENT  )
5. CONFIRM SHIP MODE (W/CD CHANGER) (SEE  PRECAUTION  )

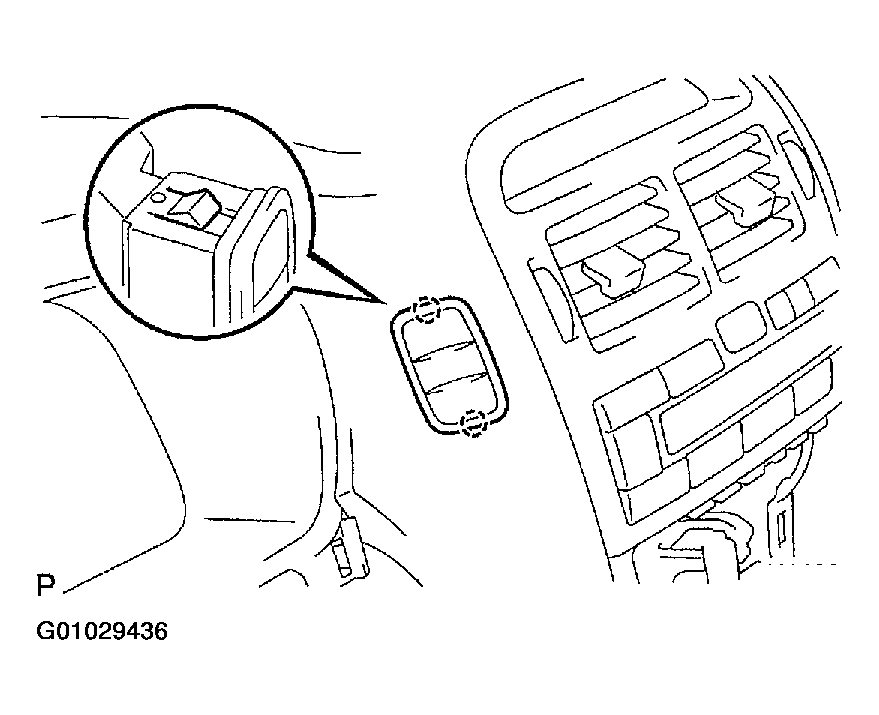

6. REMOVE TEMPERATURE CONTROL SWITCH ASSY
   1. Using a screwdriver, release the 2 claws and remove the temperature control switch.

      HINT:

      Tape the screwdriver tip before use.

   2. Employ the same manner described above to the other side.
   3. Disconnect the connectors.
      Fig 1: Removing Temperature Control Switch

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
7. REMOVE INTEGRATION CONTROL & PANEL ASSY
   1. Remove the 2 bolts.
      Fig 2: Removing Bolts

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
   2. Release the 4 claws and remove the integration control & panel assy.
      Fig 3: Removing Integration Control & Panel Assy

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
8. REMOVE HEATER CONTROL BASE BRACKET No. 1
   1. Remove the 4 screws and 2 heater control base brackets No. 1.
      Fig 4: Locating Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

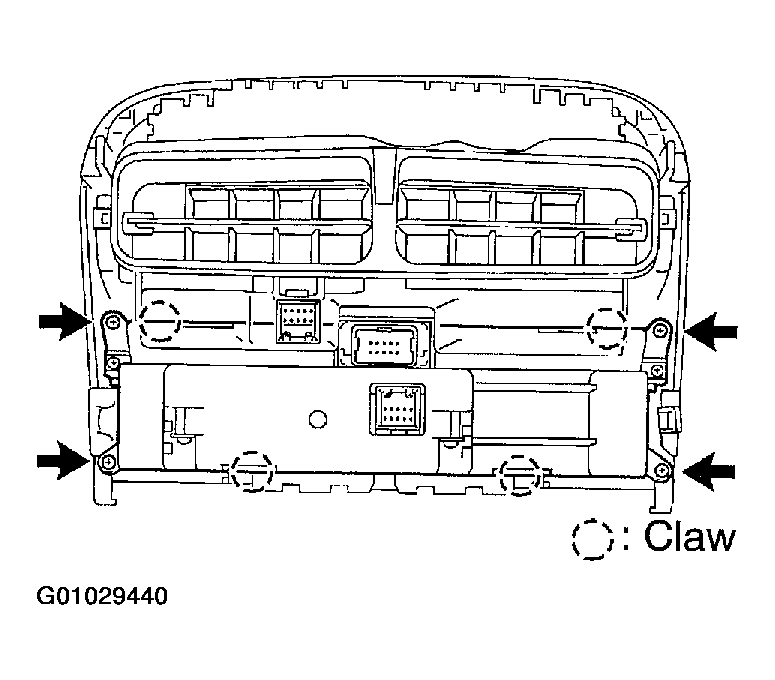

9. REMOVE AIR CONDITIONER CONTROL ASSEMBLY
   1. Disconnect the connector.
   2. Remove the 4 screws, release the 4 claws and remove the air conditioner control assembly.
      Fig 5: Locating Screws

      Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
10. REMOVE HEATER CONTROL HOUSING
    1. Remove the 2 screws release the 4 claws and remove the heater control housing.
       Fig 6: Locating Screws

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
11. REMOVE HEATER CONTROL BULB
    1. Using a screwdriver, turn the bulbs to the left and pull out the bulbs.
       Fig 7: Removing Heater Control Bulb

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
12. REMOVE HEATER CONTROL BASE SUB-ASSY
    1. Release the 4 claws and remove the heater control base.
       Fig 8: Removing Heater Control Base Sub-Assy

       Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
13. REMOVE AIR CONDITION PANEL SUB-ASSY
