Exhaust Pipe ASSY: Components

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

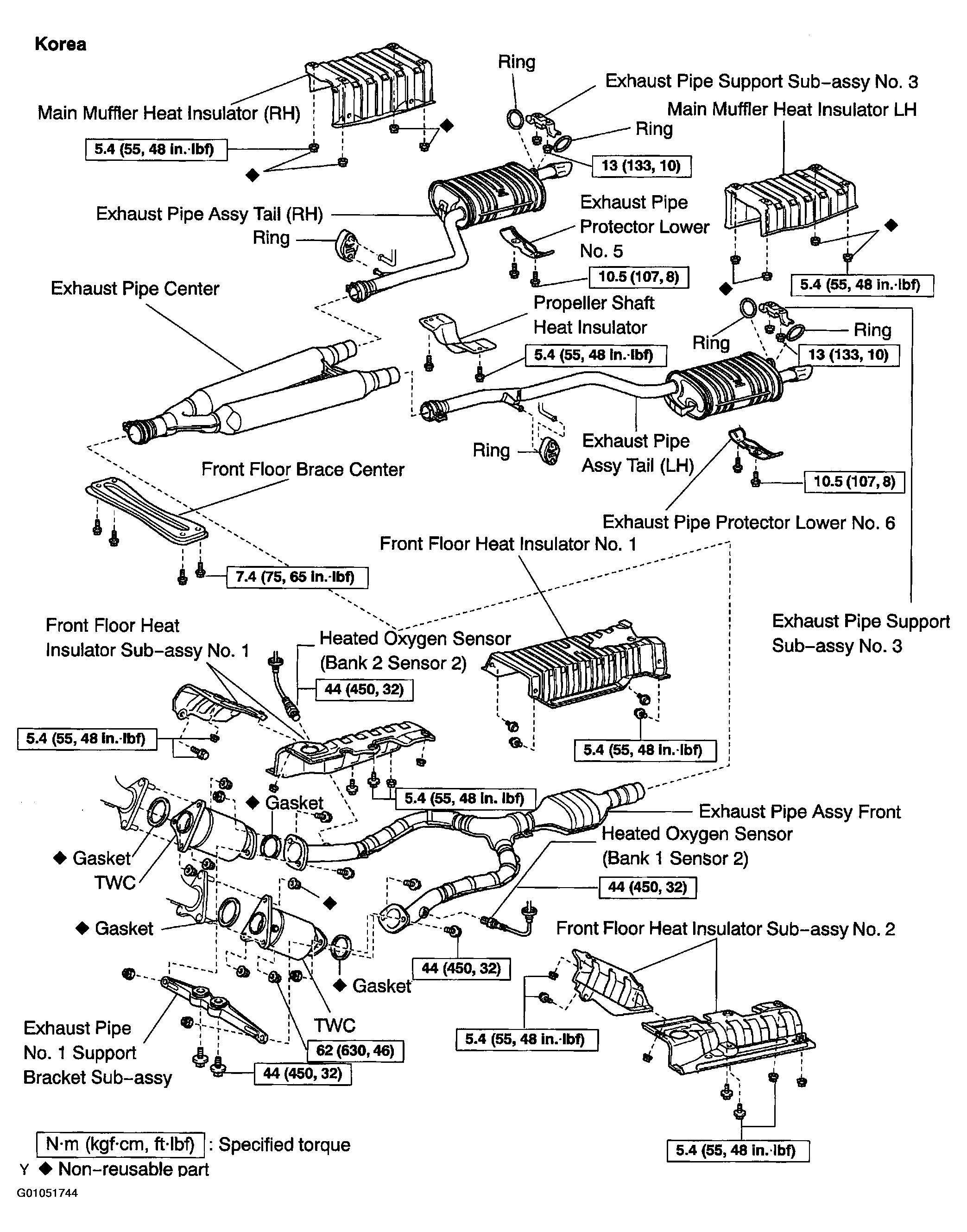

Fig 1: Exploded View Of Exhaust Pipe Assy Components(1 Of 2)
G01051744Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

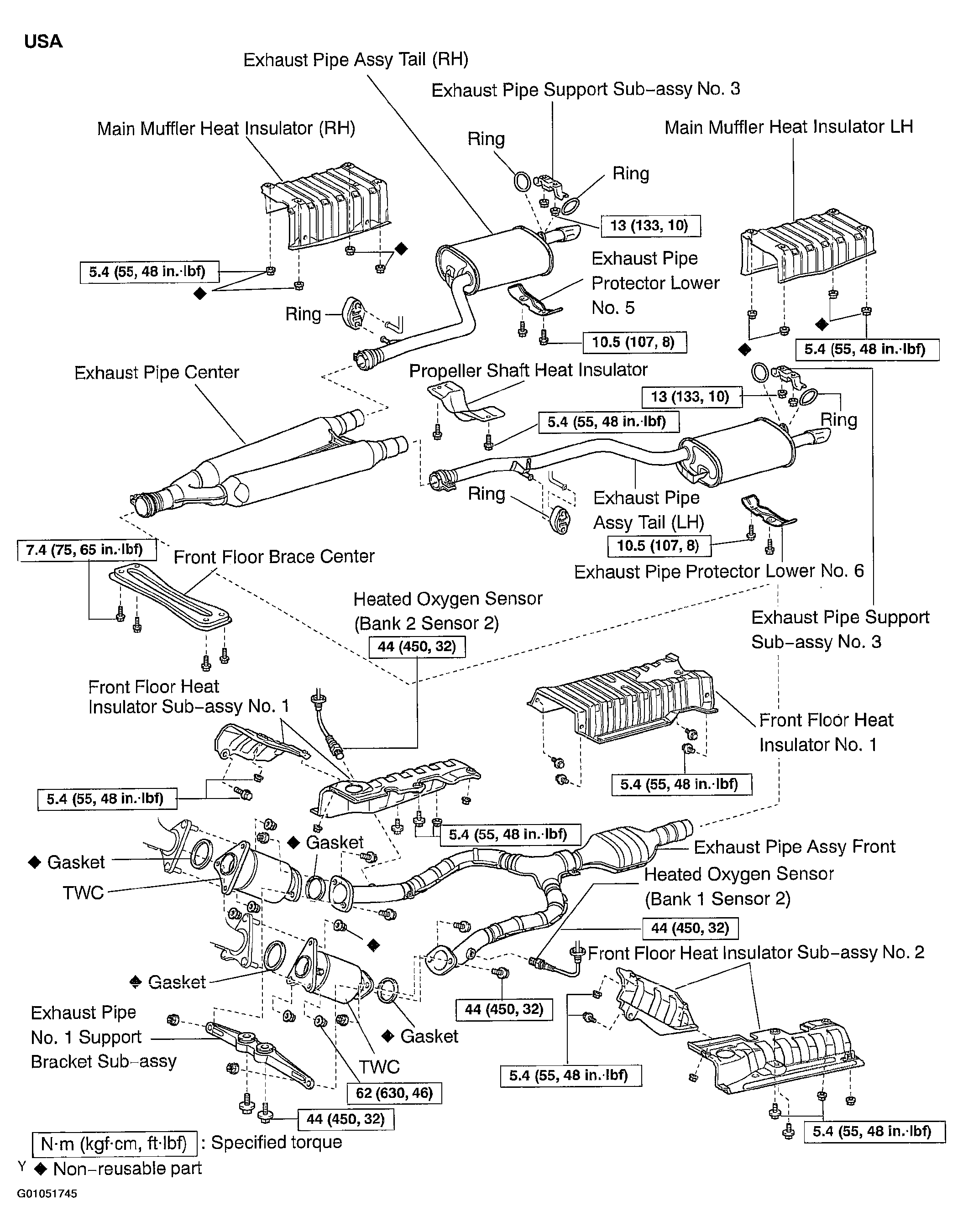

Fig 2: Exploded View Of Exhaust Pipe Assy Components(2 Of 2)
G01051745Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
