Drive Belt: Replacement

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE AIR CLEANER INLET NO. 1
  2. REMOVE FAN AND GENERATOR V BELT
    1. Loosen the belt tension by turning the belt tensioner counterclockwise, and remove the V belt.

      HINT:

      The tension pulley has a left-hand thread.

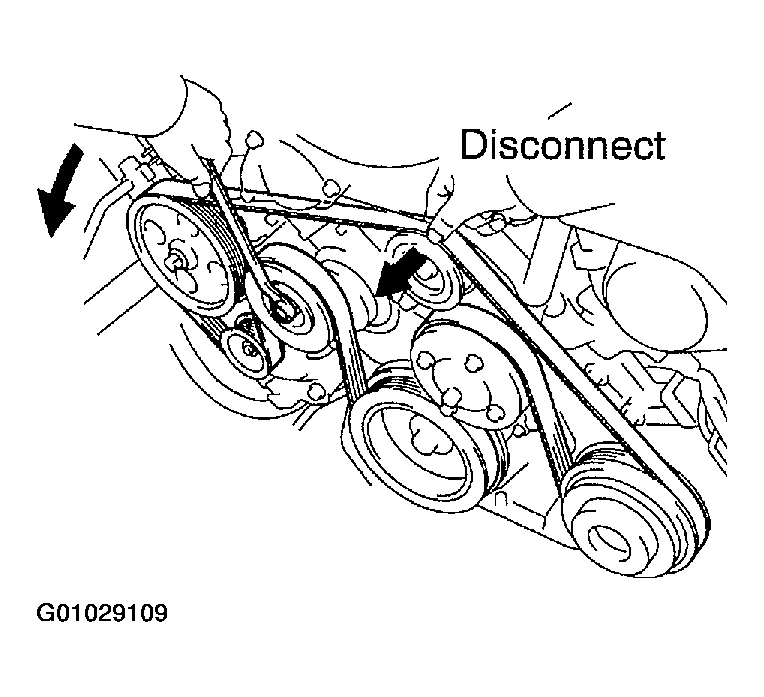

      Fig 1: Removing Fan And Generator V Belt
      G01029109Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  3. INSTALL FAN AND GENERATOR V BELT
    1. Set the V belt to everything except the idler pulley No. 2, as shown in the illustration.
    2. Loosen the V belt by turning the belt tensioner counterclockwise.
    3. Then set the V belt to the idler pulley.
      Fig 2: Installing Fan And Generator V Belt
      G01029110Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    4. After a new belt has been installed, check that the mark is within range B as shown in the illustration.

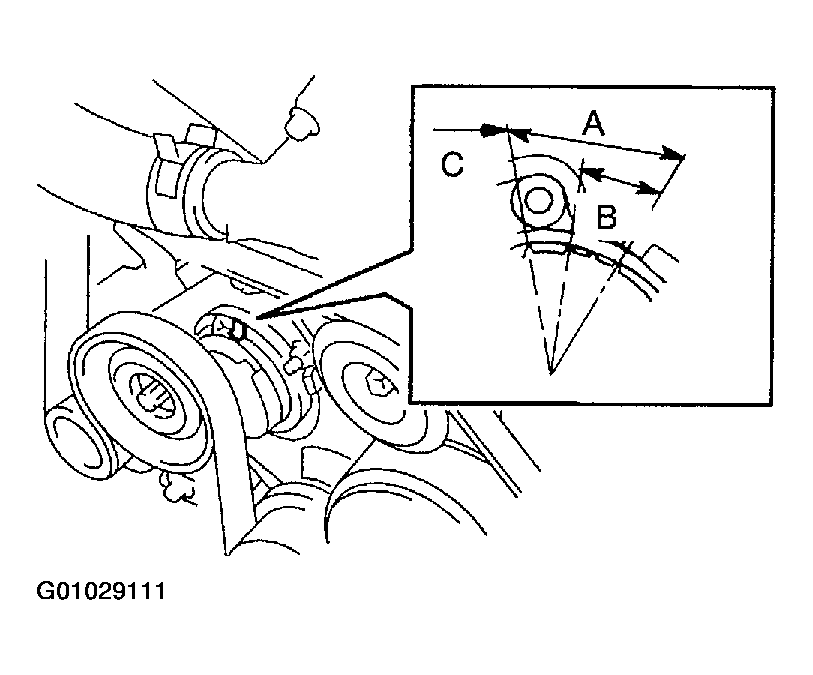

      Fig 3: Checking Identification Mark
      G01029111Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
  4. INSTALL AIR CLEANER INLET NO. 1
