Section 203 (LEXUS Navigation System - Diagnosis): Location

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

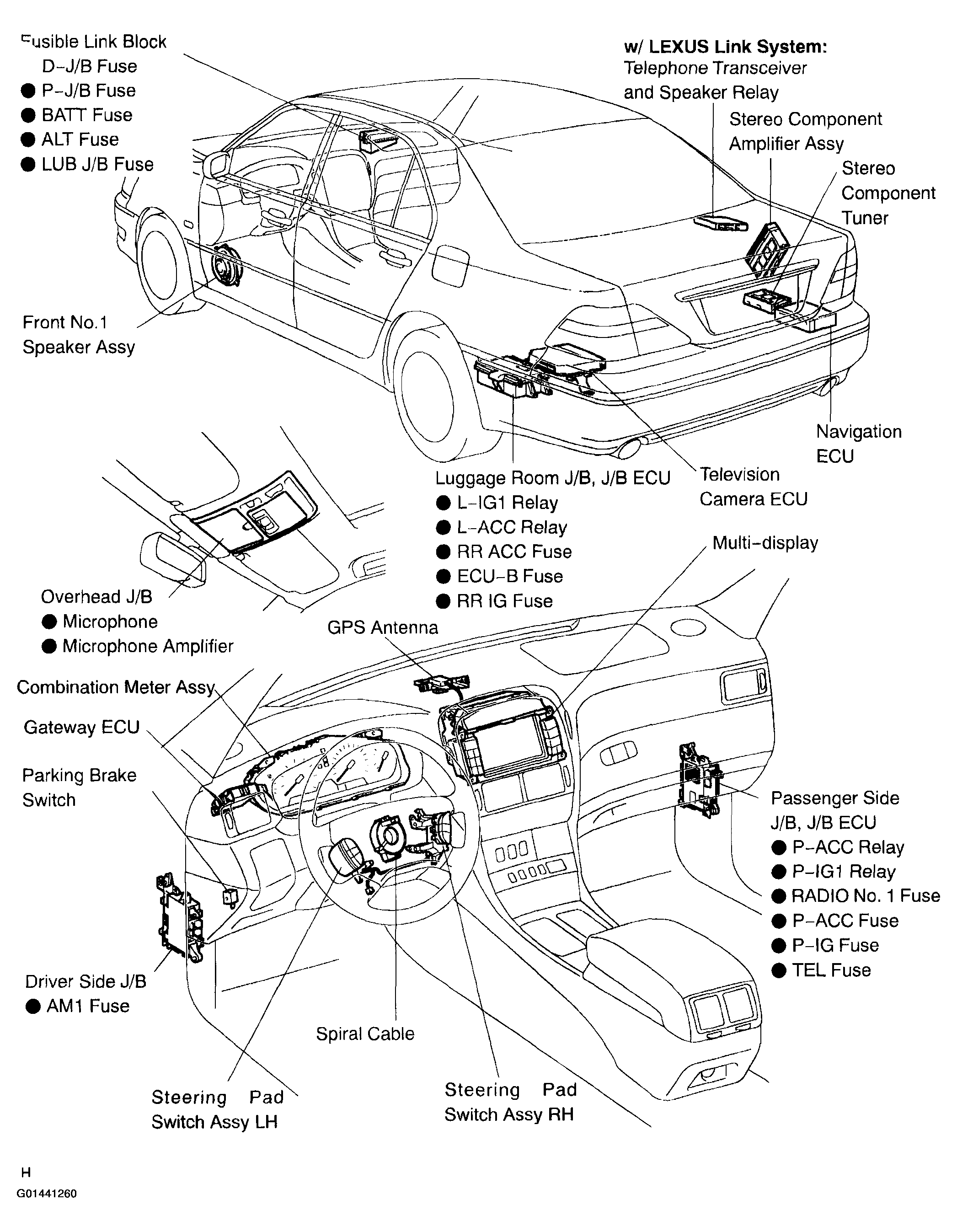

Fig 1: Identifying Lexus Navigation System Components Location
G01441260Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
