Diagnostic Start-Up/Finish

HINT:

• Illustrations may differ from the actual vehicle depending on the device settings and options. Therefore, some detailed areas may not be shown exactly the same as on the actual vehicle.
• After the ignition switch is turned on, check that the map is displayed before starting the diagnostic mode. Otherwise, some items cannot be checked.

1. There are 2 methods to start diagnostic mode. Start the mode by using one of them.
2. Method 1
   1. Start the engine.
   2. While pressing and holding "OPTION" switch, operate light control switch, OFF --> Turn ON --> Turn OFF --> Turn ON --> Turn OFF --> Turn ON --> Turn OFF.
   3. The diagnostic mode starts and the service check screen ("System Check Mode") will be displayed. Service inspection starts automatically and the result will be displayed.

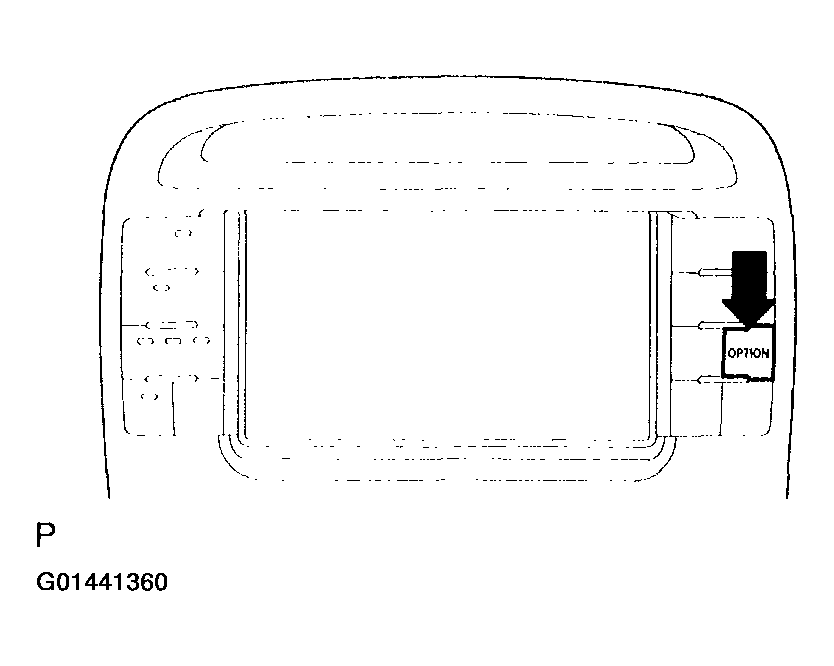

   Fig 1: Identifying Display

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Method 2
   1. Start the engine.
   2. Switch to the "Display Check" screen.
   3. From the display adjustment screen, touch the corners of the screen in the following order: upper left --> lower I --> upper left --> lower left --> upper left --> lower left.
   4. The diagnostic mode starts and "Service Check" screen will be displayed. Service inspection starts automatically and the result will be displayed.

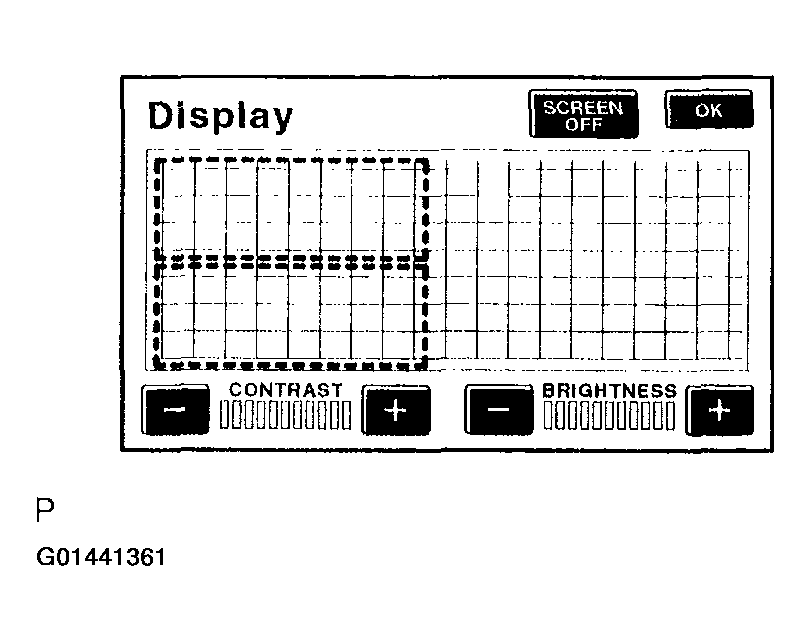

   Fig 2: Identifying Multi-Display - Display Check

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Diagnosis MENU
5. Diagnostic screen will be displayed by pressing the menu switch on the service check screen.

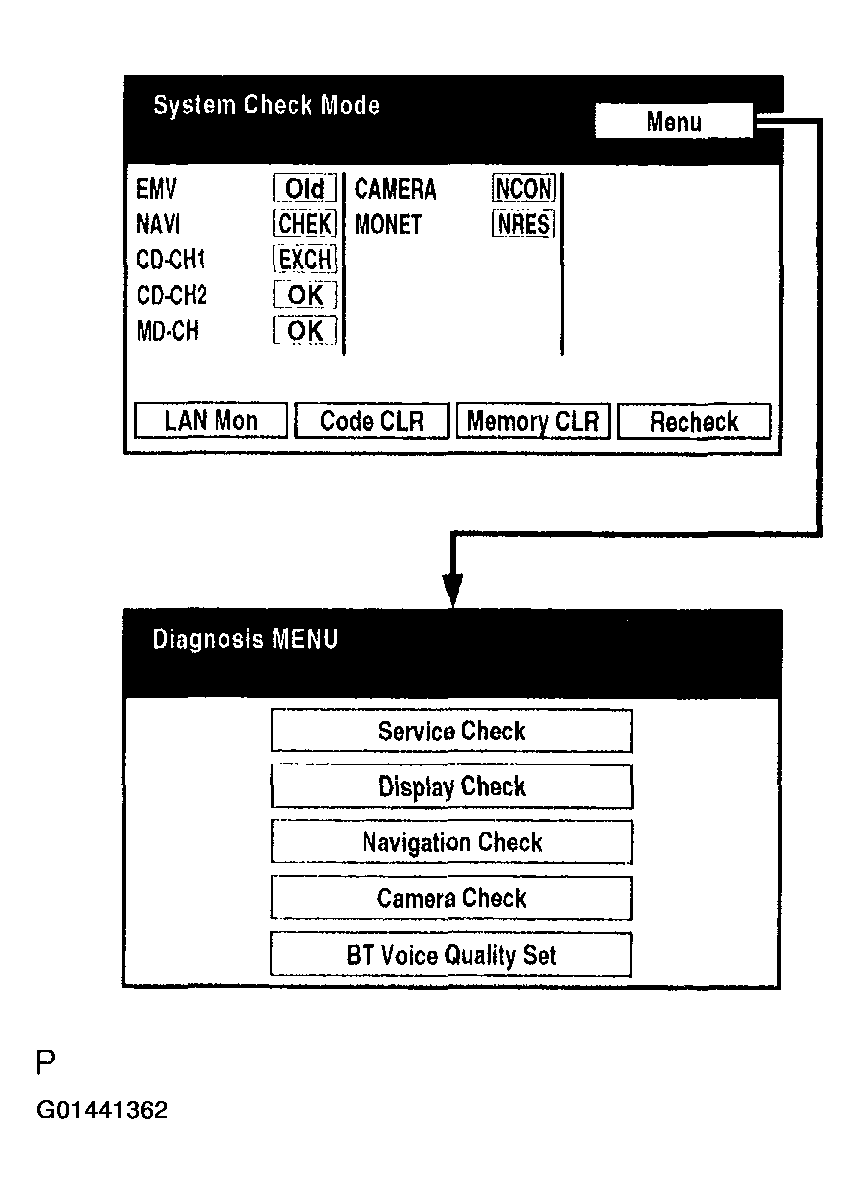

   Fig 3: Identifying Multi-Display - Diagnosis Menu

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
6. There is a method to exit.
   1. Turn the ignition switch off.
