Component Operating Range

WARNING: This page is about a different car, the 2004 Lexus LS 430. However, it is still accessible from the selected car via links, so may be relevant.

P0705:

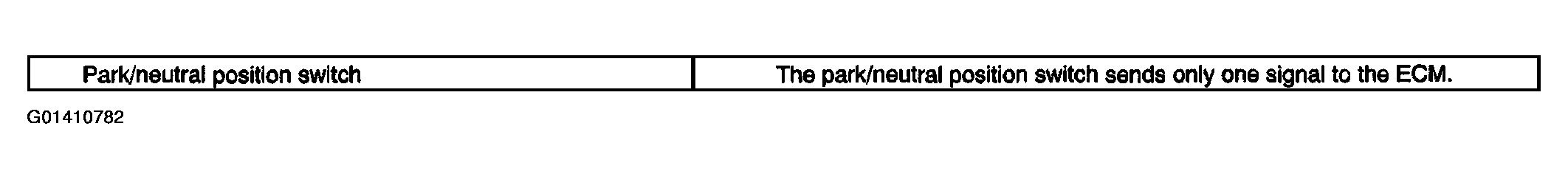

Fig 1: P0705 Operating Range Chart
G01410782Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

P0850:

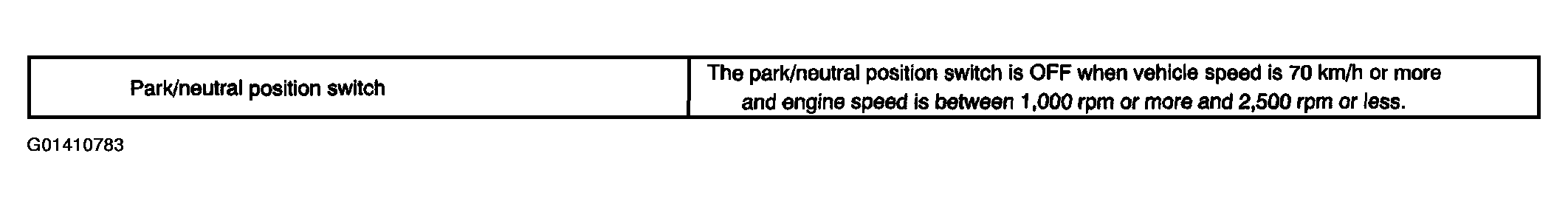

Fig 2: P0850 Operating Range Chart
G01410783Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
