Refrigerant Line: Components

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

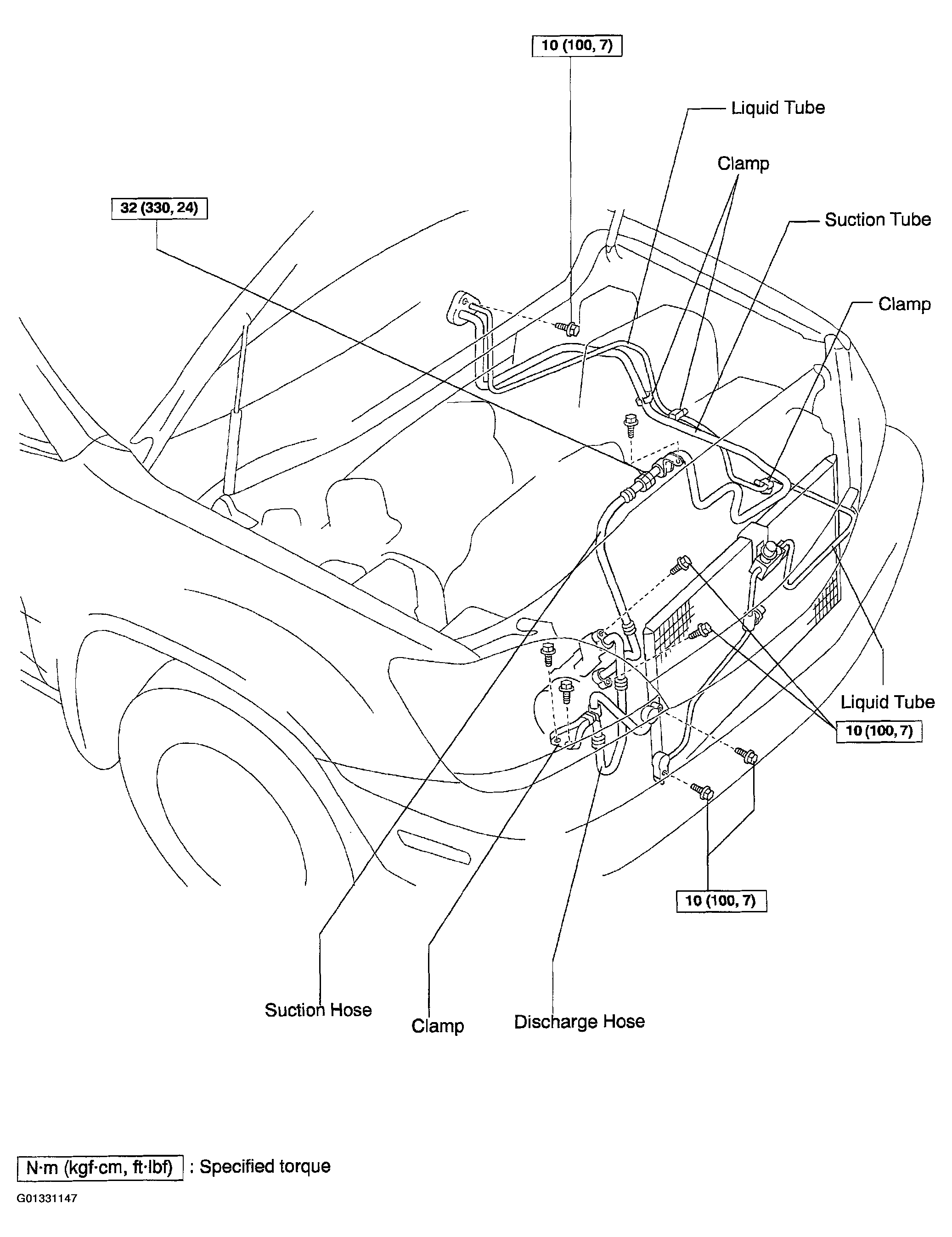

Fig 1: Locating Refrigerant Line Components And Torque Specifications
G01331147Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
