Blower Unit: Removal

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.
  1. REMOVE THESE PARTS:
    1. Cowl side trim RH
    2. Front door scuff plate RH
    3. No.2 under cover
    4. Lower No.2 panel
    5. w/CD Auto Changer: CD changer assembly
    6. Front passenger airbag assembly (See REMOVAL & INSTALLATION )
  2. REMOVE BLOWER UNIT

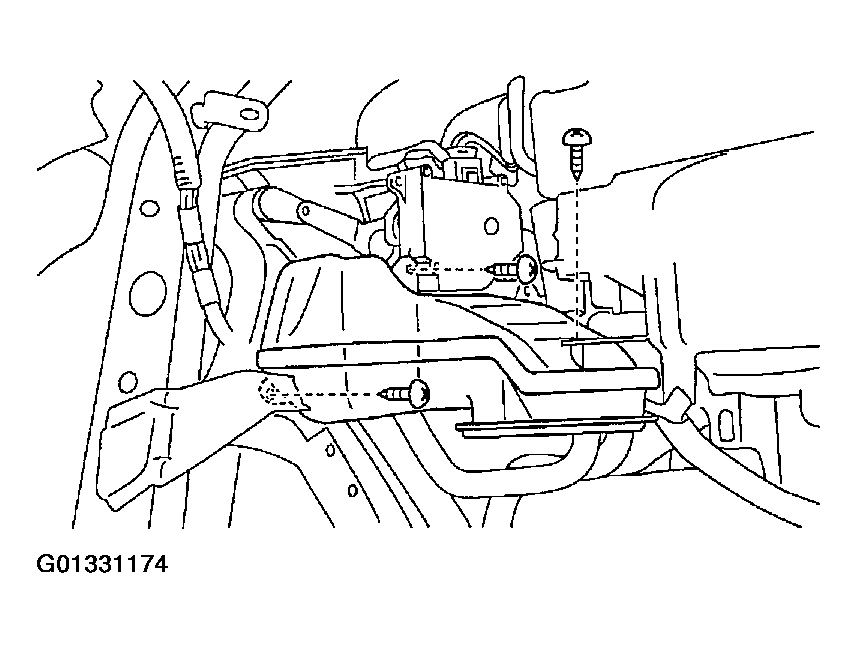

    1. Remove the 3 screws and air duct.
      Fig 1: Removing Air Duct
      G01331174Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    2. Disconnect the connectors.
    3. Disconnect wire harness clamp.
    4. Remove the 2 nuts, 2 bolts, screw and blower unit.
    Fig 2: Removing Blower Unit
    G01331175Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
