Blower Unit: Components

WARNING: This page is about a different car, the 2003 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

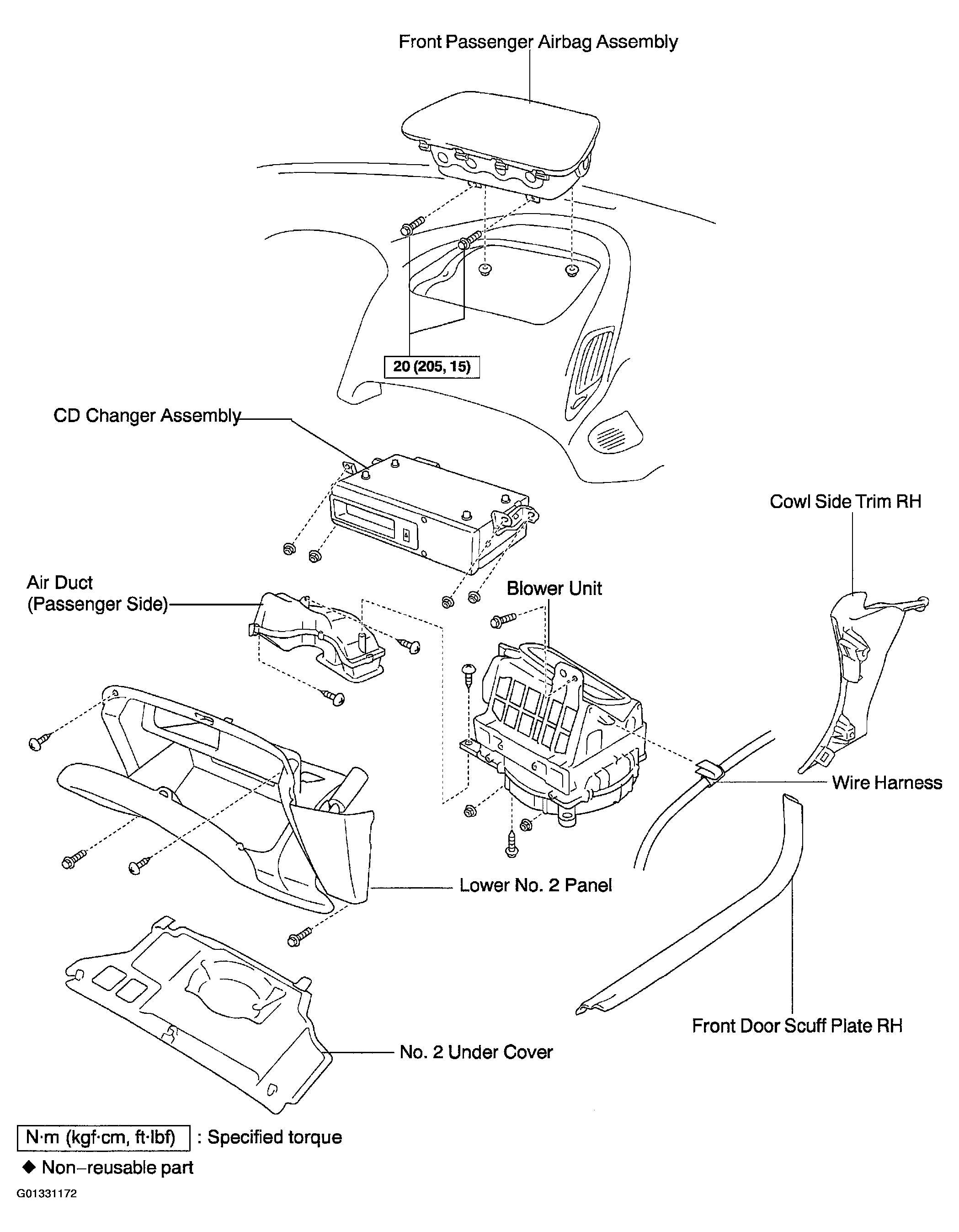

Fig 1: Exploded View Of Blower Unit Components And Torque specifications (1 Of 2)
G01331172Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

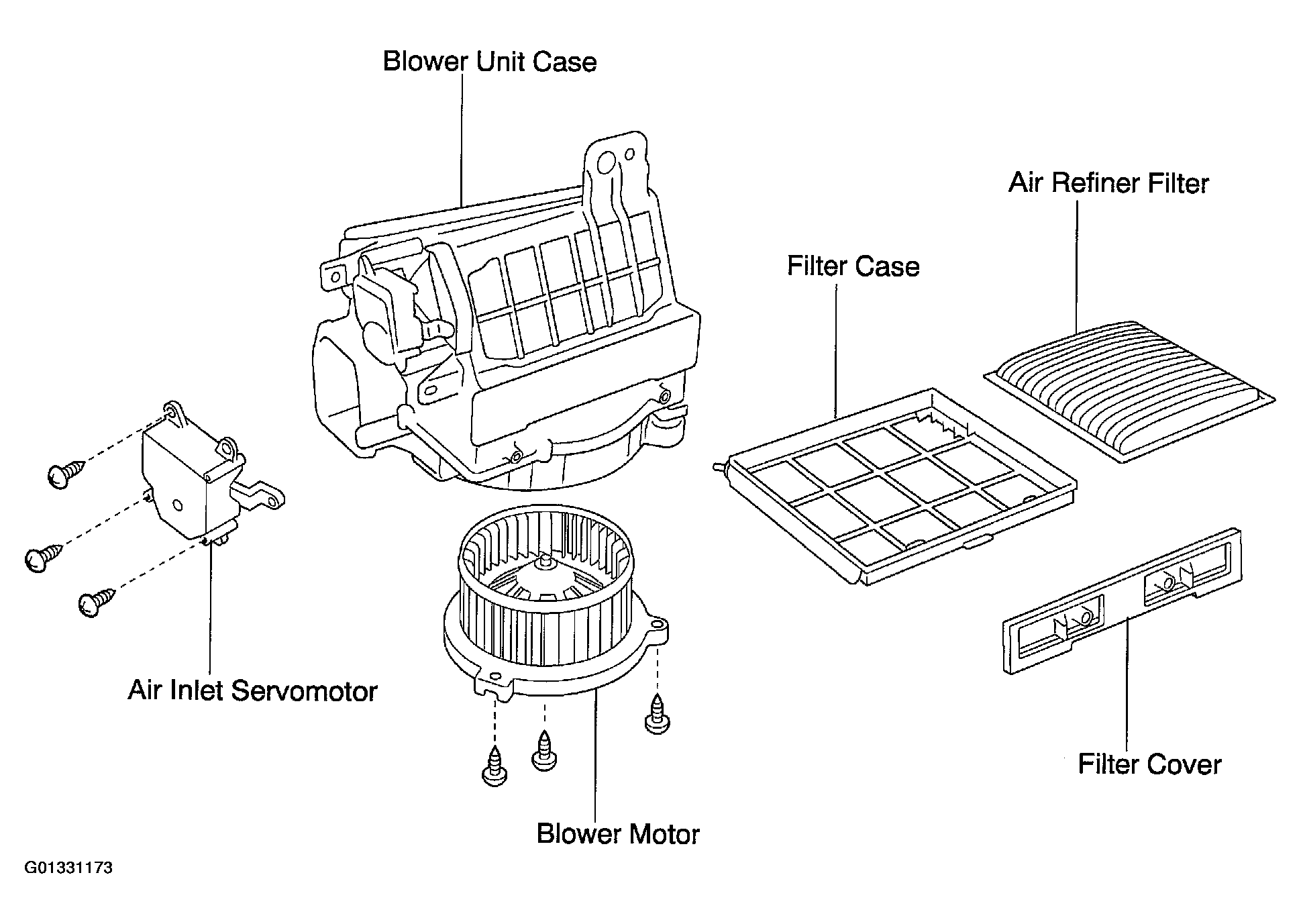

Fig 2: Exploded View Of Blower Unit Components And Torque specifications (2 Of 2)
G01331173Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
