Diagnosis & Repair
- Turn ignition on. Using hand-held tester or scan tool, read voltage for accelerator pedal position sensor data. See ACCELERATOR PEDAL POSITION VOLTAGE CHECK table. If voltages are to specification, replace ECM. If voltages are not to specification, go to next step.ACCELERATOR PEDAL POSITION VOLTAGE CHECK

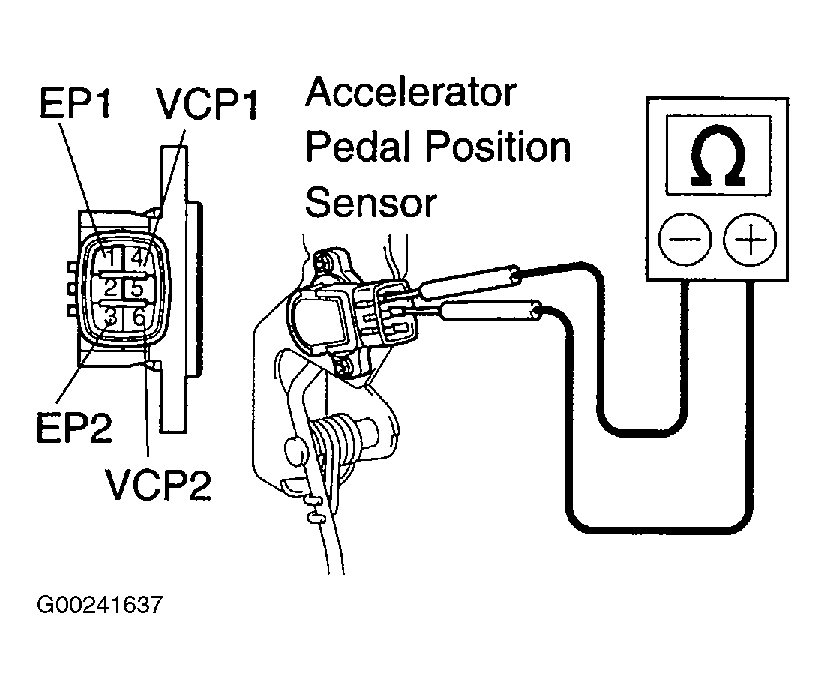

Accelerator Pedal Position VPA VPA2 Released .5-1.1 Volts .9-2.3 Volts Depressed 3-4.6 Volts 3.4-5.5 Volts - Disconnect the accelerator pedal position sensor connector. Measure the resistance between the terminals of the accelerator pedal position sensor. See Figure. See ACCELERATOR PEDAL POSITION SENSOR RESISTANCE table. If resistance is to specification, go to next step. If resistance is not to specification, replace accelerator pedal rod assembly.

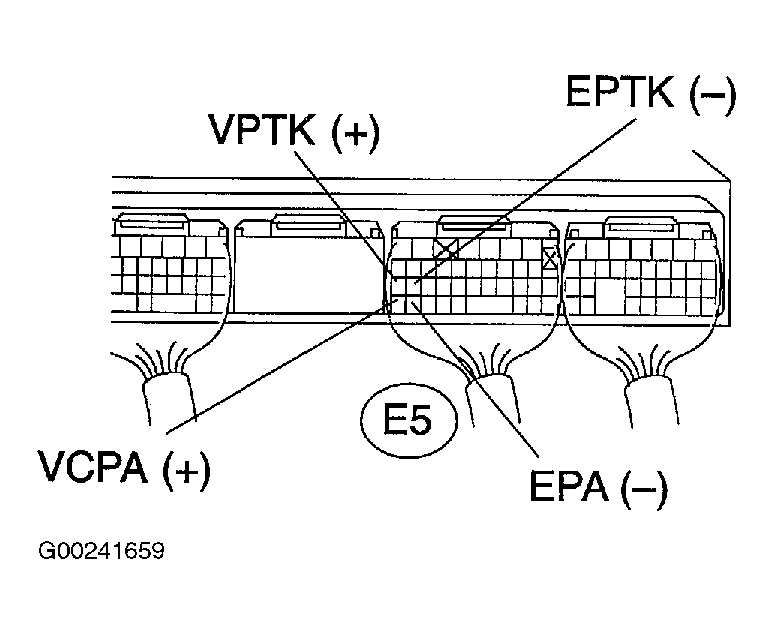

- Turn the ignition switch ON. Measure the voltage between the terminals of the ECM E5 connector. See VPTK & VCPA VOLTAGE CHECK table. See Figure. If voltage is to specification, go to next step. If voltage is not to specification, replace ECM.

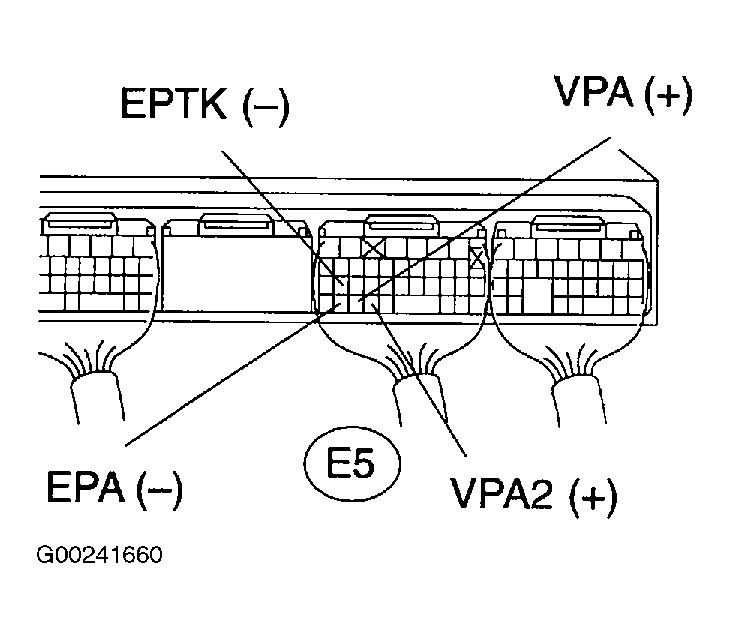

- Turn the ignition switch ON. Measure the voltage between the terminals of the ECM E5 connector. See VPA & VPA2 VOLTAGE CHECK table. See Figure. If voltage is to specification, go to next step. If voltage is not to specification, replace ECM.

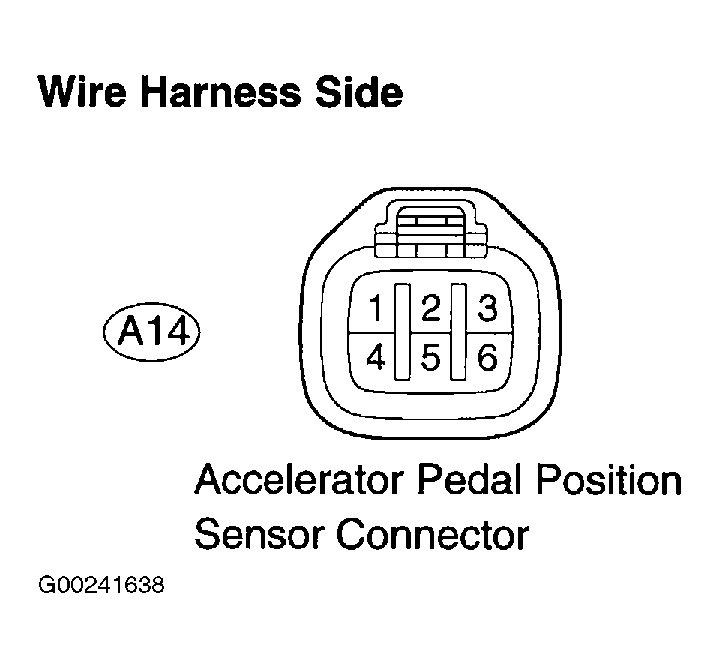

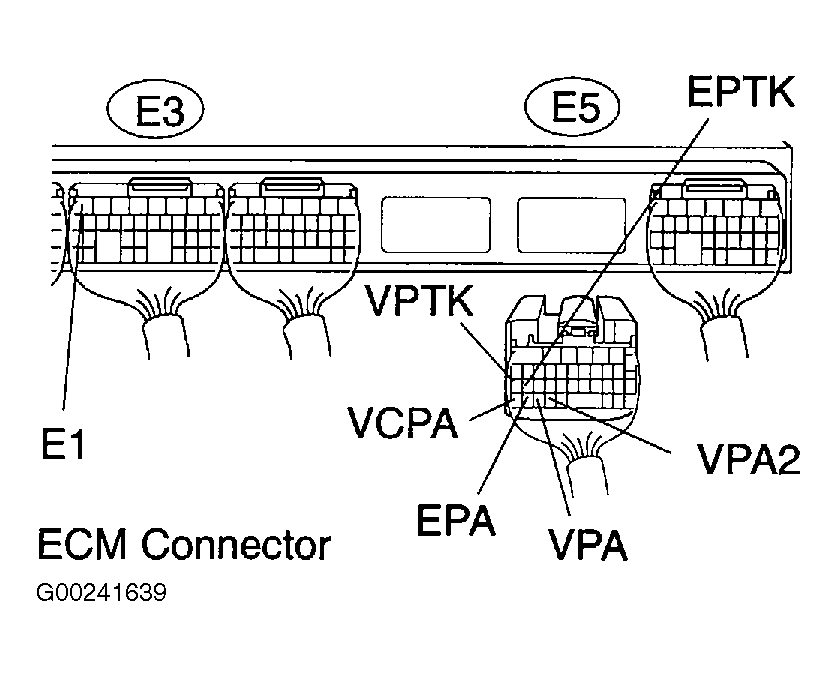

- Disconnect the A14 accelerator pedal position sensor 6-pin connector. See Figure. Disconnect the ECM E5 connector. Check the continuity between the wire harness side connectors. See ACCELERATOR PEDAL POSITION SENSOR/ECM CONTINUITY CHECK table. See Figure. If continuity is to specification, replace ECM. If continuity is not to specification, repair or replace harness or connector as necessary.
