Water Pump ASSY: Components: Notes

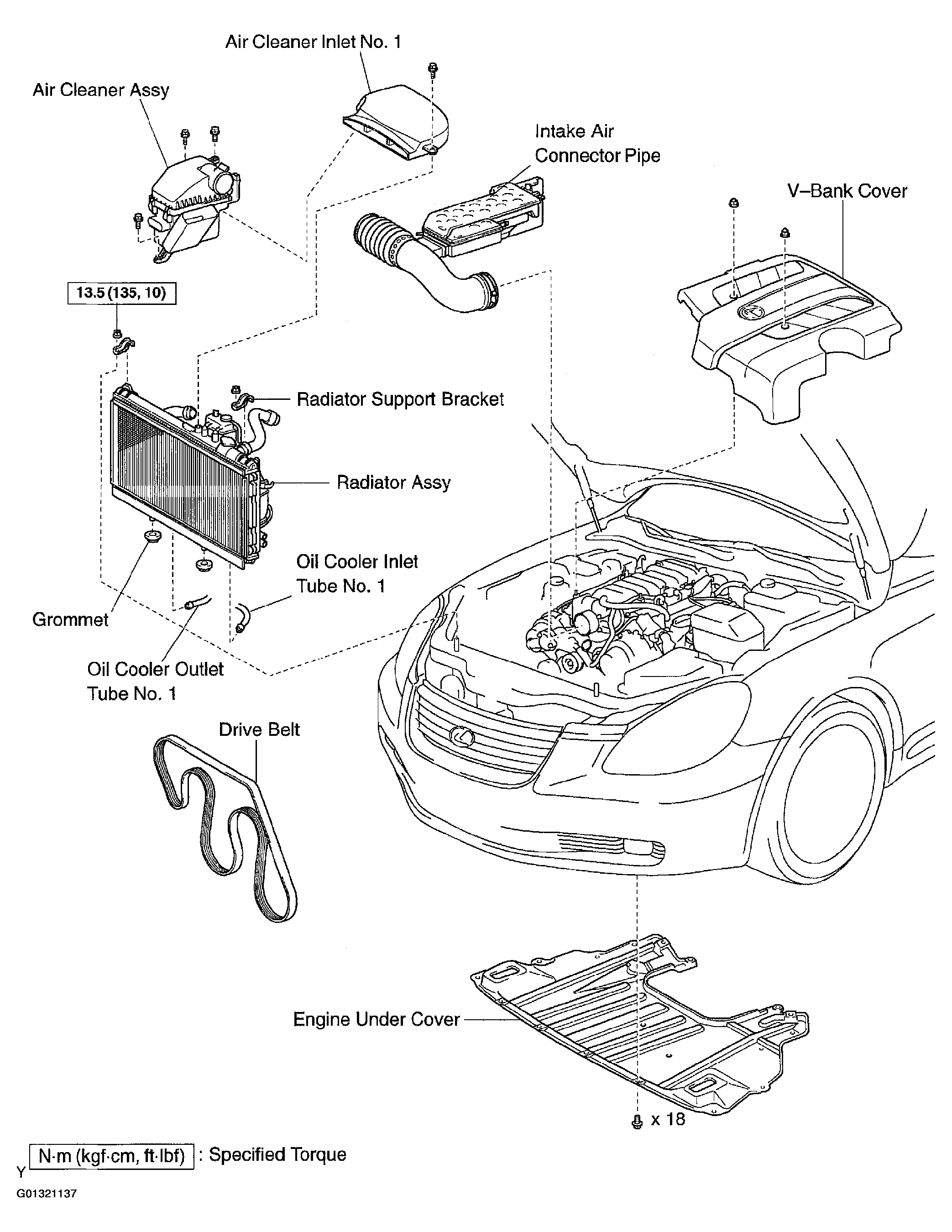

Fig 1: Identifying Water Pump Assy Components (1 Of 3)
G01321137Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

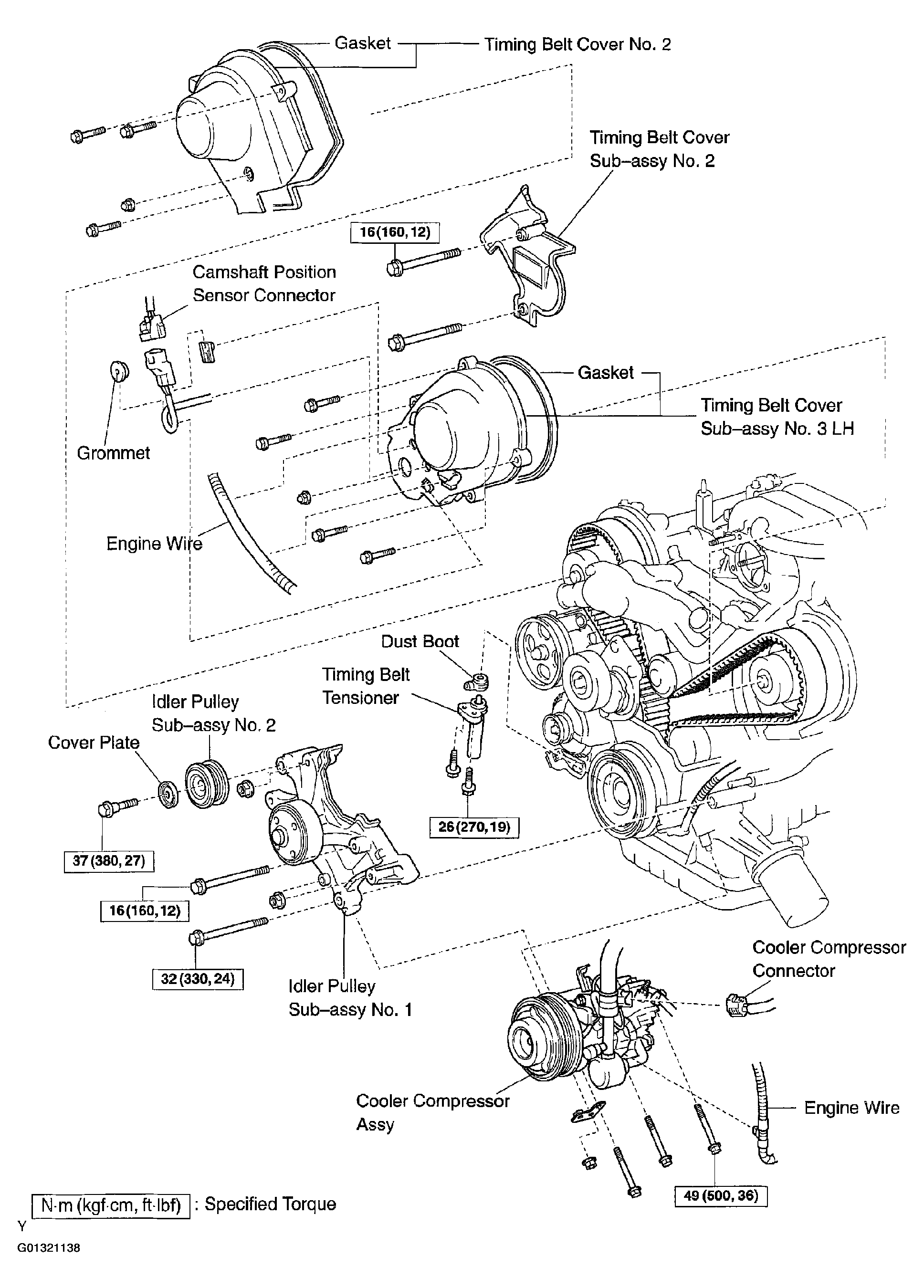

Fig 2: Identifying Water Pump Assy Components (2 Of 3)
G01321138Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

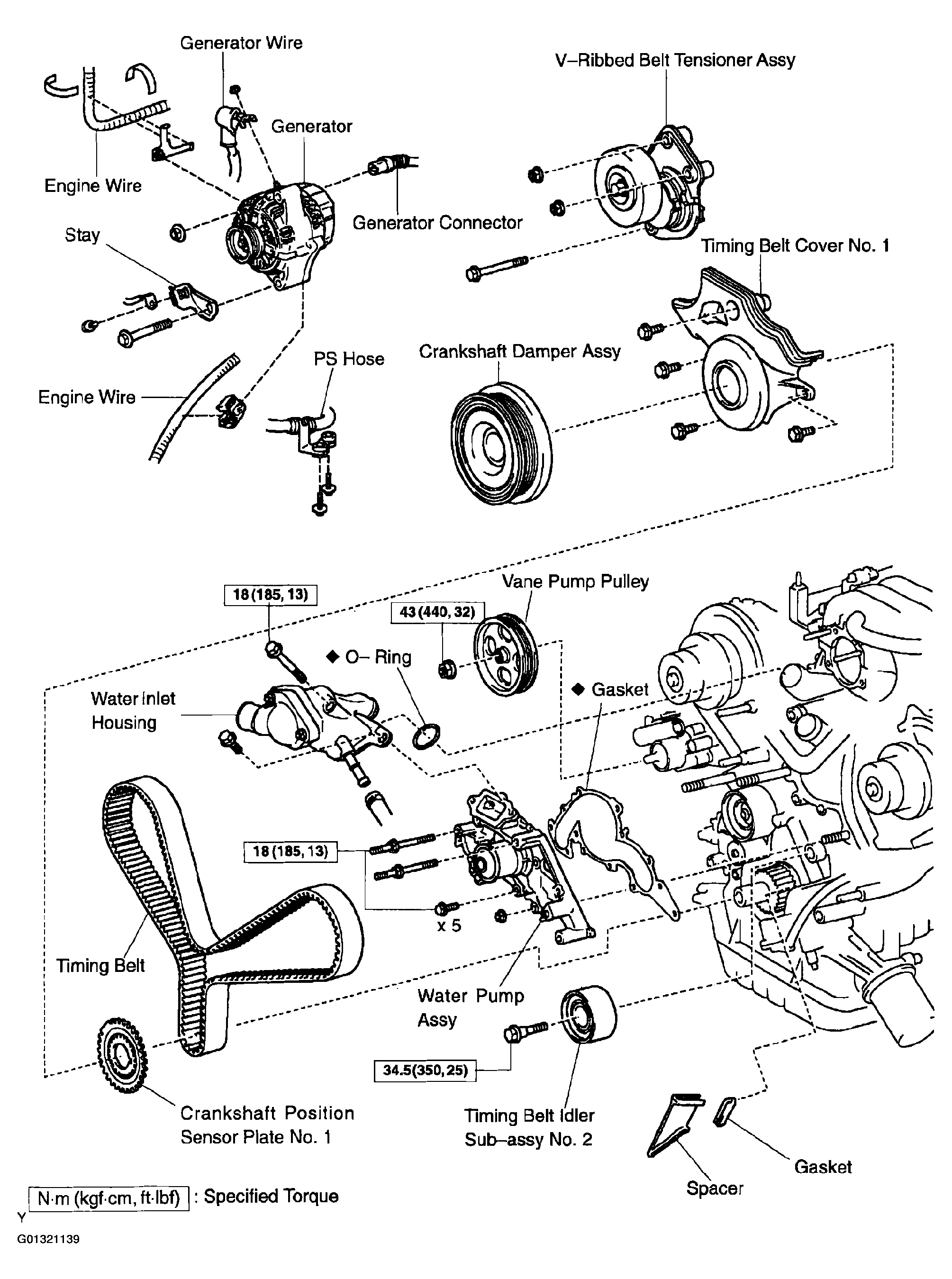

Fig 3: Identifying Water Pump Assy Components (3 Of 3)
G01321139Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
