Combination Meter - Diagnosis: Pre-Check

  1. CALIBRATE COMPASS
    1. Set the zone.
      1. Deviation between the magnetic north and "actual north" differs depending on the terrestrial location, therefore, an adjustment in magnetism is required. Since the magnetic condition differs according to the area where the vehicle will be used, it is necessary for each user to set the zone. (Refer to Compass Zone Map). The zone setting can be changed using the REST switch of the display.
    2. Perform the calibration.
      1. Because each vehicle has its own magnetic field, calibration should be performed for each vehicle. This compass function is used when storing the record of the vehicle's magnetic field.
    3. When compass magnetized:
      1. A compass could be magnetized during shipping by vessels or freight cars. Before delivery, therefore, make sure to perform calibration and ensure that calibration can be done. If it cannot be done (cannot complete in spite of driving round several times), it may be caused by magnetization. Demagnetize the vehicle using a demagnetizer and perform calibration again.
    4. Set the compass.

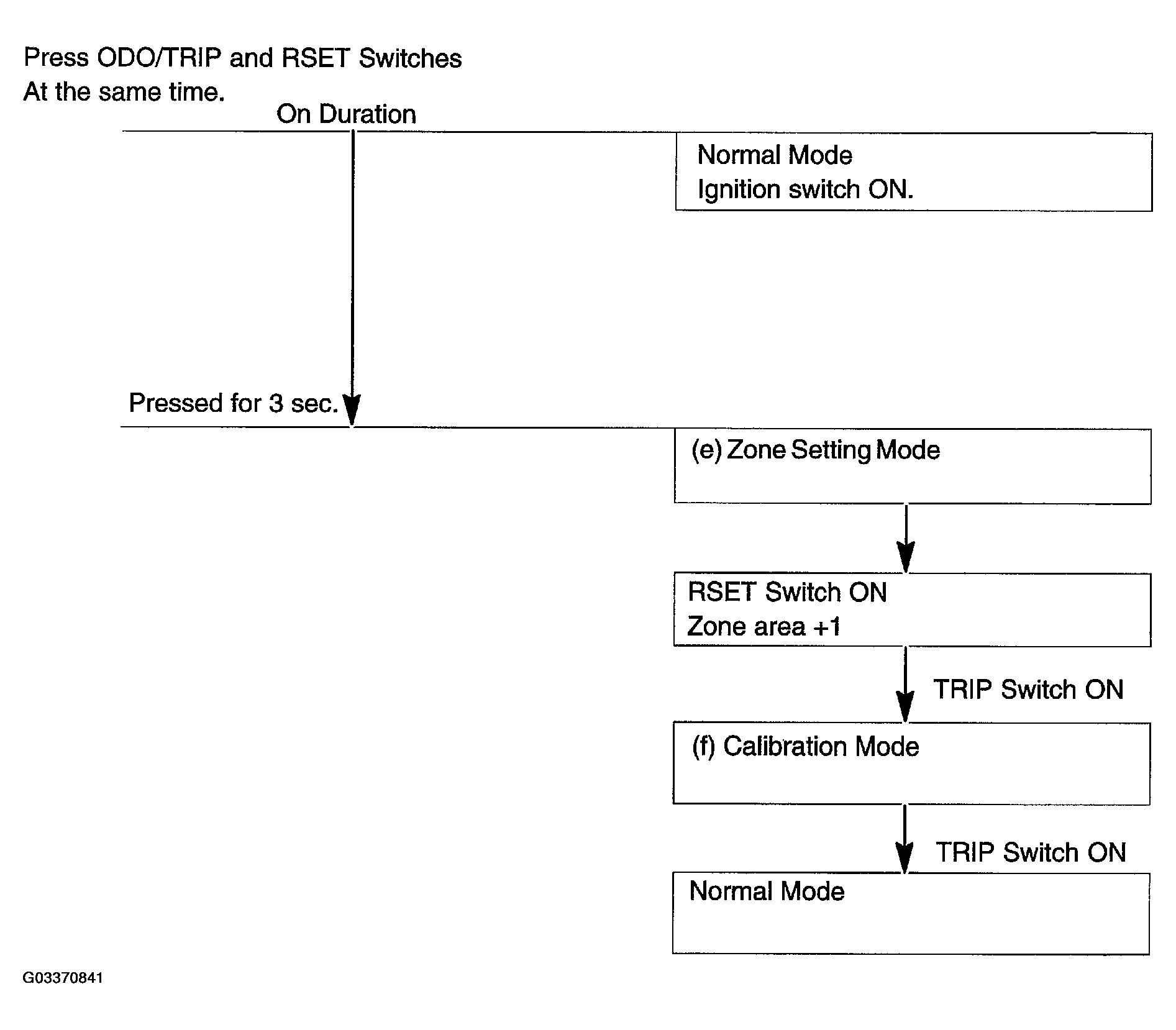

      Fig 1: Calibrate Compass Flow Chart
      G03370841Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
    5. Zone setting mode.
      1. Turn the ignition switch to ON.
      2. To keep pressing the ODO/TRIP switch and REST switch for 3 sec. when compass is displayed will activate the zone setting mode, showing a number (1 - 15) on the compass display.

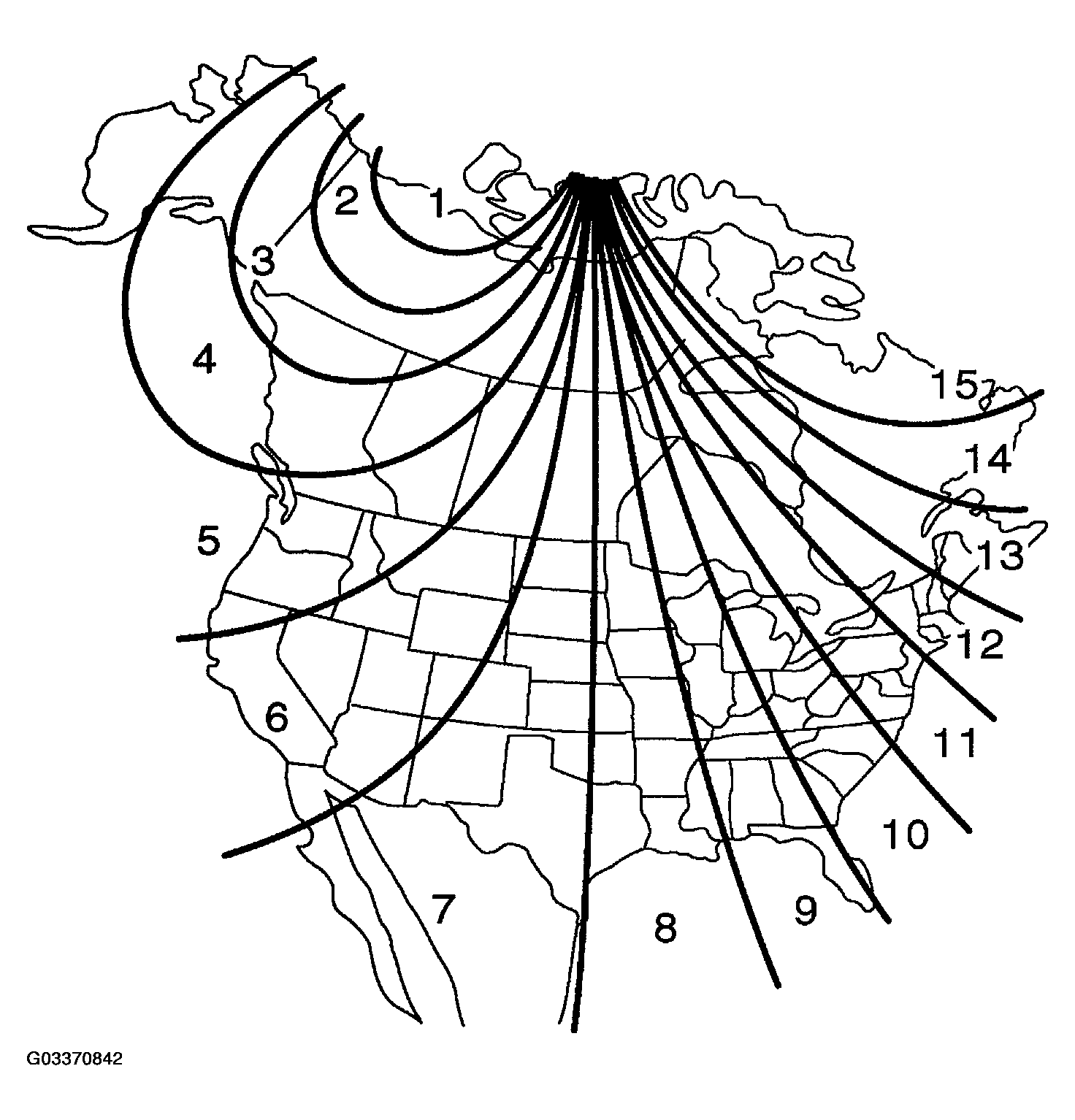

        Fig 2: Identifying Zone Setting Mode
        G03370842Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

        HINT:

        In the initial setting, "10" is displayed.

      3. The displayed number increases +1 every time the REST switch is pressed. Referring to the map, check the number for the area where the vehicle will be used and set the zone number.
    6. Calibration setting mode.
      1. After the set zone is displayed, if the TRIP switch pressed will activate the calibration setting mode.
      2. Drive the vehicle at a slow speed of 5 MPH (8 km/h) or less in the circular direction.
      3. Driving round the circle 1 to 3 times will display the azimuthal direction on the display, competing the calibration.

      HINT:

      Once calibration is competed, it is not necessary to perform the above procedures unless the magnetic field strength is drastically changed.

  2. INSPECTION WITH LEXUS HAND-HELD TESTER
    1. Read value of LEXUS hand-held tester.
      1. Following the screen instructions of LEXUS hand-held tester, activate the "DATA LIST" screen and check the computer data.

      Combination meter:

      SYMBOL SPECIFICATION

      Tester display Symbol Inspection Condition Standard
      Vehicle Speed S1 During drive Almost synchronized with speed on meter
      Engine R.P.M S Engine running Almost synchronized with speed on meter
      Fuel Sender FR Indicated fuel level: F 255
      Fuel Sender FE Indicated fuel level: E 0
      ODO/TRIP Select Switch A/B ODO/TRIP select switch ON - OFF (When operated: ON) ON - OFF
      Trip Reset Switch RSET TRIP RESET switch ON - OFF (When operated: ON) ON - OFF

      Driver side J/B ECU:

      SYMBOL SPECIFICATION

      Tester display Symbol Inspection Condition Standard
      Driver's Seat Buckle Switch DBIL Driver's seat buckle switch: ON - OFF ON-OFF
      Rheostat Adjustment REOS Rheostat volume: High - Low 255-0
      Tail Cancel Switch STP1 Tail cancel switch: ON - OFF ON-OFF

      Passenger side J/B ECU:

      SYMBOL SPECIFICATION

      Tester display Symbol Inspection Condition Standard
      PWR Switch PWR Pattern select switch: PWR - OFF ON - OFF
      SNOW Switch SNOW Pattern select switch: SNOW- OFF ON - OFF
    2. Do active test of LEXUS hand-held tester.
      1. Following the screen instructions of LEXUS hand-held tester, activate the "ACTIVE TEST" screen and check the data.

      Combination meter:

      ITEM CONDITION SPECIFICATION

      Item Condition
      Speedometer 280,240,200,160,120,80,40,0 (km/h/mph)
      Tachometer 7000, 6000,5000,4000, 3000,2000,1000, 0 (RPM)
      Fuel Sender Gauge Sender gauge F point, pointed gauge scale F, 3/4,1/2,1/4, warning lighted, pointed gauge scale E, sender gauge E point
      Coolant Temperature Gauge 127,120,110, intermediate stable zone, 80,70,60,50 (C)
      A/T Indicator P, R, N, D, 4,3,2, L (range)
      ITEM CONDITION SPECIFICATION

      Item Condition
      Indicators BRAKE, CHARGE, OIL PRESS, DOOR, FUEL, Rr LIGHT, OIL LEVEL, ECT PWR, ECTSNOW, CRUISE, HEAD or TAIL, BEAM, AIRBAG, WASHER, VSC, VSC OFF, SLIP, ABS, TIRE PRESS, HEADLAMP AUTO LEVELING
      Buzzer Key Remainder Warning, Seat Belt Warning, Warning
