Compass Does Not Function: Wiring Diagram

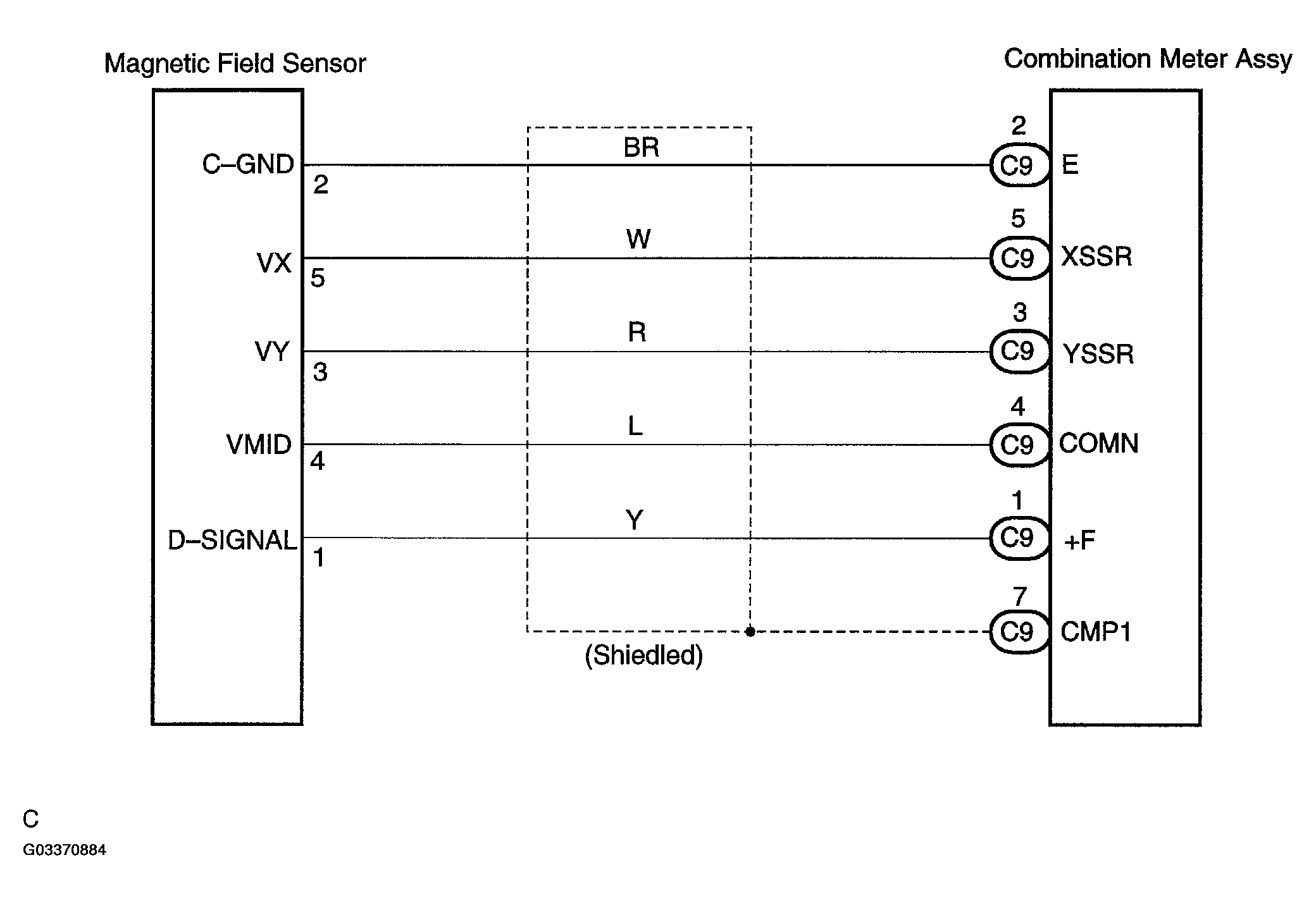

Fig 1: Compass Wiring Diagram

G03370884

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
