Sliding Roof/Removable Roof Panel Sub-ASSY: Components

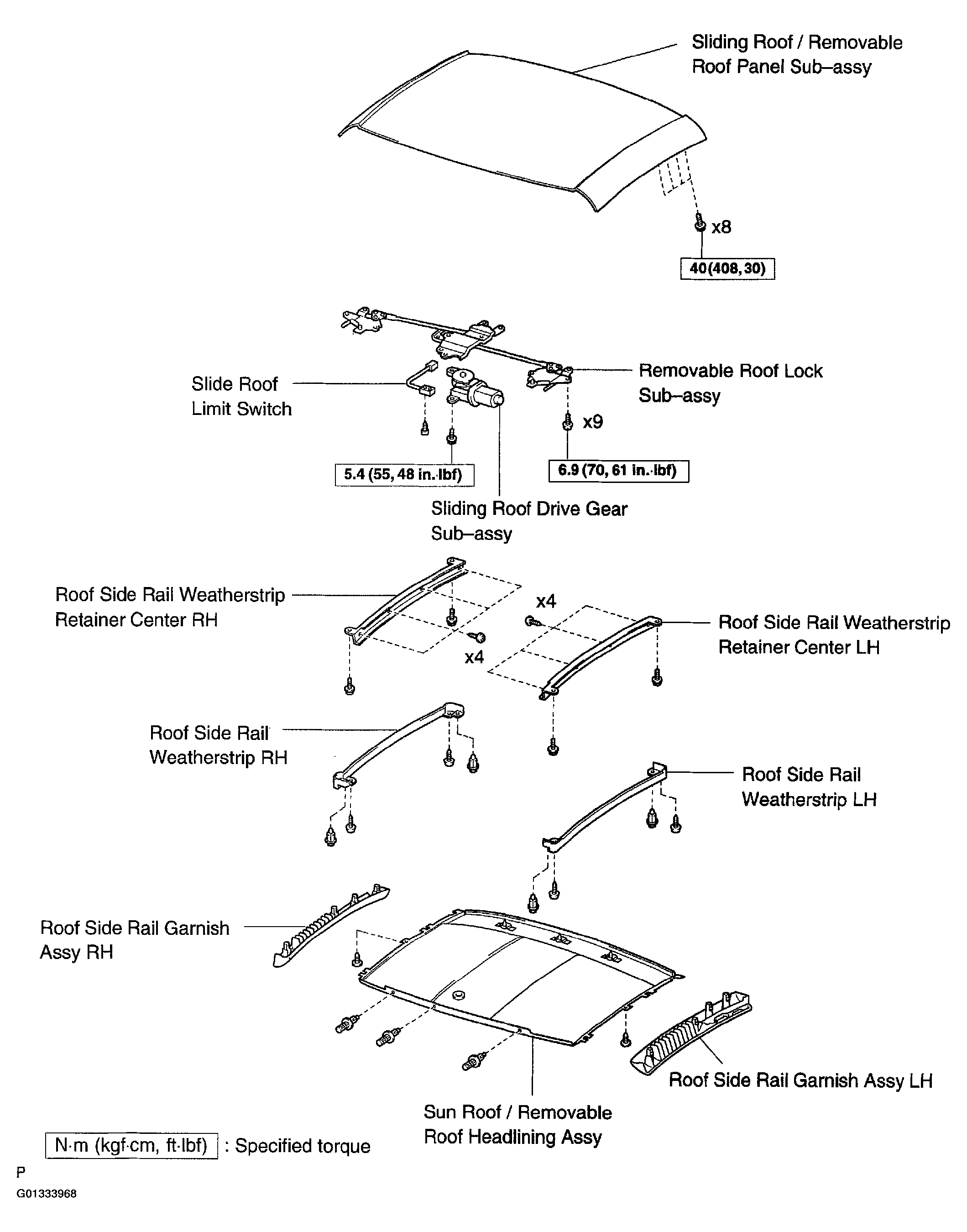

Fig 1: Identifying Sliding Roof/Removable Roof Panel Sub-Assy Components

G01333968

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
