Roof Panel RH Link Sub-ASSY: Components

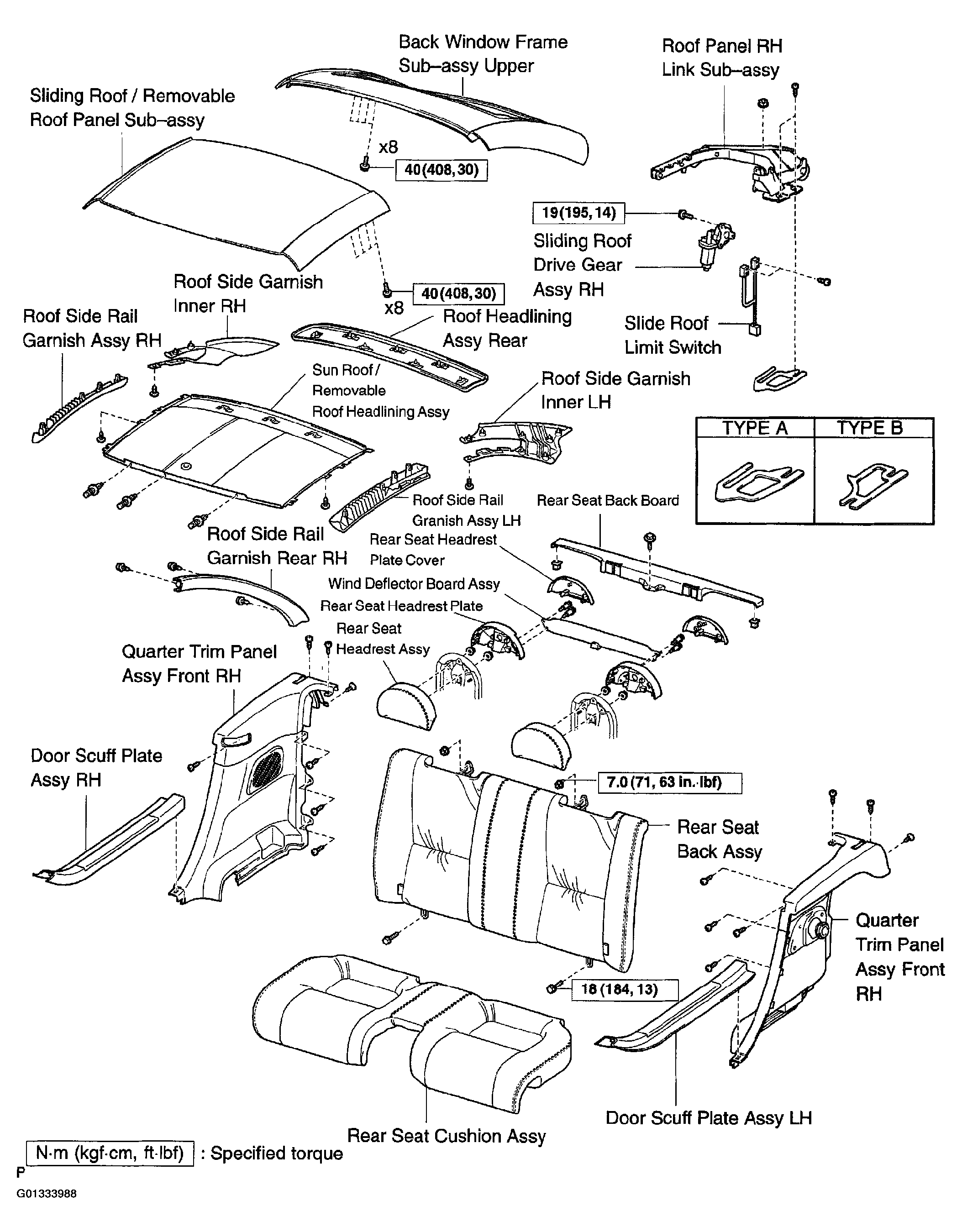

Fig 1: Identifying Roof Panel RH Link Sub-Assy Components (1 Of 2)
G01333988Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

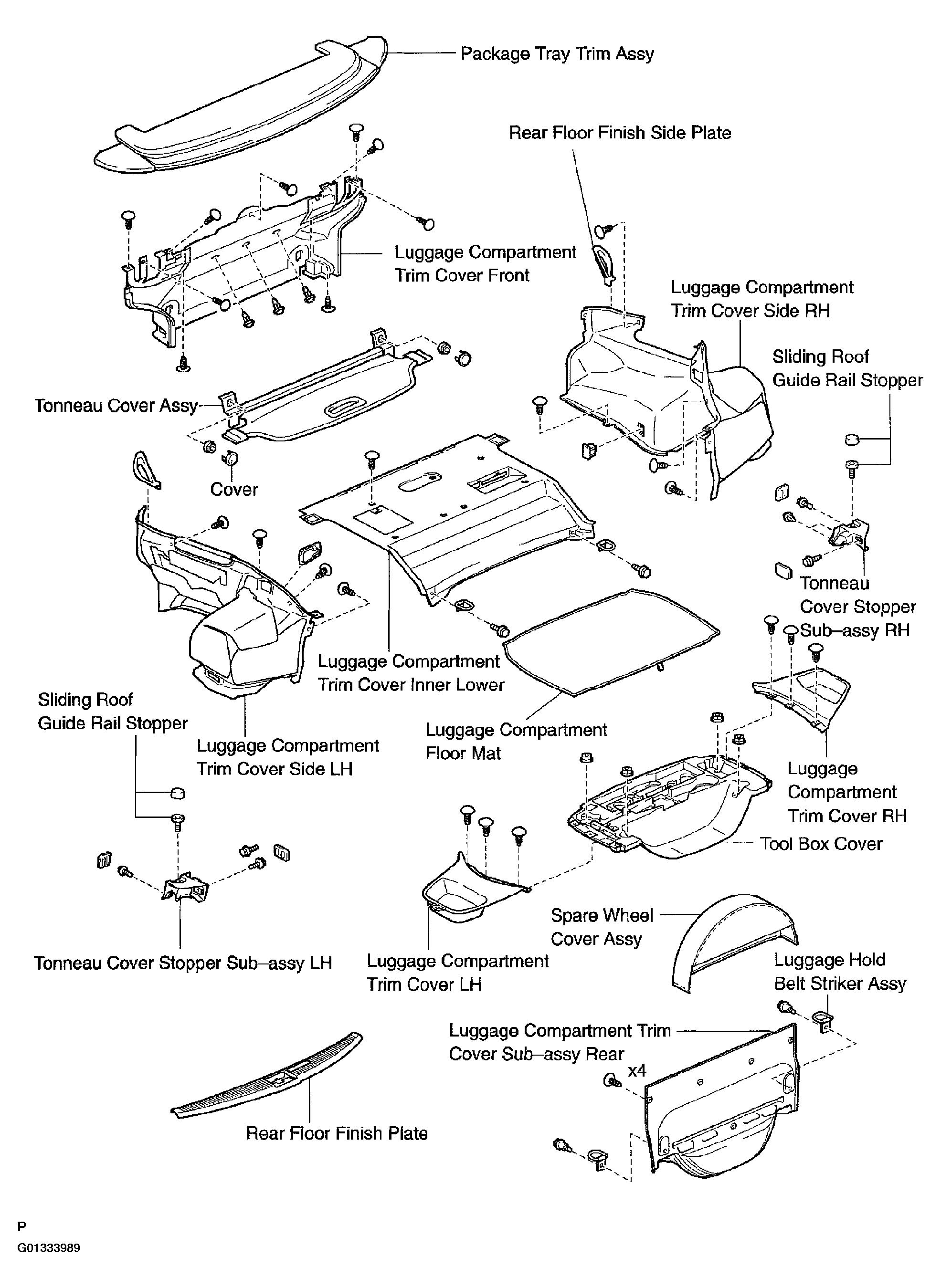

Fig 2: Identifying Roof Panel RH Link Sub-Assy Components (2 Of 2)
G01333989Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
