Home >> Lexus >> 2003 >> SC 430 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Power Mirror Control System - Diagnosis >> Location

Power Mirror Control System - Diagnosis: Location

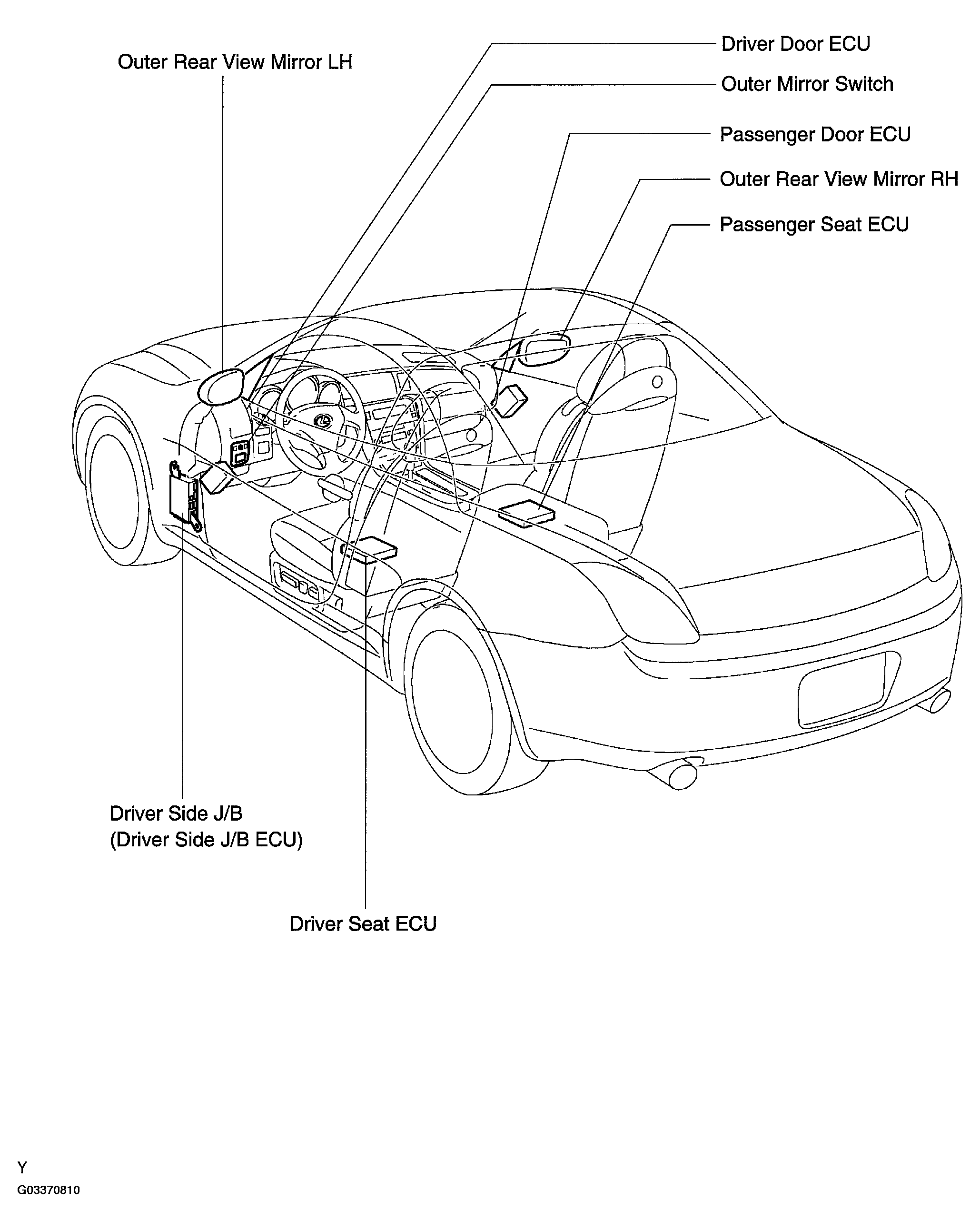

Fig 1: Locating Power Mirror Control System

G03370810

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
