Engine Immobilizer System - Diagnosis: Location

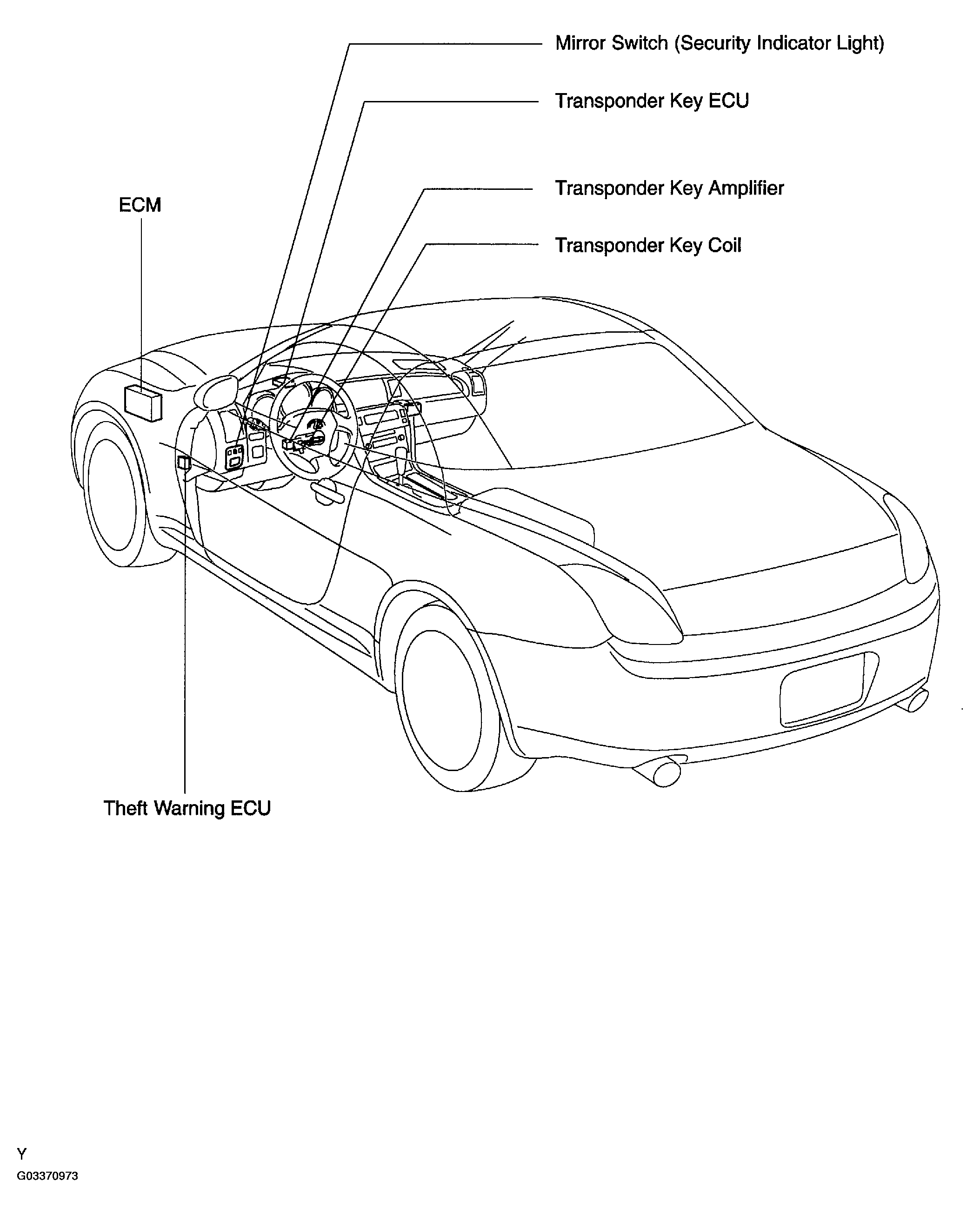

Fig 1: Locating ECM Components

G03370973

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
