SC 430
>>
Repair and Diagnosis (Single Page)
>>
Accessories & Equipment
>>
Infotainment
>>
LEXUS Navigation System - Diagnosis
>>
Touch Switch Does Not Function (Navigation Screen Only)
>>
Wiring Diagram
Touch Switch Does Not Function (Navigation Screen Only): Wiring Diagram

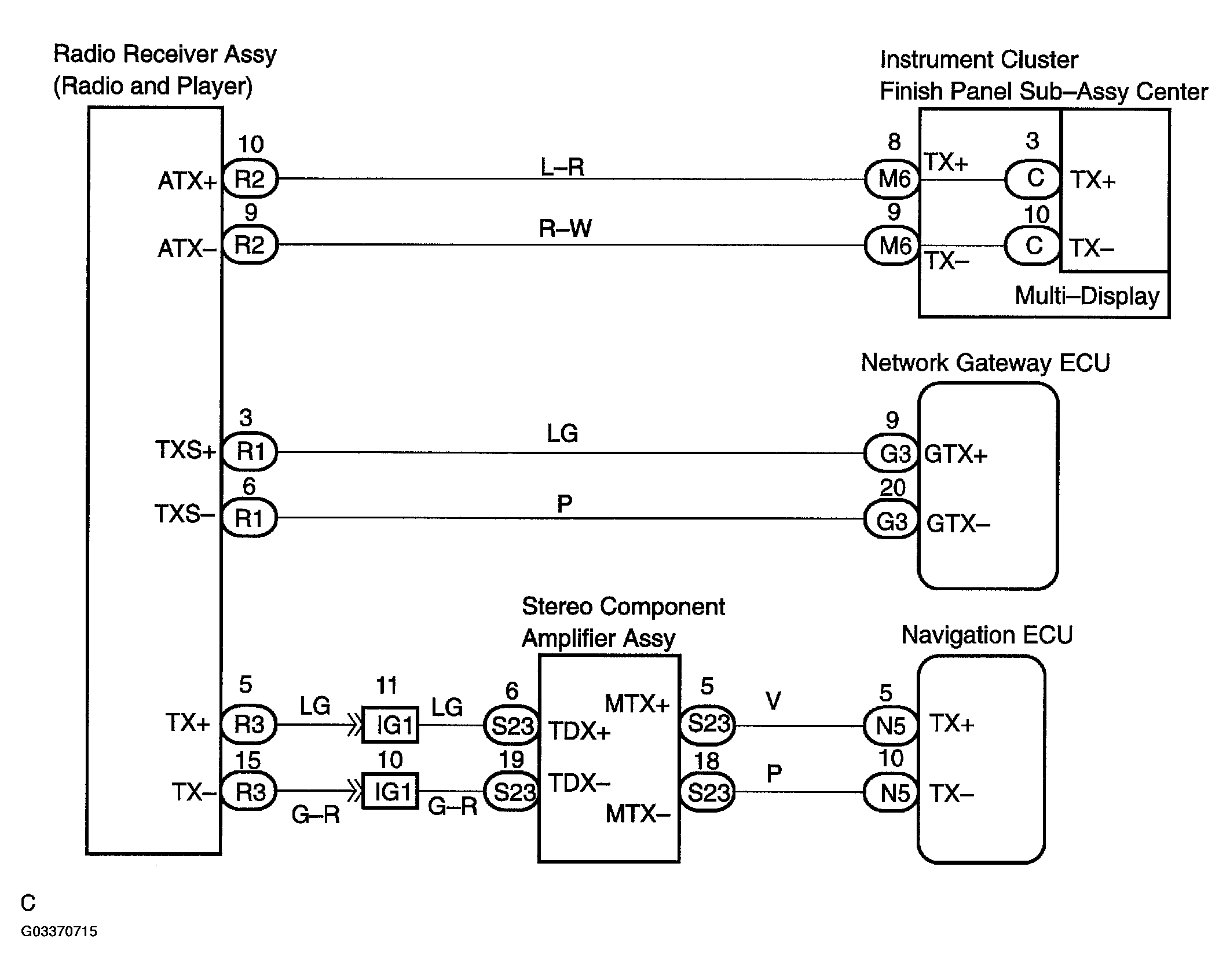

Fig 1: Touch Switch Does Not Function (Navigation Screen Only) Wiring Diagram
