DTC 2 (Two) "Code 2. Button Module Failure": Wiring Diagram

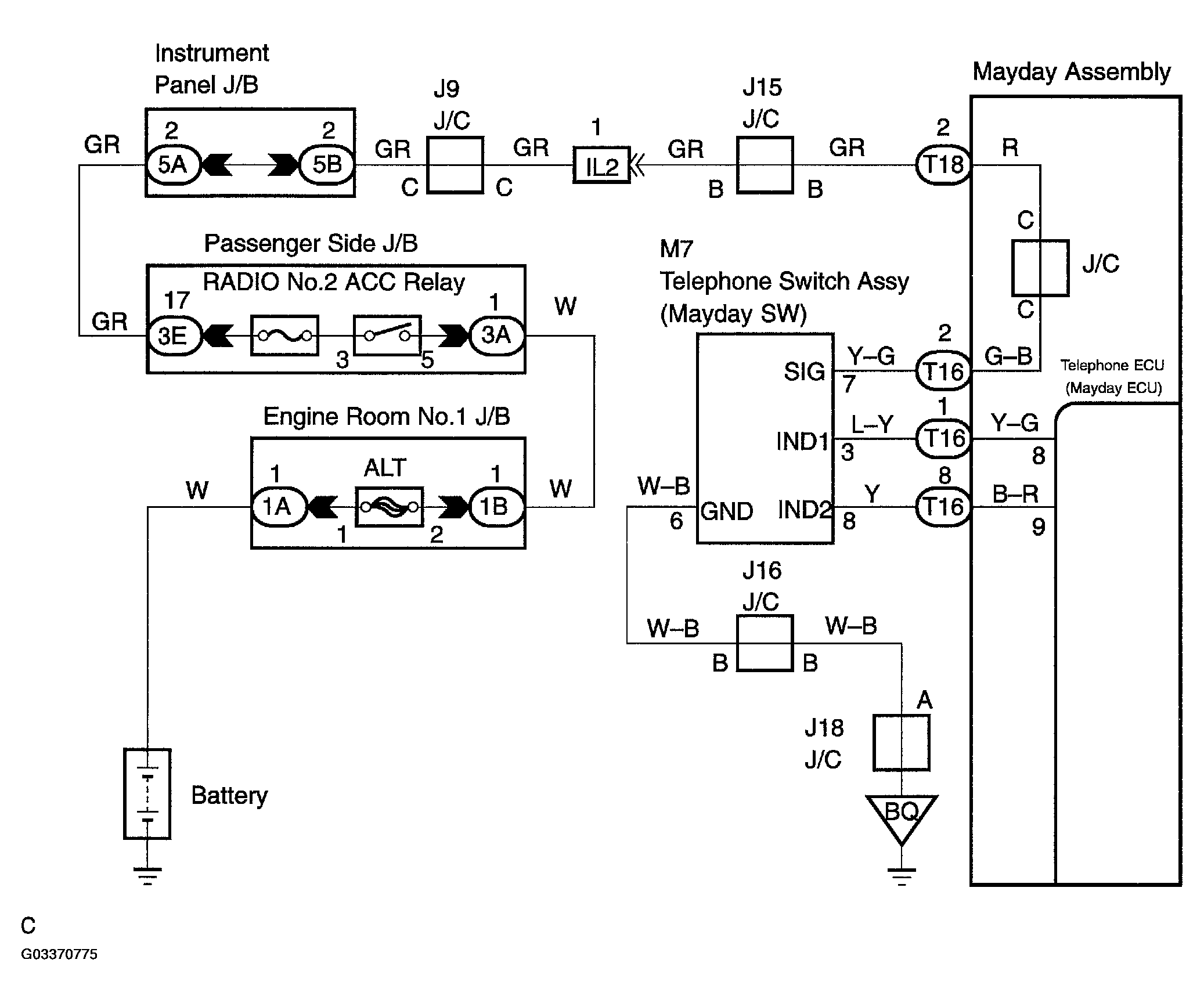

Fig 1: Identifying Telephone Switch Assembly Wiring Diagram

G03370775

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
