Key Lock-In Prevention Function Does Not Work Properly (Unlock Warning Switch Circuit): Wiring Diagram

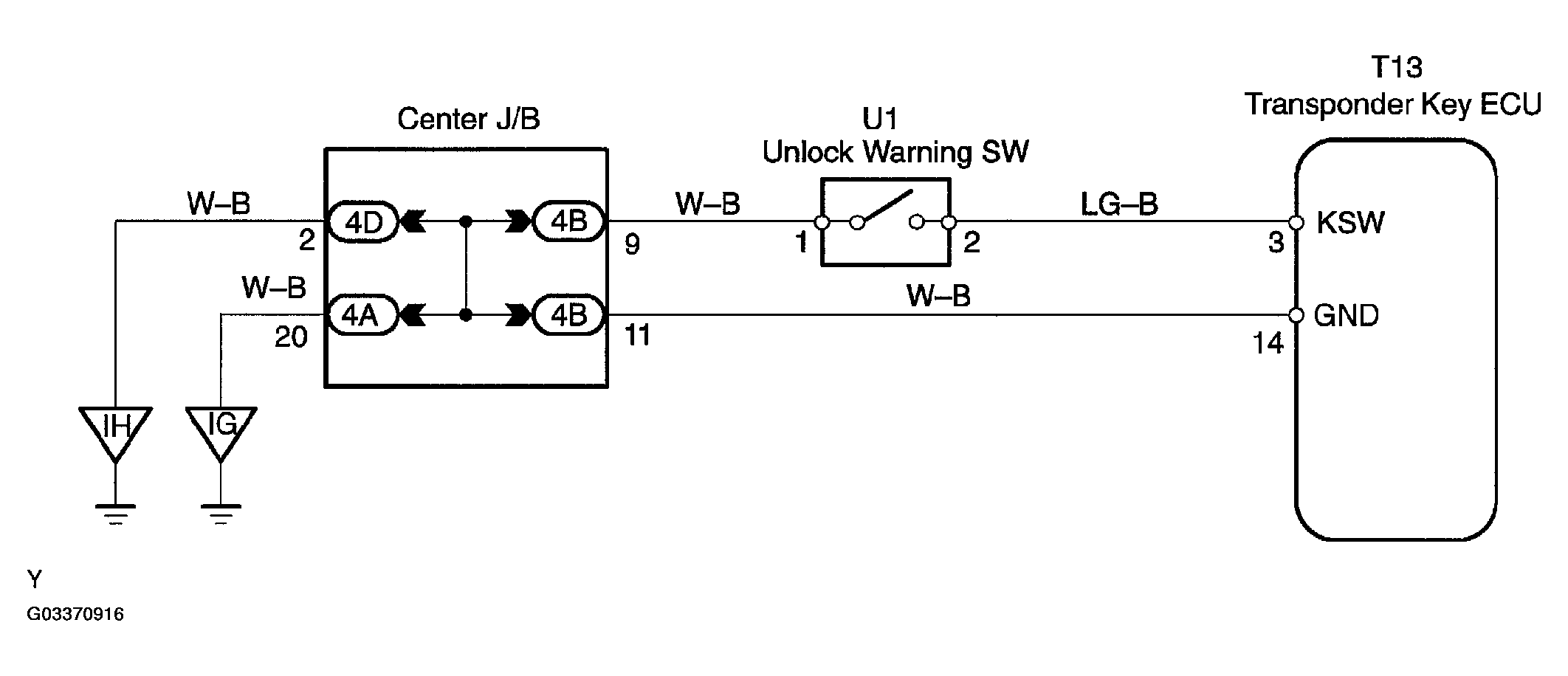

Fig 1: Wiring Diagram - Unlock Warning Switch

G03370916

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
