Horn System: Location

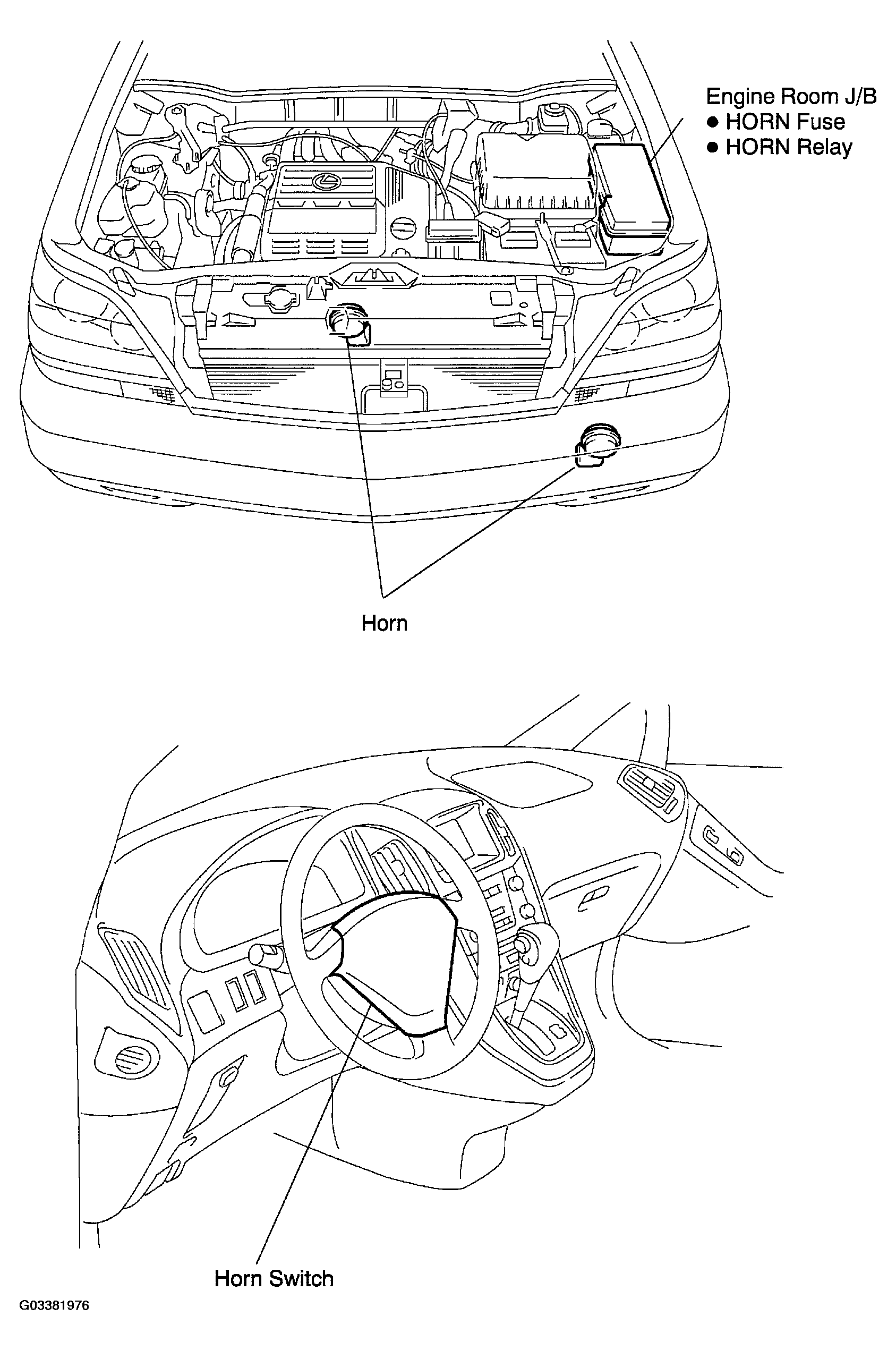

Fig 1: Locating Horn System Components

G03381976

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
