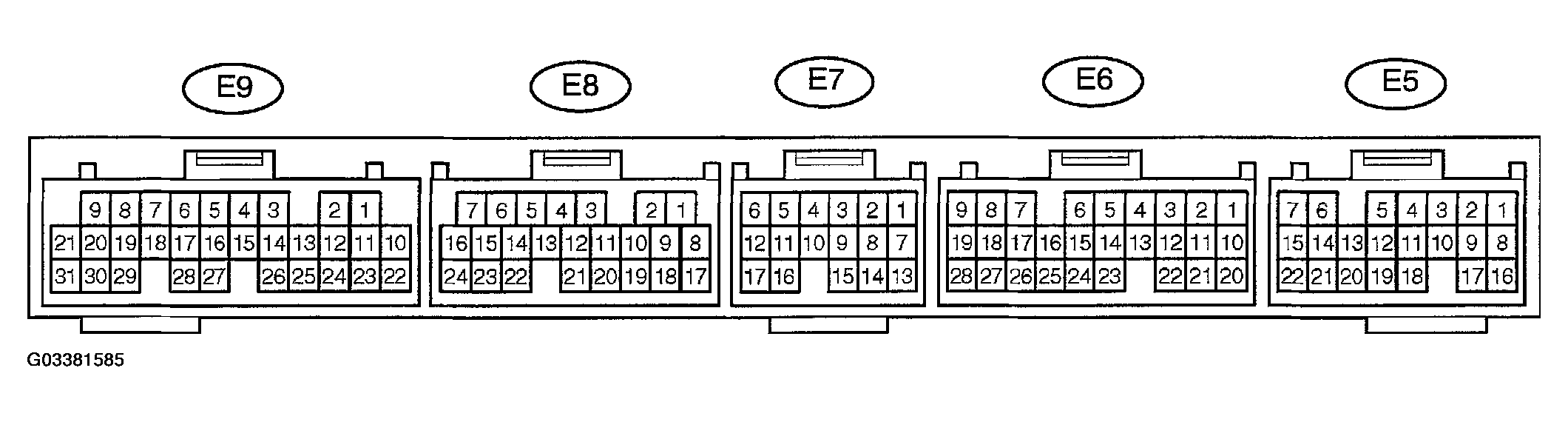

Terminals Of ECM
ECM TERMINALS DESCRIPTION
| Symbols (Terminals No.) | Wiring Color | Condition | STD Voltage (V) |
|---|---|---|---|
| SL1 + (E9-20) <--> SL1- (E9-19) | L-B <--> L-W | IG ON | 10 - 14 |
| 1st or 2nd gear | 10 - 14 | ||
| 3rd or O/D gear | Below 1 | ||
| SL2 + (E9-9) <--> SL2- (E9-8) | R-B <--> R-W | IG ON | Below 1 |
| 1st or 2nd gear | 10 - 14 | ||
| 3rd or O/D gear | Below 1 | ||
| DSL (E9-7) <--> Body ground | R-L <--> Body ground | IG ON | Below 1 |
| Vehicle driving under lock-up position | 10 - 14 | ||
| NC+ (E9-24) <--> NC- (E9-23) | R <--> G | Engine is running | Pulse signal is output Below 1Ω 4 - 5 |
| NT+ (E7-5) <--> NT- (E7-4) | L <--> LG Engine is running | Pulse signal is output Below 1Ω 4 - 5 |
|
| SLT+ (E7-3) <--> SLT- (E7-2) | G-B <--> G | IG ON | 10 - 14 |
| OD1 (E6-24) <--> E1 (E8-17) | Y-G <--> BR | IG ON | 5 - 6 |
| L (E7-13) <--> E1 (E8-17) | L-R <--> BR | IG ON and Shift lever L position | 10 - 14 |
| IG ON and Shift lever other than L position | Below 1 | ||
| 2(E7-14) <--> E1 (E8-17) | G-Y <--> BR | IG ON and Shift lever 2 position | 10 - 14 |
| IG ON and Shift lever other than 2 position | Below 1 | ||
| R (E7-8)<--> E1 (E8-17) | R-B <--> BR | IG ON and Shift lever R position | 10 - 14 |
| IG ON and Shift lever other than R position | Below 1 | ||
| D (E7-16} <--> E1 (E8-17) | G-R <--> BR | IG ON and Shift lever D position | 10 - 14 |
| IG ON and Shift lever other than D position | Below 1 | ||
| N (E7-7) <--> E1 (E8-17) | R-W <--> BR | IG ON and Shift lever N position | 10 - 14 |
| IG ON and Shift lever other than N position | Below 1 | ||
| P (E7-9) <--> E1 (E8-17) | G-W <--> BR | IG ON and Shift lever P position | 10 - 14 |
| IG ON and Shift lever other than P position | Below 1 | ||
| ODLP (E5-9) <--> E1 (E8-17) | R-W <--> BR | IG ON and O/D OFF indicator light lights up | Below 1 |
| IG ON and O/D OFF indicator light goes off | 10 - 14 | ||
| ODMS (E7-12) <--> E1 (E8-17) | GR-L <--> BR | IGON | 10 - 14 |
| IG ON and press continuously O/D main switch | Below 1 |
