Diagnostic Trouble Code Chart

If a DTC is displayed during the DTC check, check the circuit listed for that code in the chart below.

*: -...MIL does not light /"DARKENED CIRCLE"...MIL light up.

Refer to CIRCUIT INSPECTION .

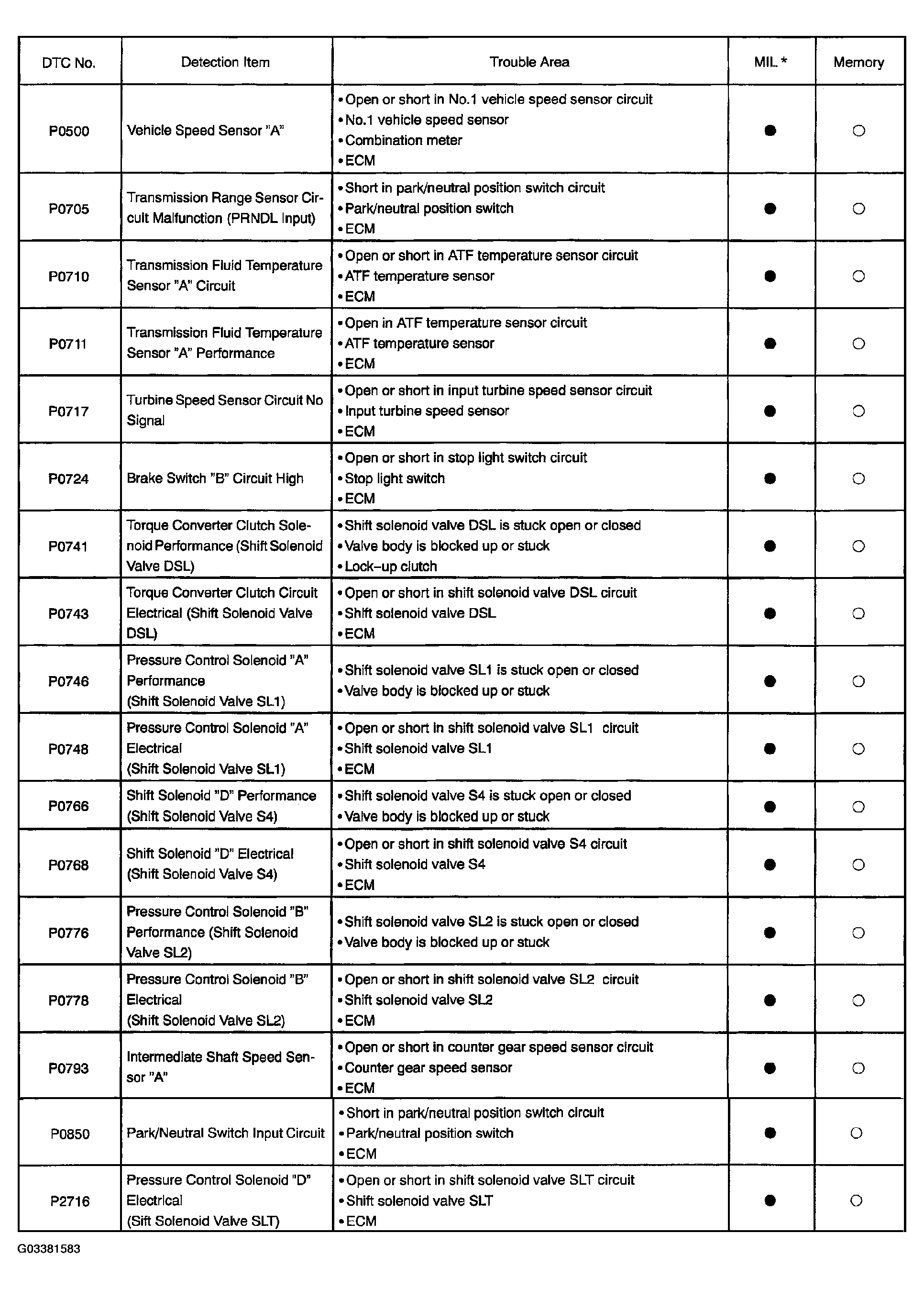

Fig 1: Diagnostic Trouble Code Chart

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
