Pattern Select Switch Circuit: Wiring Diagram

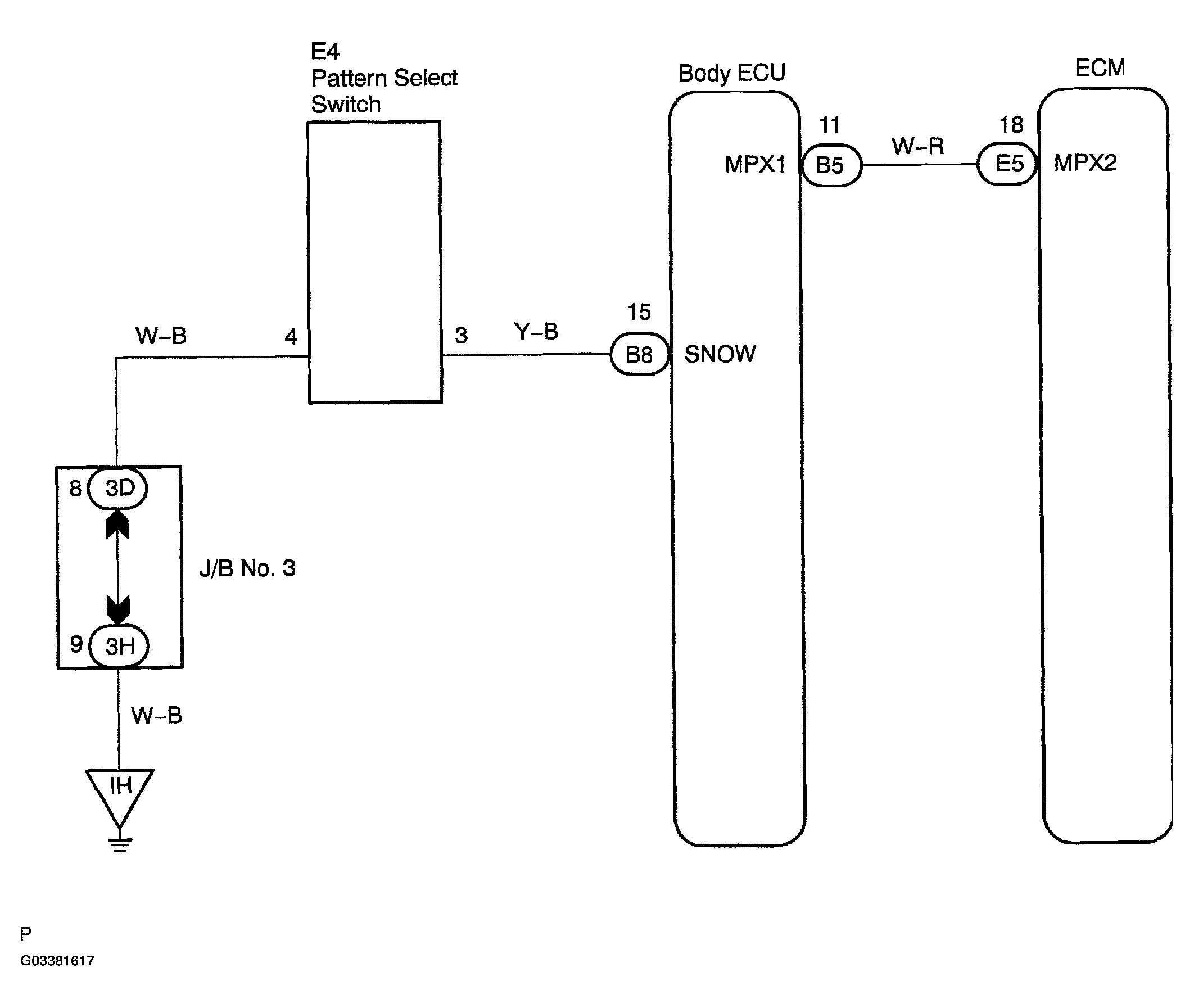

Fig 1: Wiring Diagram - Pattern Select Switch Circuit

G03381617

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
