Relay Block No. 1

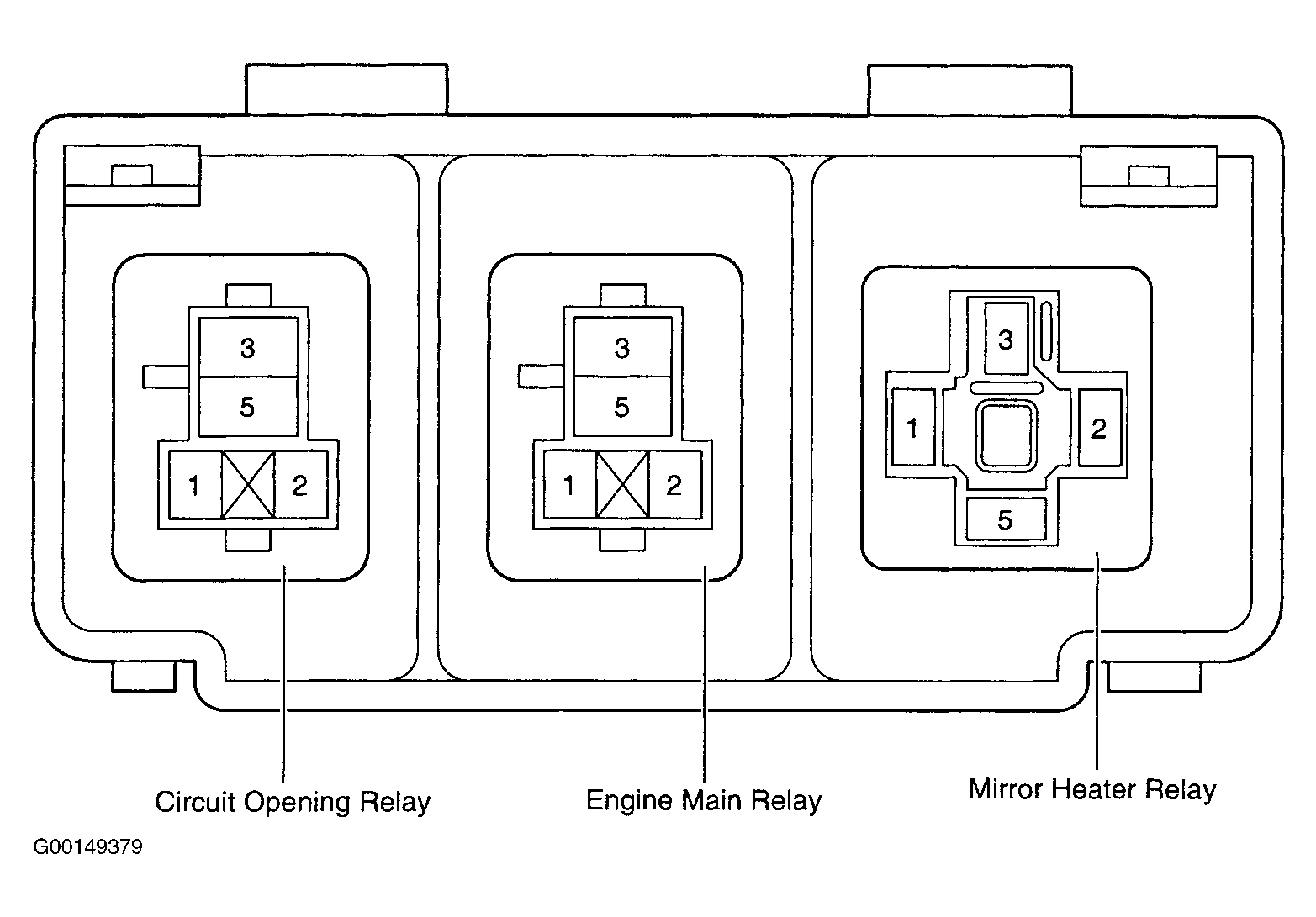

Fig 1: Identifying Relay Block (R/B) No. 1
G00149379Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
RELAY BLOCK (R/B) NO. 1 RELAY IDENTIFICATION

RELAY DESCRIPTION
Mirror Heater Relay
Engine Main Relay
Circuit Opening Relay
