Outside Rear View Mirror: Removal

1. Open the cap, then remove the screw.
2. Using a screwdriver, remove the inside handle bezel.

   HINT:

   Tape the screwdriver tip before use.

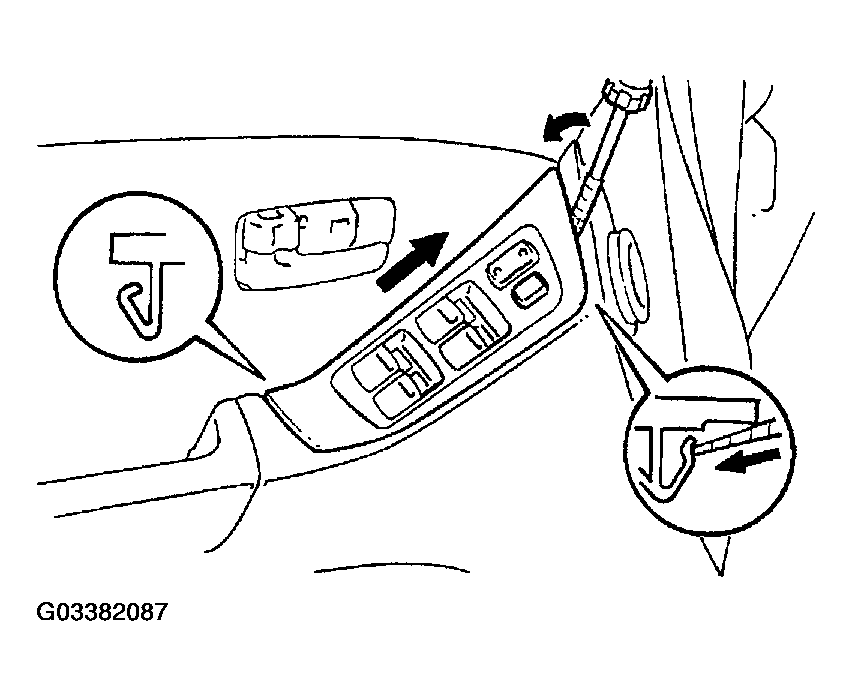

   Fig 1: Removing Inside Handle Bezel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Using a screwdriver, remove the power window switch as shown in the illustration.

HINT:

Tape the screwdriver tip before use.

Fig 2: Removing Power Window Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Using a screwdriver, remove the courtesy light, then disconnect the connector.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the 4 screws and 3 clips.
3. Insert a screwdriver between the door trim and door panel to pry the door trim.

   HINT:

   Tape the screwdriver tip before use.

4. Release the claws, then remove the inner weatherstrip from the door trim.

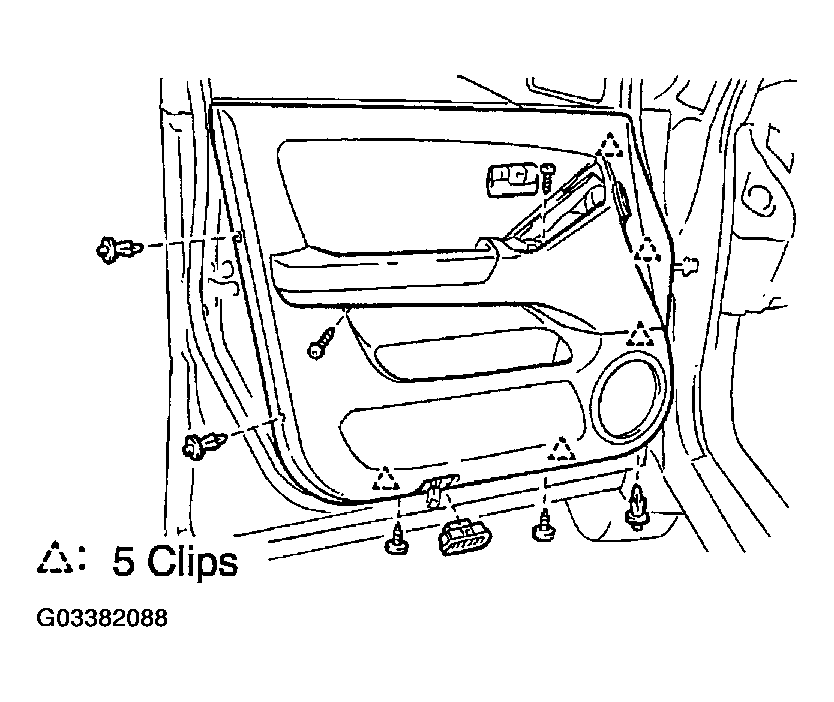

Fig 3: Removing Door Trim
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 2 grommets.
2. Remove the service hole cover.

1. Remove the clip.
2. Insert a screwdriver between the door panel and lower frame bracket garnish to pry the garnish out.

   HINT:

   Tape the screwdriver tip before use.

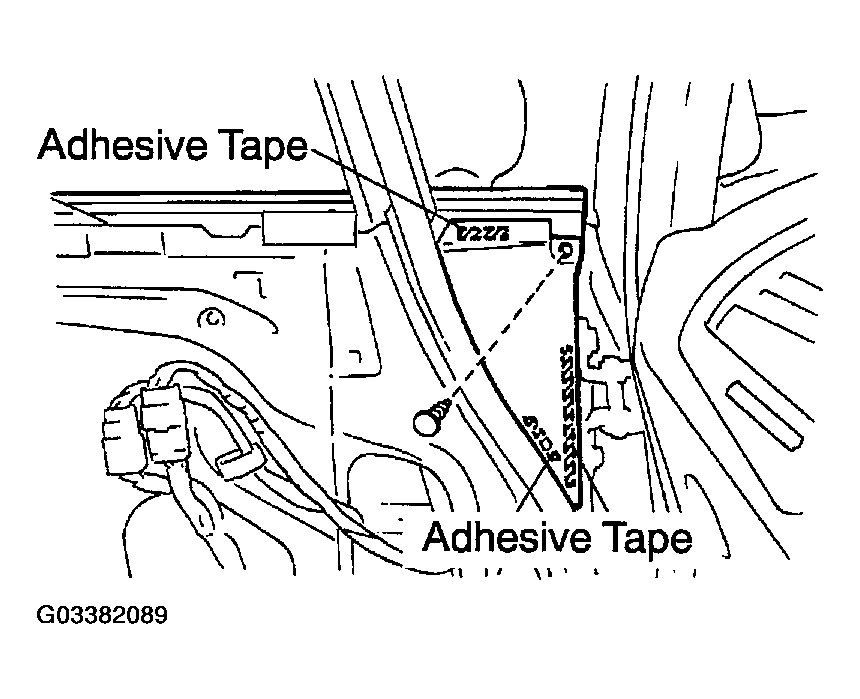

   Fig 4: Removing Lower Flame Bracket Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Disconnect the connector.
2. Remove the 3 bolts and outside rear view mirror.

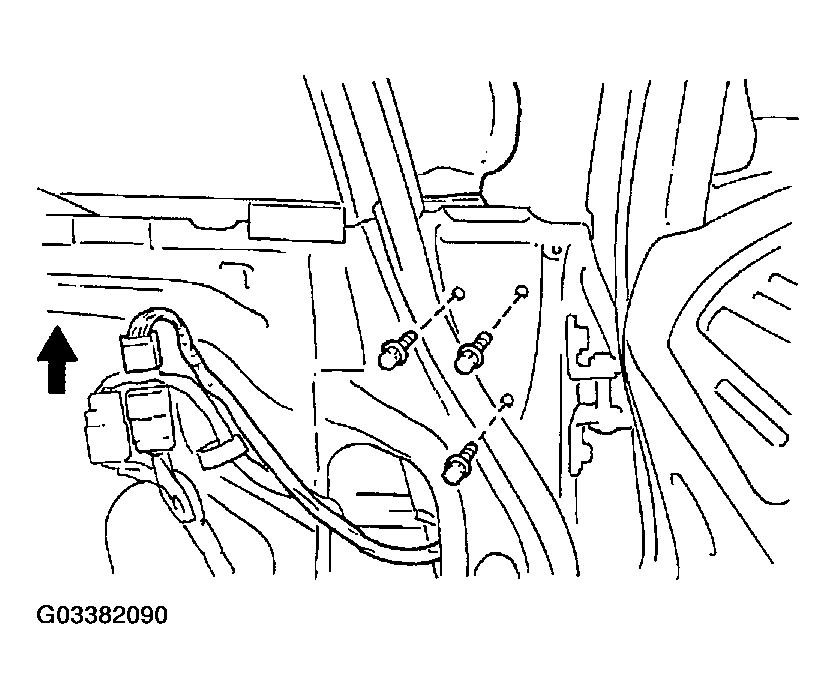

   Fig 5: Removing Outside Rear View Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
