Fuel Lid: Removal

1. Using a screwdriver, remove the front part of deck board assembly.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the 2 bolts and deck board assembly.
Fig 1: Removing Deck Board Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the nut, 4 clips and deck side trim box.

Insert a screwdriver between the rear door inside scuff plate and body to pry the scuff plate.

HINT:

Tape the screwdriver tip before use.

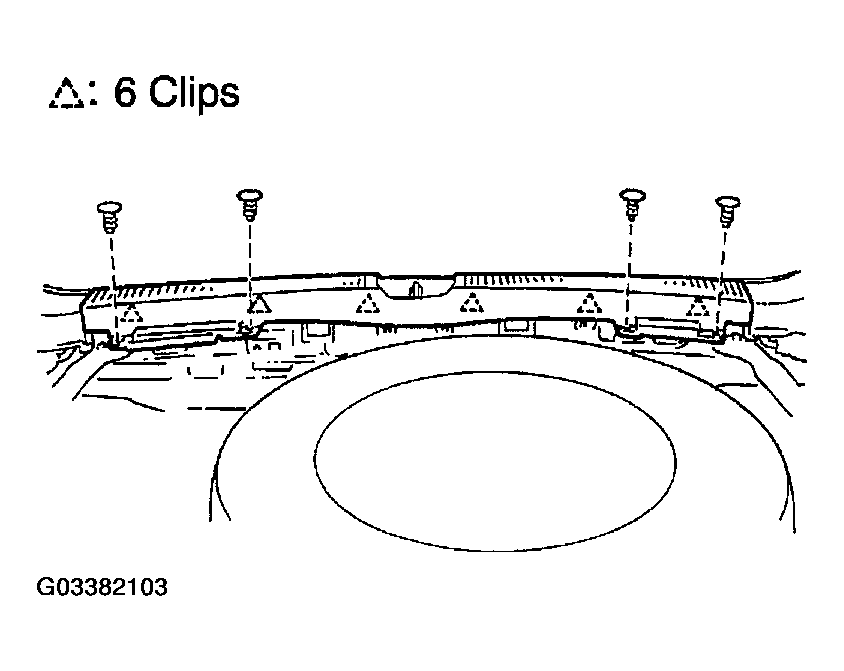

1. Remove the 4 clips.

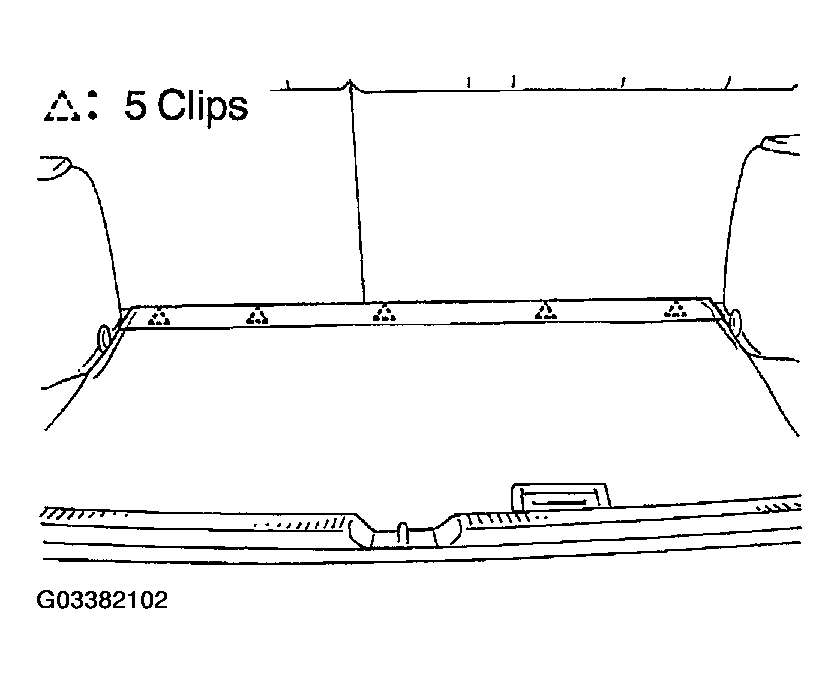

2. Insert a screwdriver between the rear floor finish plate and body to pry the finish plate.

   HINT:

   Tape the screwdriver tip before use.

   Fig 2: Removing Rear Floor Finish Plate

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

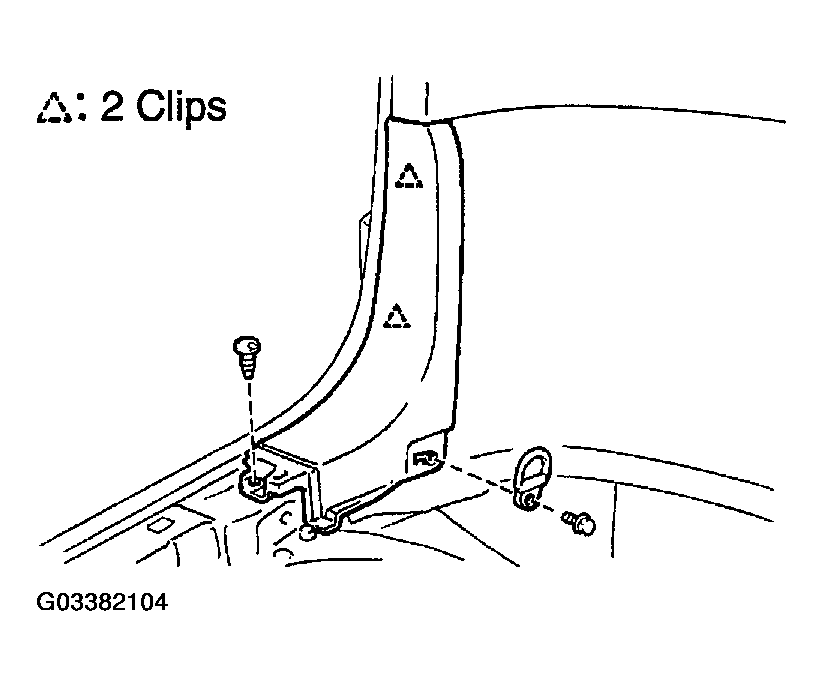

1. Remove the bolt and floor hook.
2. Remove the clip.
3. Insert a screwdriver between the rear floor finish side plate and body to pry the side plate.

   HINT:

   Tape the screwdriver tip before use.

   Fig 3: Removing Rear Floor Finish Side Plate LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

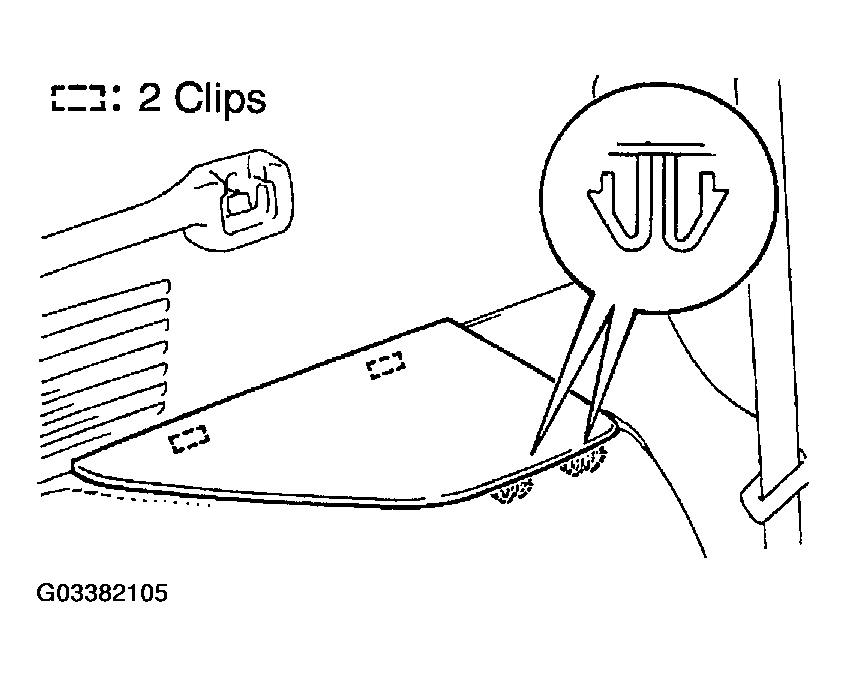

Install the screwdriver between the deck side trim cover and the deck trim side panel to pry the deck side trim cover.

HINT:

Tape the screwdriver tip before use.

Fig 4: Removing Deck Side Trim Cover LH

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the 3 clips.

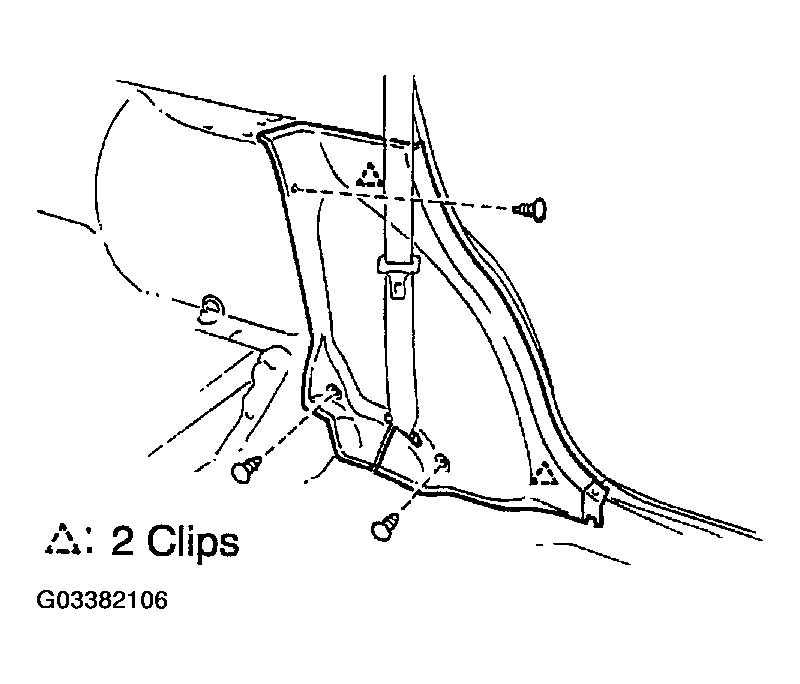

2. Insert a screwdriver between the rear seat side garnish and body to pry the garnish.

   HINT:

   Tape the screwdriver tip before use.

   Fig 5: Removing Rear Seat Side Garnish LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

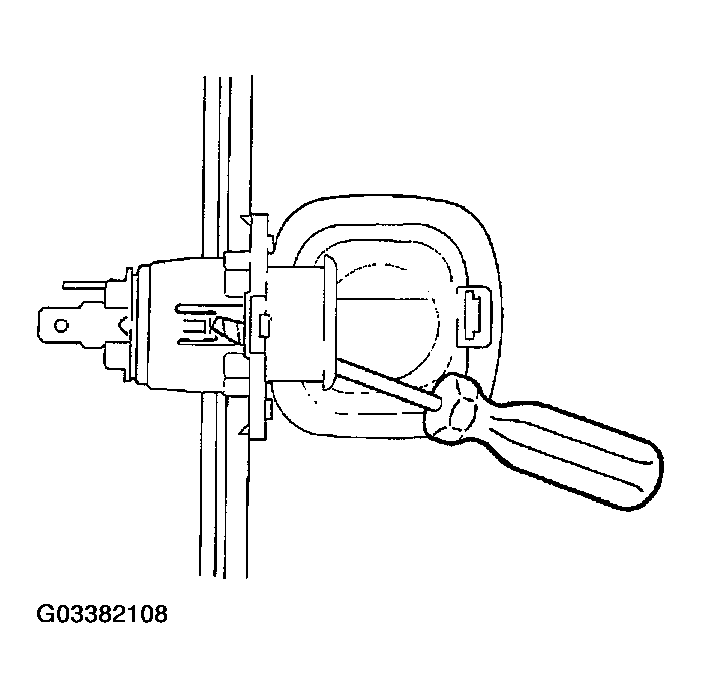

1. Using a screwdriver, disengage the claw on the accessory socket cover from the hole in the accessory socket, then pull out the accessory socket approx. 10 mm (0.39 in.).

   HINT:

   Tape the screwdriver tip before use.

   Fig 6: Removing Accessory Socket

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Using a screwdriver, disengage the claw on the accessory socket cover from the body and remove the accessory socket and cover as a unit.

   HINT:

   Tape the screwdriver tip before use.

3. Disconnect the connector.
4. Disassemble the accessory socket from the socket cover.
   Fig 7: Disengaging Claw On Accessory Socket Cover

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

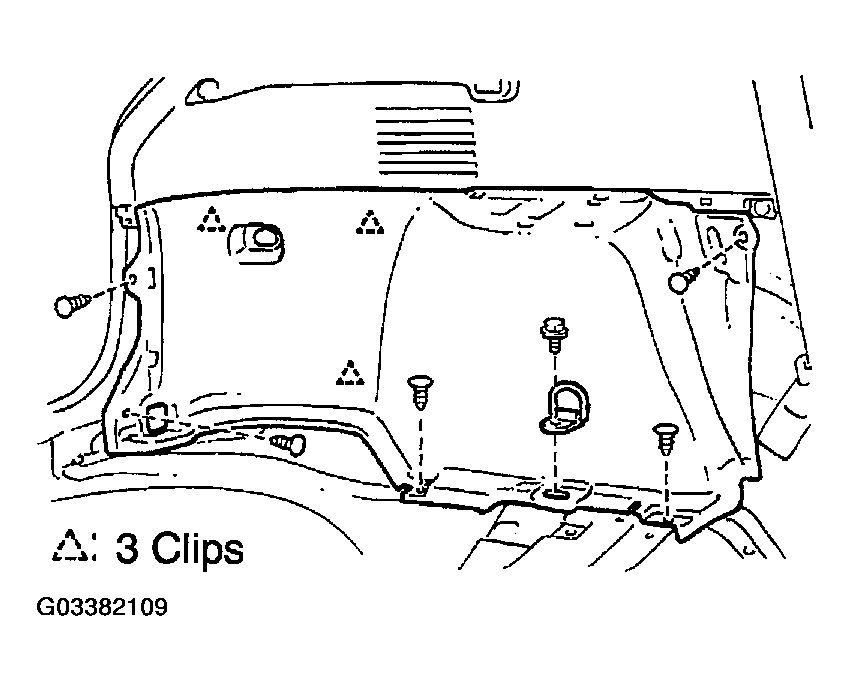

1. Remove the bolt and floor hook.
2. Remove the 5 clips.
3. Insert a screwdriver between the deck side panel and body to pry the deck trim side panel.

   HINT:

   Tape the screwdriver tip before use.

   Fig 8: Removing Deck Trim Side Panel LH

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

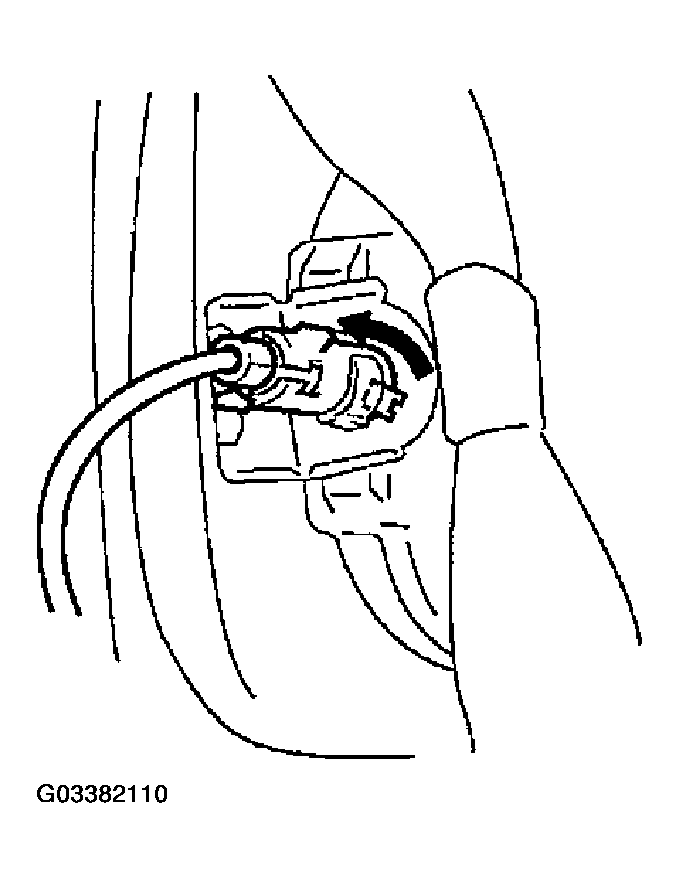

1. Rotate the fuel lid lock left to disengage the lock, then pull it out.
   Fig 9: Rotating Fuel Lid Lock

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

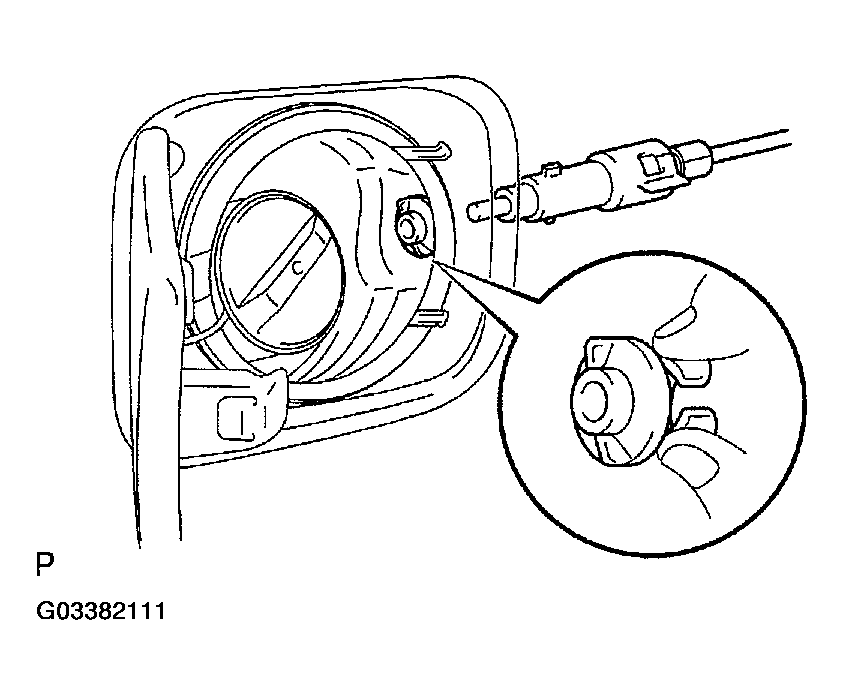

2. Hold the retainer between your fingers to push it out at in side of the vehicle.
Fig 10: Removing Fuel Lid Lock Control
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the clip and fuel tank cap tether from the fuel filler opening lid.

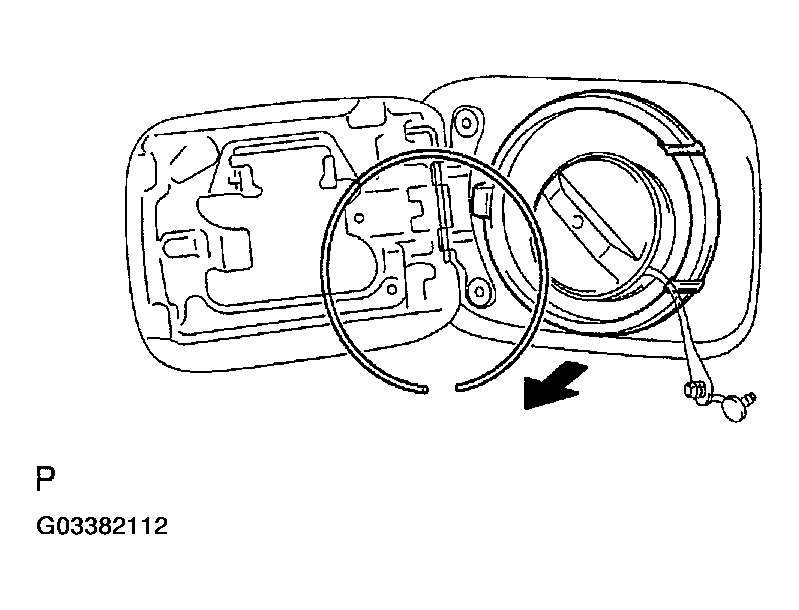

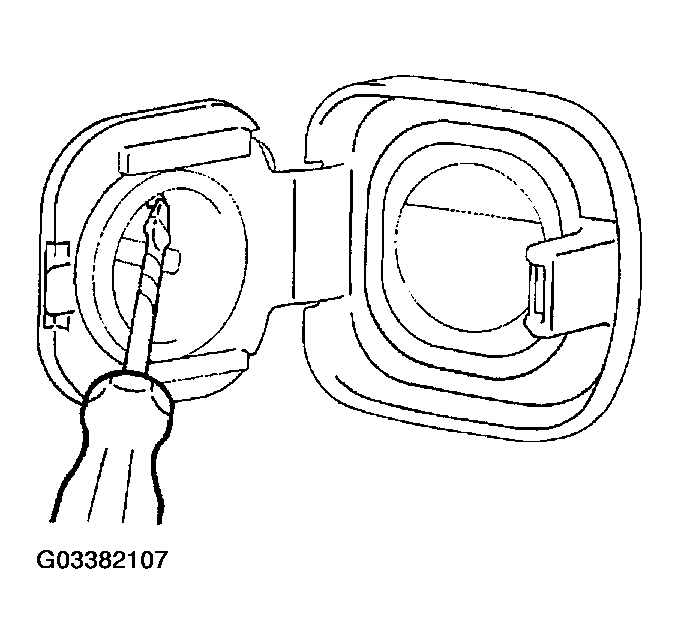

1. Remove the ring from the fuel filler shield.
2. Remove the fuel tank cap and shield.
   CAUTION: Always keep the tank cap closed when it is not required to be open. Keep all fire away during the operation.
3. Install the fuel tank cap quickly.
   Fig 11: Removing Ring From Fuel Filler Shield

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

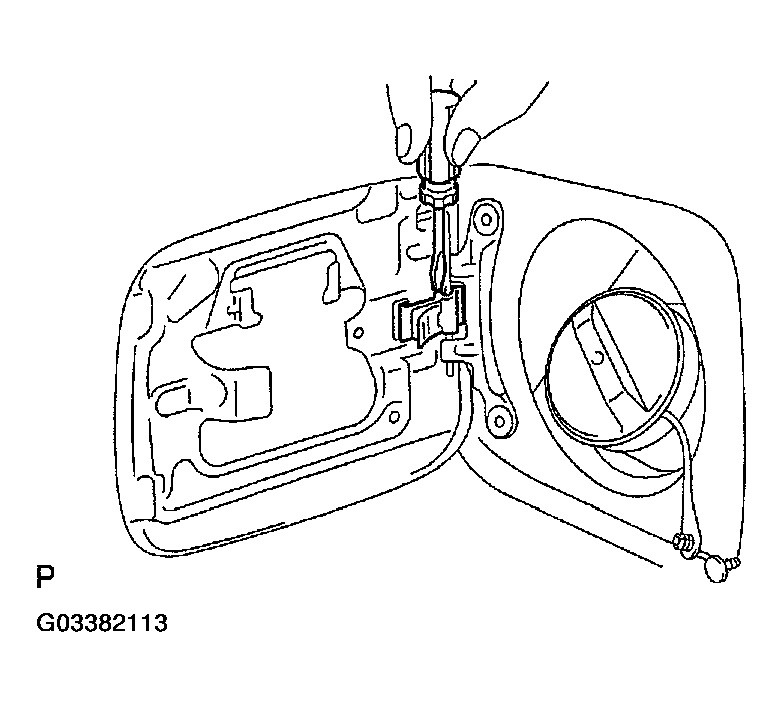

Insert a screwdriver between the spring and fuel filler opening lid to remove the spring as shown in the illustration.

HINT:

Tape the screwdriver tip before use.

Fig 12: Removing Fuel Lid Opening Spring

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

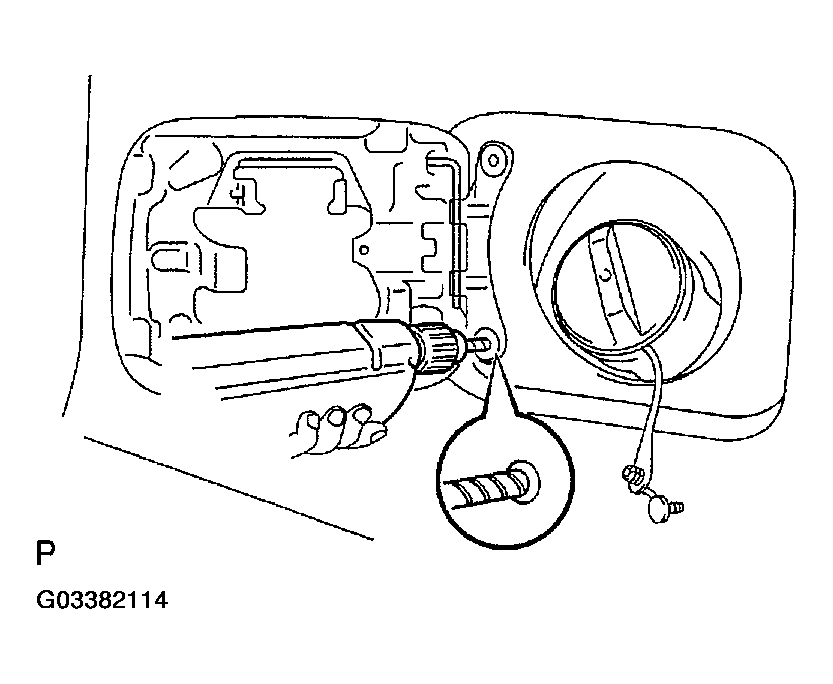

1. Using a drill, drill out the rivet heads.
2. Remove the fuel filler opening lid.
   Fig 13: Removing Fuel Filler Opening Lid

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
