Front Door: Disassembly

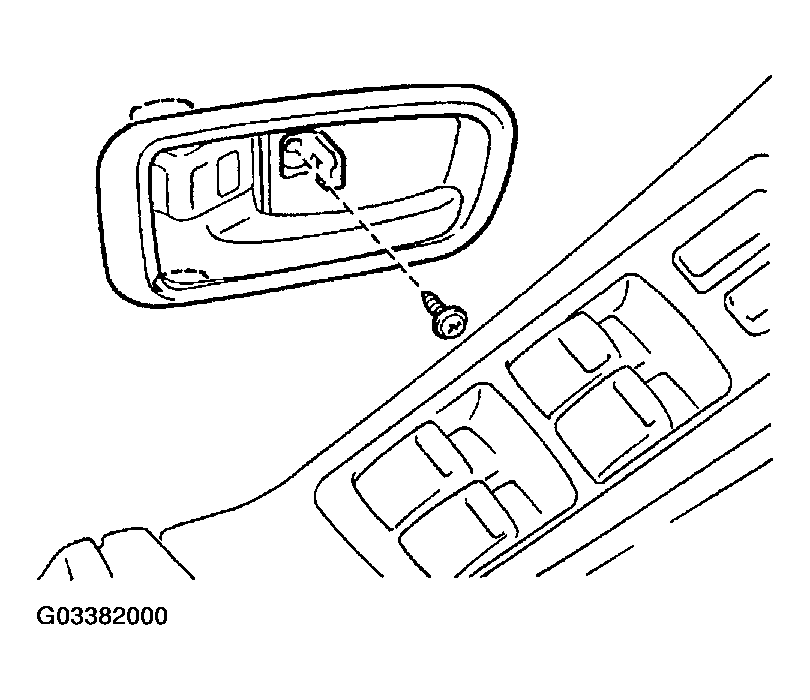

1. Open the cap, then remove the screw.
2. Using a screwdriver, remove the inside handle bezel.

   HINT:

   Tape the screwdriver tip before use.

   Fig 1: Removing Door Inside Handle Bezel

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

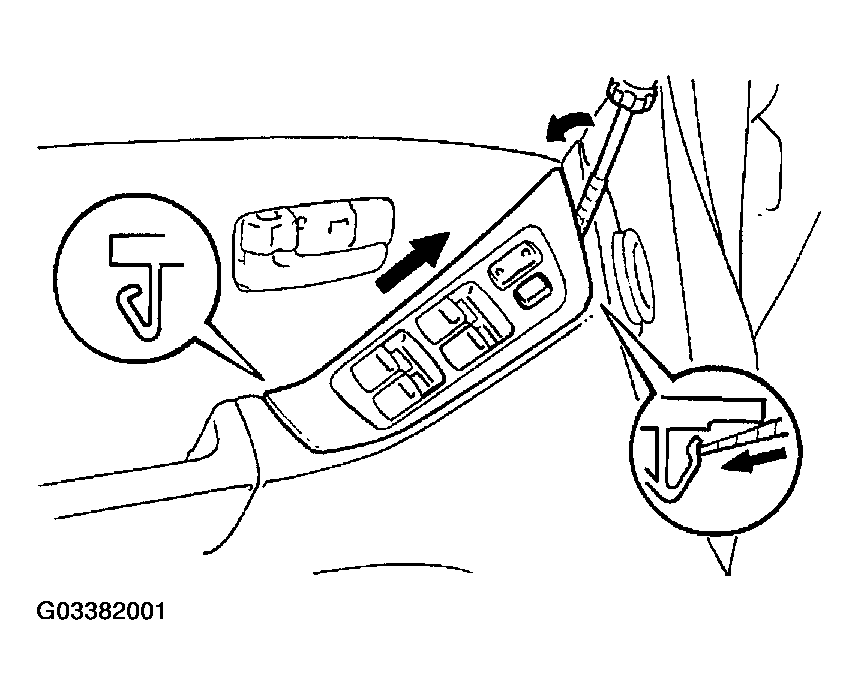

Using a screwdriver, remove the power window switch as shown in Fig 2.

Fig 2: Removing Power Window Switch

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

HINT:

Tape the screwdriver tip before use.

1. Using a screwdriver, remove the courtesy light, then disconnect the connector.

   HINT:

   Tape the screwdriver tip before use.

2. Remove the 4 screws and 3 clips.
3. Insert a screwdriver between the door trim and door panel to pry the door trim.

   HINT:

   Tape the screwdriver tip before use.

4. Pull the door trim upward to remove the door trim.
5. Release the claws, then remove the inner weatherstrip from the door trim.

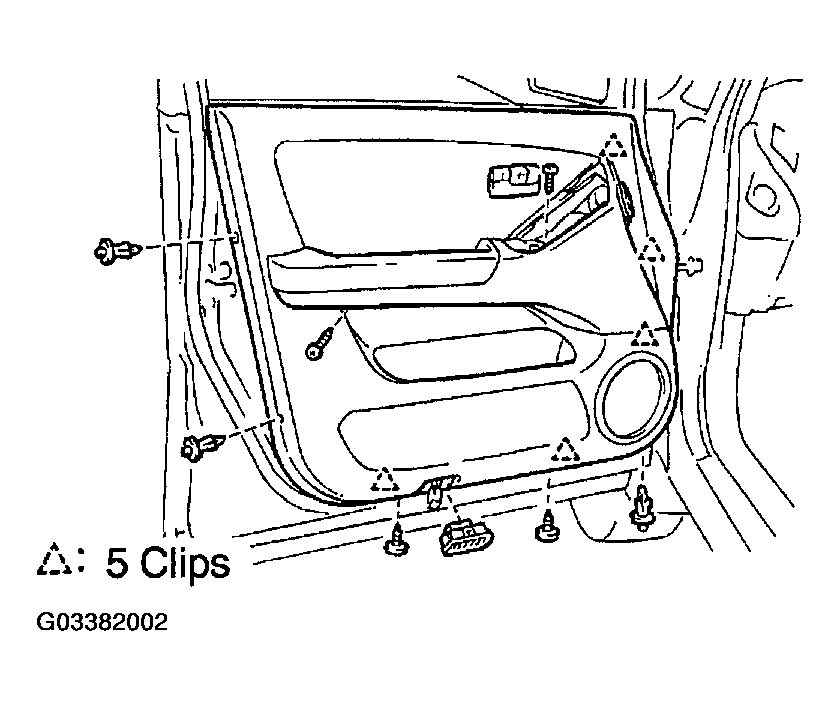

   Fig 3: Removing Door Trim

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

Remove the screw and inside handle, then disconnect the 2 cables.

1. Disconnect the connector.
2. Remove the 3 screws and speaker.

1. Remove the 2 grommets.
2. Remove the service hole cover.

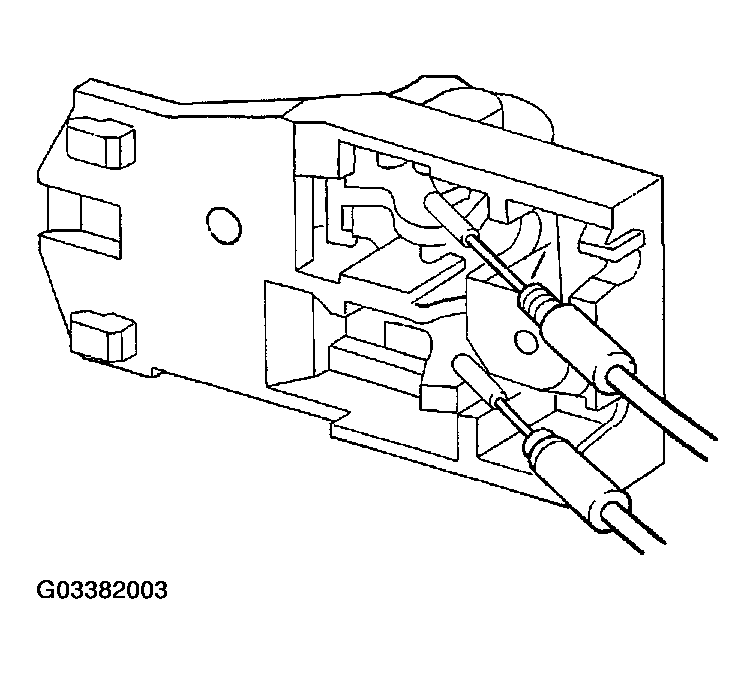

   Fig 4: Removing Inside Handle Cables

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

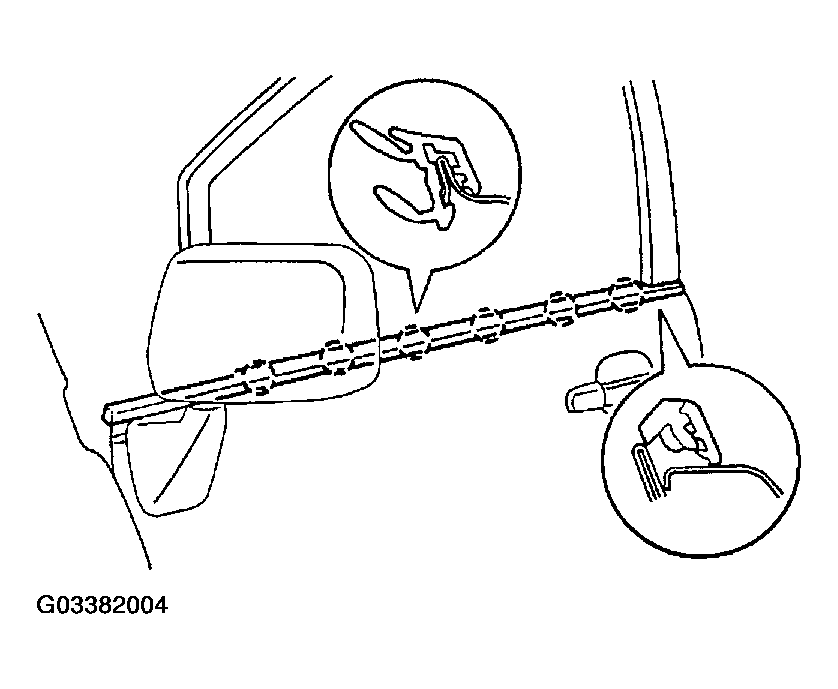

Remove the door belt moulding as shown in the illustration.

Fig 5: Removing Door Belt Moulding

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

1. Remove the clip.
2. Insert a screwdriver between the lower frame bracket garnish and door panel to pry the garnish out.

   HINT:

   Tape the screwdriver tip before use.

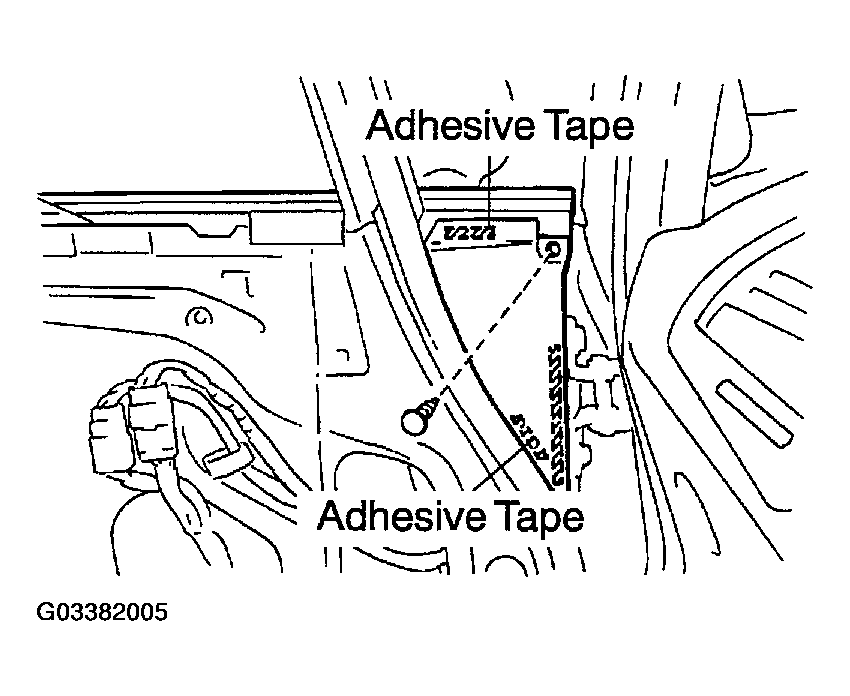

   Fig 6: Removing Lower Frame Bracket Garnish

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

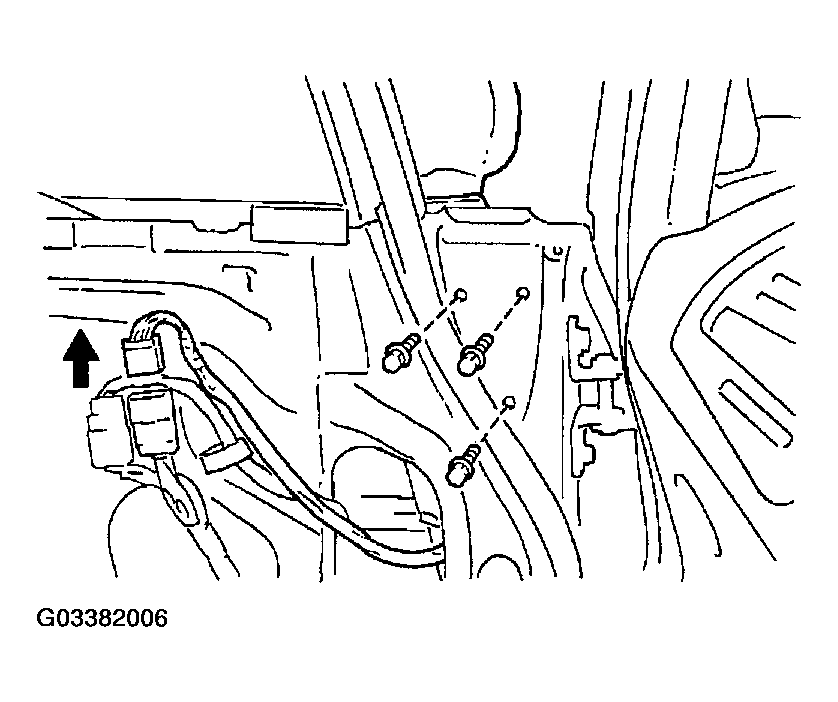

1. Disconnect the connector.
2. Remove the 3 bolts and outside rear view mirror.
   Fig 7: Removing Outside Rear View Mirror

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

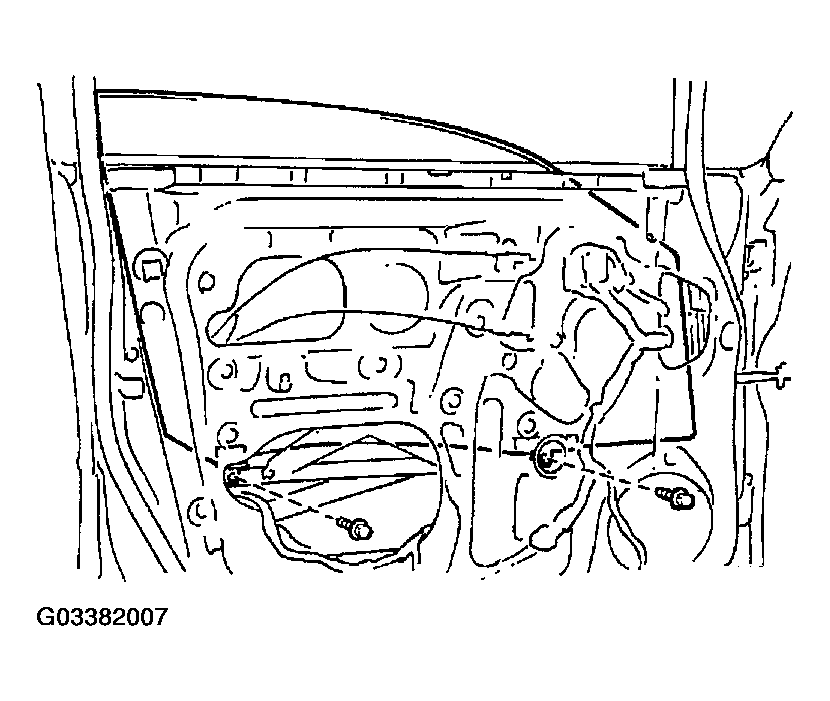

1. Open the door glass until the bolts appear in the service hole.
2. Remove the 2 bolts and door glass.
   NOTE: Do not damage the door glass.

   HINT:

   Pull the glass upward to remove it.

HINT:

If the link or door key lock and unlock switch is touched power window might start its operating, causing unexpected injury to an operator.

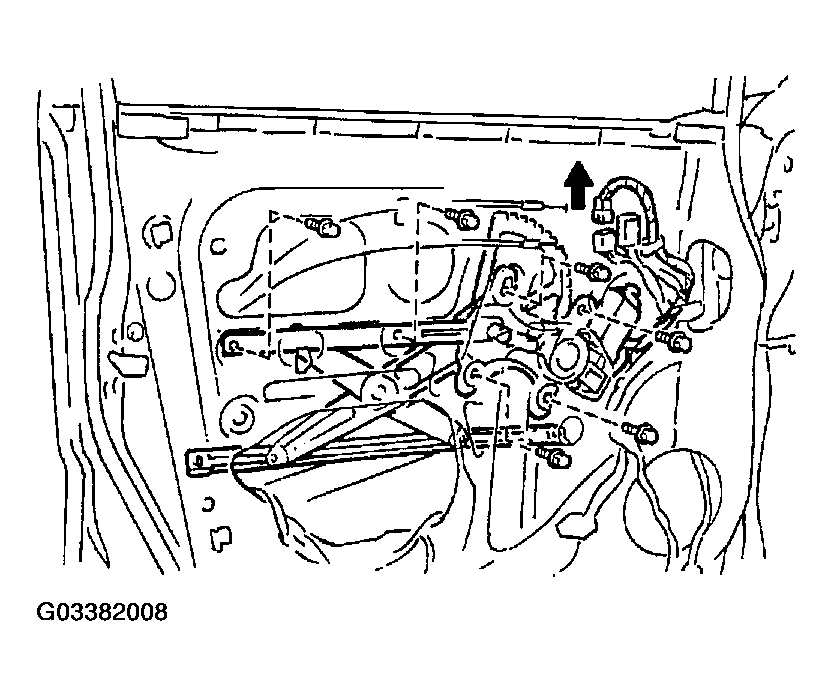

Fig 9: Removing Window Regulator

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

As the circuit of the key-linked up-and-down function of the power window is isolated, even if the connector of the power window master switch is disconnected the key-linked up-and-down function operates.

1. Disconnect the connector.
2. Remove the 6 bolts and window regulator.

   HINT:

   Remove the window regulator through the service hole.

Remove the screw and rear lower frame.

1. Disconnect the 2 links from the outside handle and key cylinder.

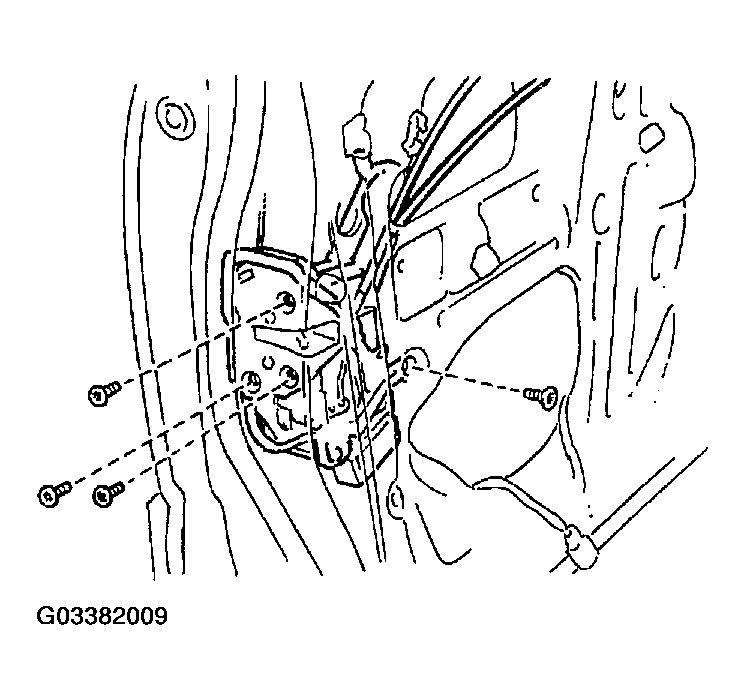

2. Remove the 4 torx screws and door lock.
3. Disconnect the 2 connectors.

   HINT:

   Remove the door lock through the service hole.

4. Remove the 2 screws and door lock cover from the door lock.

1. Remove the cap, 2 bolts and outside handle with key cylinder.
2. Remove the bolt and key cylinder from the outside handle.
