Home >> Lexus >> 2003 >> RX 300 AWD >> Repair and Diagnosis >> Body & Frame >> Exterior/Interior Trim >> Back Door >> Components

Back Door: Components

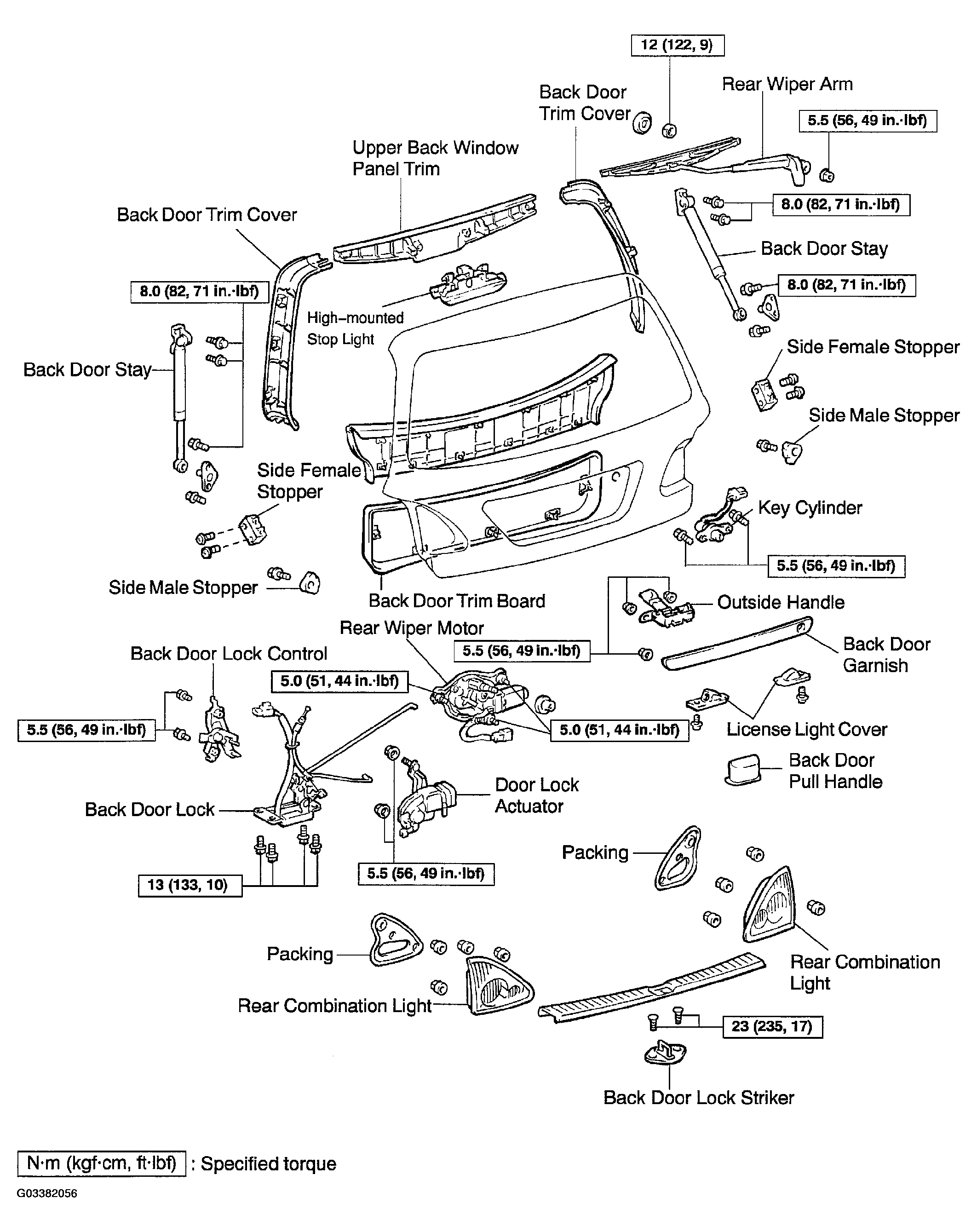

Fig 1: Identifying Back Door Components

G03382056

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
