Air Cooled Oil Cooler: Removal

REMOVE RADIATOR GRILLE SUB-ASSY
1. Remove the 3 screws.
2. Release the 2 clips and remove the radiator grille sub-assy.

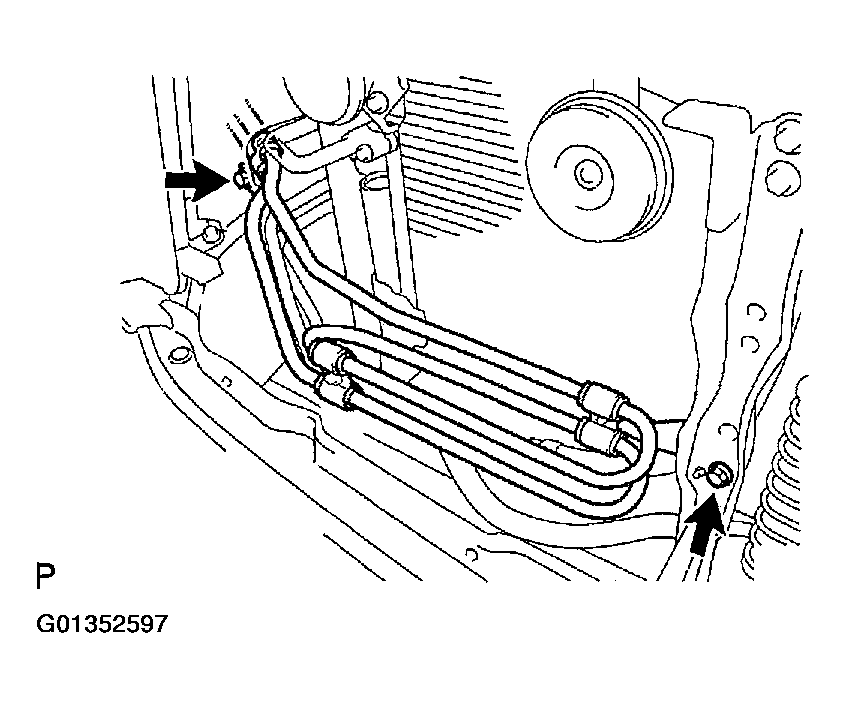

  Fig 1: Removing Power Steering Oil Cooler Sub-Assy
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
SEPARATE POWER STEERING OIL COOLER SUB-ASSY
Remove the 2 bolts and separate the power steering oil cooler sub-assy.

Torque: 7.5 N.m (76 kgf.cm, 66 in.lbf)

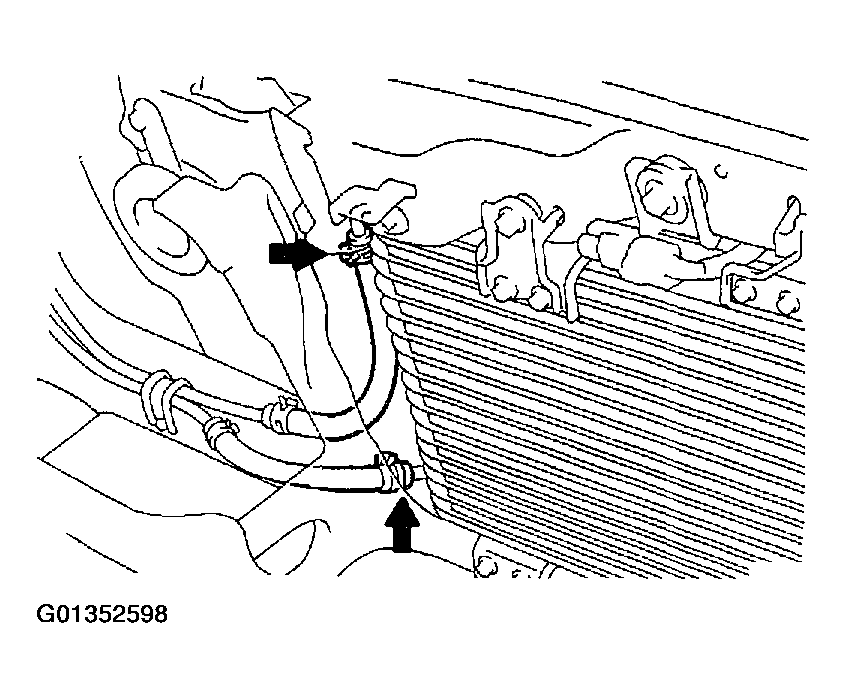

Fig 2: Removing Oil Cooler Hoses
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
REMOVE OIL COOLER
1. Loosen the 2 clips and disconnect the 2 hoses.

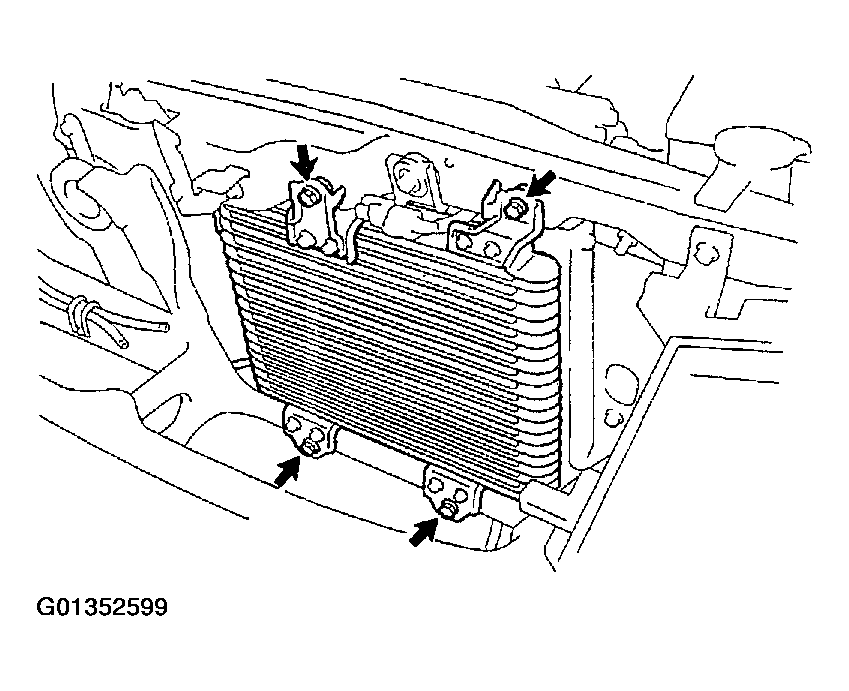

  Fig 3: Removing Oil Cooler
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 4 bolts and oil cooler.
  Torque: 12 N.m (117 kgf.cm, 8 ft.lbf)

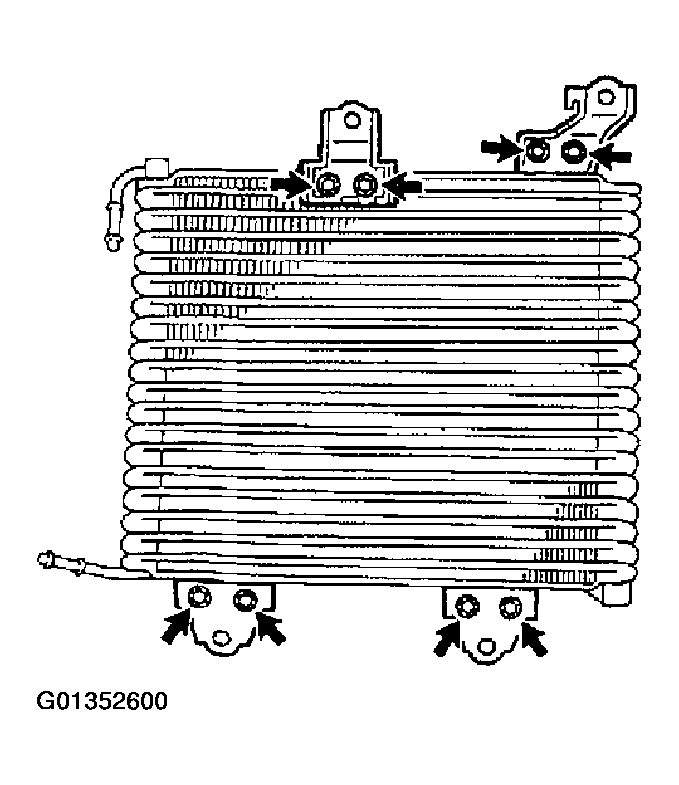

  Fig 4: Removing Oil Cooler Brackets & Stays
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Remove the 8 bolts, the 2 oil cooler brackets and the 2 stays.
  Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)
REMOVE OIL COOLER PIPE BRACKET

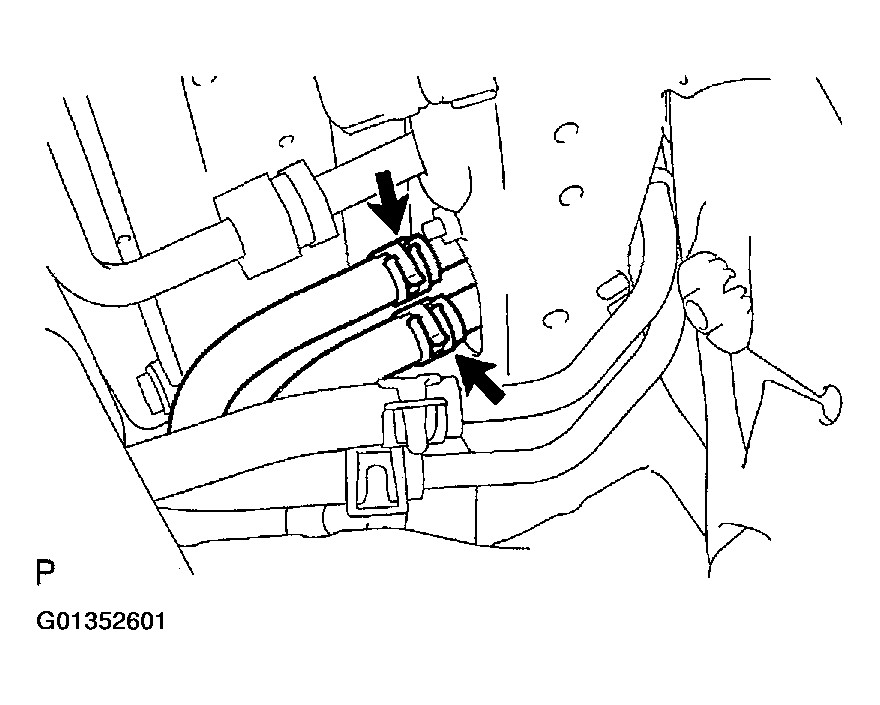

1. Loosen the 2 clips and disconnect the 2 hoses.

  Fig 5: Disconnecting Hoses
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove the 2 bolts and the oil cooler pipe bracket.
  Torque: 4.9 N.m (50 kgf.cm, 43 in.lbf)

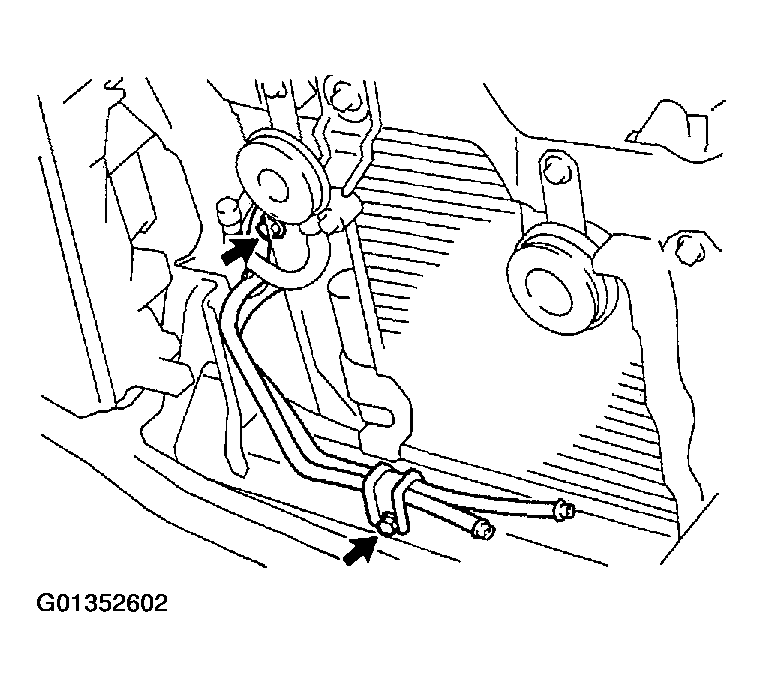

  Fig 6: Removing Oil Cooler Pipe Bracket
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Loosen the 2 clips and disconnect the 2 hoses.
