Automatic Transmission Unit: Removal

Remove Battery
Remove Air Cleaner Cap Drive Belt, Fan And Fluid Coupling Assembly, Fan Shroud And Radiator Reservoir (See Removal )

Fig 1: Removing Upper Side Mounting Bolt
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Oil Filler Pipe Upper Side Mounting Bolt
1. Remove The Level Gauge.
2. Remove The Upper Side Mounting Bolt.
  Torque: 12 N.M (122 Kgf.Cm, 9 Ft.Lbf)
3. Disconnect The 2 Bleeder Hoses.

  Fig 2: Disconnecting Transmission Wire Connectors
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Disconnect Connectors
1. Release The Lock And Disconnect The Transmission Wire Connector.
2. Disconnect The 2 Transmission Wire Connectors.
3. Separate The Connector Clamp.

  Fig 3: Removing Transfer Shift Lever Boot
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Transfer Shift Lever Boot
1. Remove The Transfer Shift Lever Knob.
2. Remove Upper Console Panel (See Components ).
3. Remove The 4 Bolts And The Transfer Shift Lever Boot.
  Torque: 5.4 N.M (55 Kgf.Cm, 48 In.Lbf)
Remove Engine No. 1 And No. 2 Under Covers Torque: 29 N.M (296 Kgf.Cm, 21 Ft.Lbf)
Remove Lh And Rh Front Exhaust Pipes (See Exhaust System )
Remove Front And Rear Propeller Shafts (See Removal )

Fig 4: Removing Oil Filler Pipe
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Oil Filler Pipe
1. Remove The Bolt And The Filler Pipe.
  Torque: 12 N.M (122 Kgf.Cm, 9 Ft.Lbf)
2. Remove The O-Ring From The Filler Pipe.
  Hint:

  At The Time Of Installation, Replace The Used O-Ring With A New One.
Separate Transmission Shift Control Rod
Remove The Clip And Pin And Separate The Shift Control Rod.

Fig 5: Removing Transmission Shift Control Rod
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Separate Transfer Shift Lever
Remove The Nut And Separate The Transfer Shift Lever Rod Assembly.

Torque: 12 N.M (122 Kgf.Cm, 9 Ft.Lbf)

Fig 6: Removing Transfer Shift Lever Rod Assembly
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Separate Wire Harness
1. Disconnect 3 Connectors.
2. Remove The 3 Clamps From The Transmission Unit And Separate The Transmission Wire.

  Fig 7: Removing Wire Harness
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Torque Converter Clutchting Bolt
1. Remove The Bolt And The Hole Plug.
  Torque: 18 N.M (185 Kgf.Cm, 13 Ft.Lbf)

  Fig 8: Removing Hole Plug
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Turn The Crankshaft To Gain Access To Each Bolt.

  Fig 9: Removing Torque Converter Clutching Bolt
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
3. Hold The Crankshaft Pulley Nut With A Wrench, And Remove The 6 Bolts.
  Torque: 48 N.M (490 Kgf.Cm, 35 Ft.Lbf)

  Hint:

  At The Time Of Installation, First Install The Green Colored Bolt. And Then Install The Other 5 Bolts.

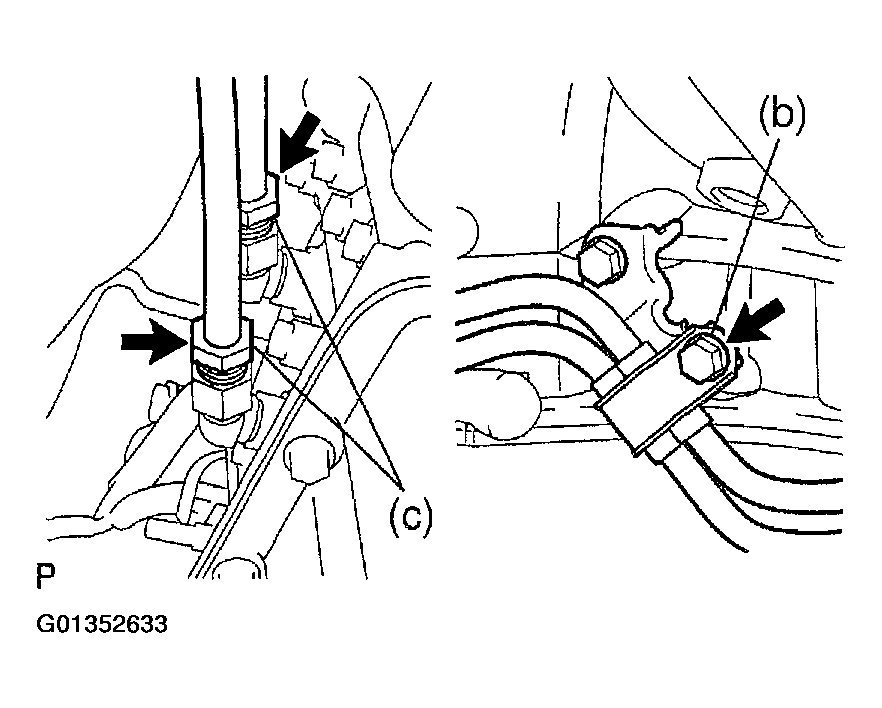

Disconnect Oil Cooler Pipes
1. Loosen The 2 Union Nuts.
2. Remove The Bolt And The Clamp.
  Torque: 12 N.M (122 Kgf.Cm, 9 Ft.Lbf)
3. Remove The 2 Union Nuts And Disconnect The 2 Oil Cooler Pipes.
  Torque: 34 N.M (347 Kgf.Cm, 25 Ft.Lbf)

  Fig 10: Disconnecting Oil Cooler Pipes
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Separate Ground Cable
Remove The Bolt And Separate The Ground Cable.

Torque: 20 N.M (204 Kgf.Cm, 15 Ft.Lbf)

Fig 11: Removing Ground Cable
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Crossmember And Transfer Case Protector
1. Support The Transmission With A Jack.

  Fig 12: Removing Crossmember
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
2. Remove The 3 Bolts And The Transfer Case Protector.
  Torque: 29 N.M (296 Kgf.Cm, 21 Ft.Lbf)
3. Remove The 8 Bolts, The 2 Nuts And The Crossmember.
  Torque:

  Bolt: 50 N.M (510 Kgf.Cm, 37 Ft.Lbf)

  Nut: 74 N.M (750 Kgf.Cm, 54 Ft.Lbf)

  Fig 13: Removing Engine Mounting Insulator Rr
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Engine Mounting Insulator Rr
Remove The 4 Bolts And The Engine Mounting Insulator Rr.

Torque: 59 N.M (600 Kgf.Cm, 43 Ft.Lbf)

Hint:

At The Time Of Installation, Install The Insulator Rear With The Inscribing Mark Facing Backward.

Fig 14: Removing Transmission Unit Bolts
Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
Remove Transmission
1. Lower The Rear End Of The Transmission Unit.
2. Remove The Transmission Wire Clamp Bolt.
3. Remove The 10 Bolts And The Transmission Unit.
  Torque:

  Bolt A: 71 N.M (724 Kgf.Cm, 52 Ft.Lbf)

  Bolt B: 37 N.M (377 Kgf.Cm, 27 Ft.Lbf)
Remove Wire Harness And Hose
1. Remove The 4 Bolts.
  Torque: 8.0 N.M (82 Kgf.Cm, 71 In.Lbf)
2. Release The Lock And Disconnect The Connector.
3. Disconnect The 5 Connectors.

  Fig 15: Removing Wire Harness & Hose
  Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Separate The 6 Connector Clamps.
5. Disconnect The 5 Hoses And Remove The Wire Harness And The Hose.
