Belt Tension

Serpentine drive belt uses an automatic belt tensioner. No adjustment is necessary, but belt must be properly installed. For belt routing, see Fig 1.

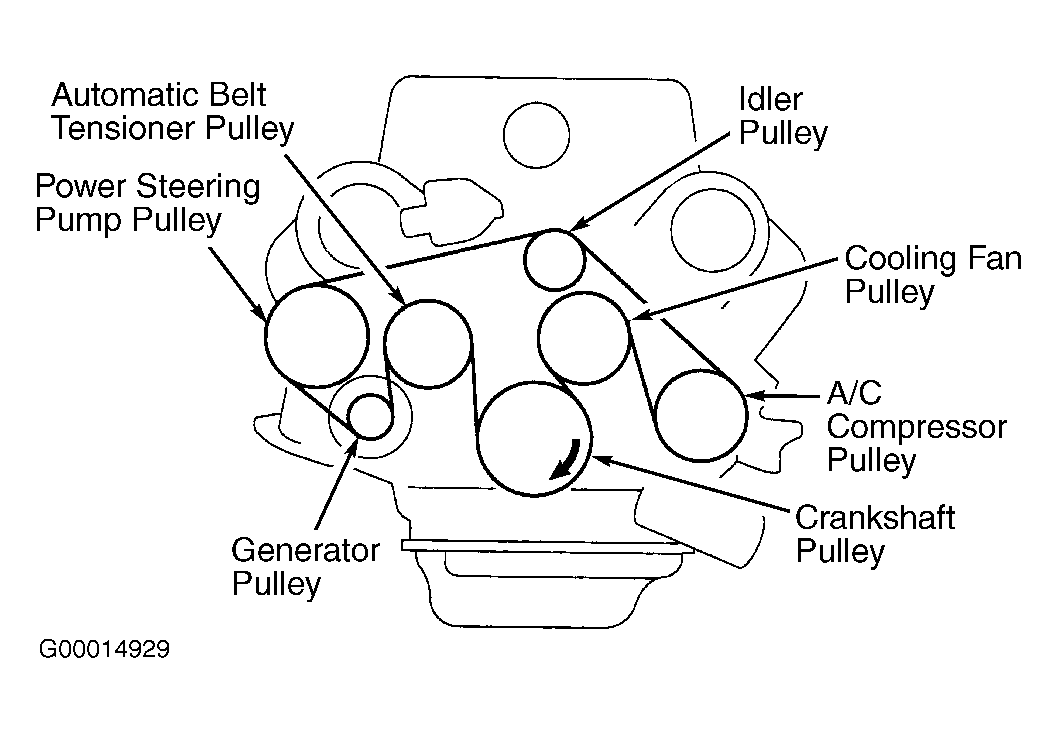

Fig 1: Serpentine Drive Belt

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
