Rear Speed Sensor: Removal

REMOVE SPEED SENSOR

1. Disconnect the speed sensor connector.
2. Remove the clamp bolt from the upper control bracket.

   Torque: 13 N.m (130 kgf.cm, 9 ft.lbf)

3. Remove the 6 resin clips, holding the sensor wire harness from the frame, upper control arm and axle housing.

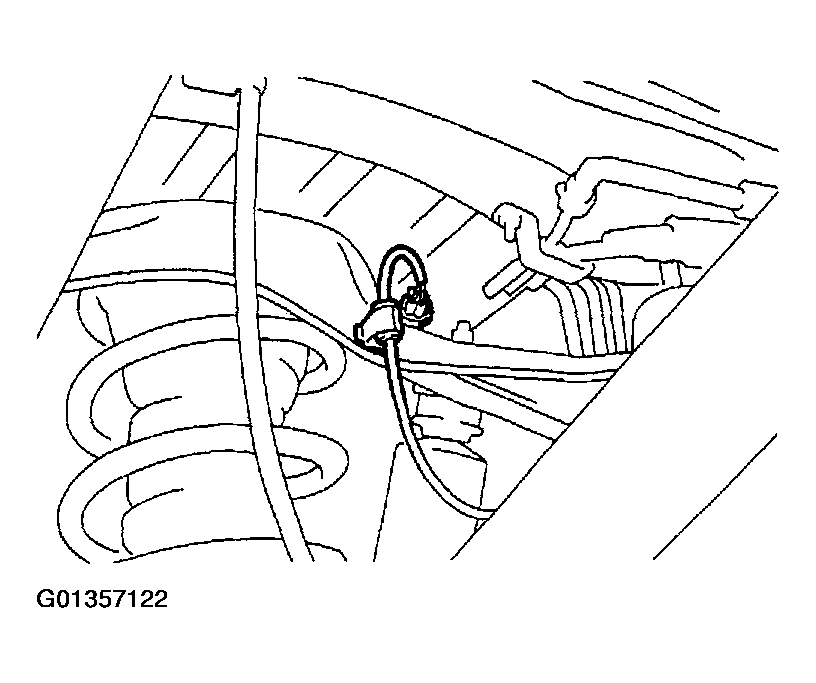

   Fig 1: Removing Resin Clips

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
4. Remove the mounting bolt and speed sensor.

   Torque: 8.0 N.m (82 kgf.cm, 71 in.lbf)

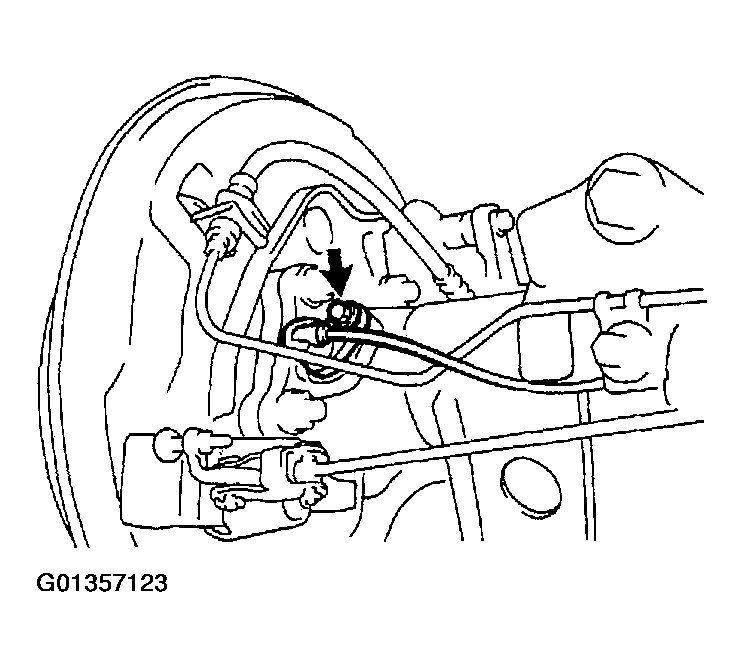

   Fig 2: Removing Mounting Bolt & Speed Sensor

   Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
