Home >> Lexus >> 2003 >> LX 470 >> Repair and Diagnosis >> Brakes >> Traction Control >> Abs Wheel Speed Sensors >> Front Speed Sensor >> Components

Front Speed Sensor: Components

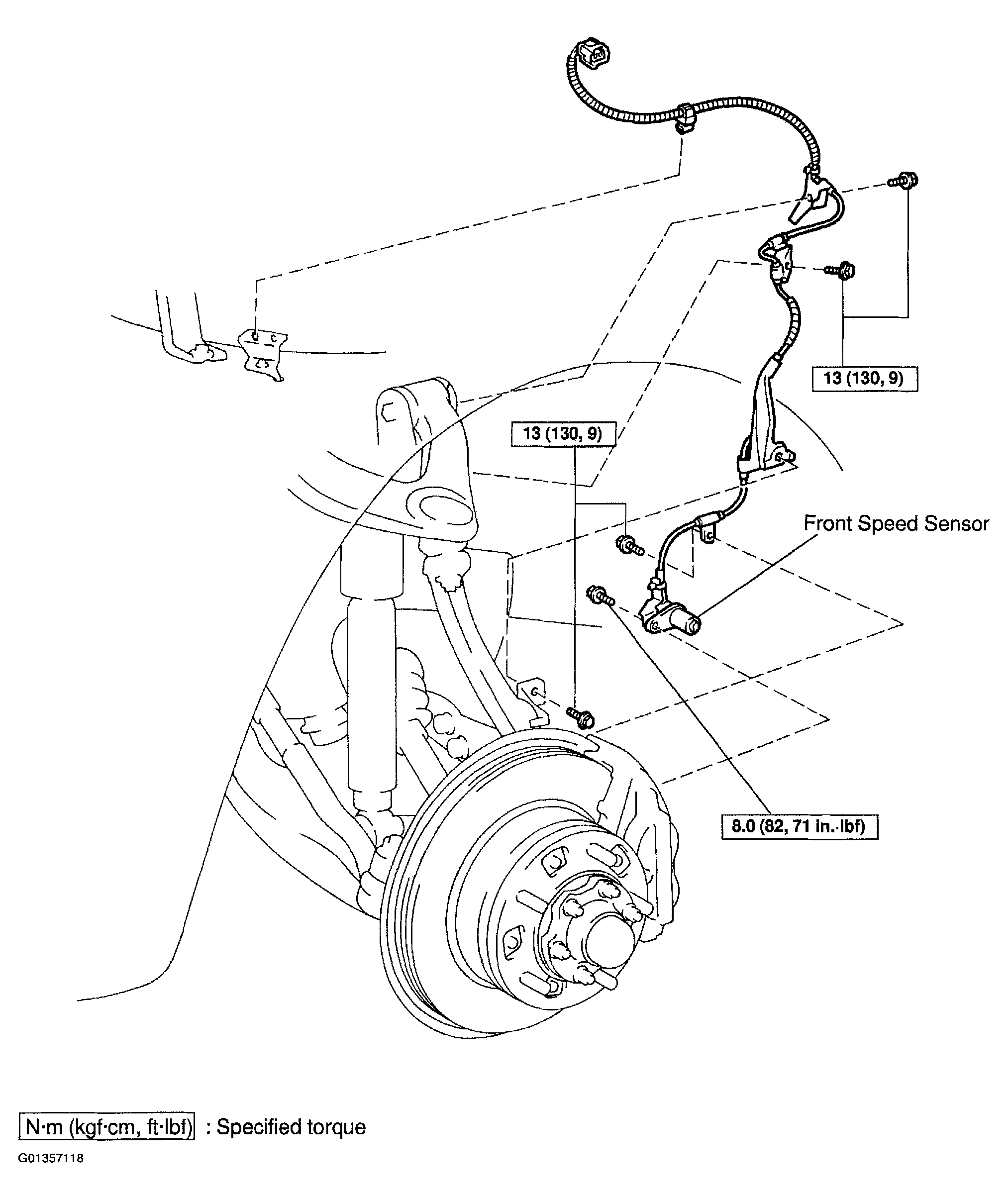

Fig 1: Front Speed Sensor Components

G01357118

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
