Home >> Lexus >> 2003 >> LX 470 >> Repair and Diagnosis >> Body & Frame >> Mirrors >> Electro Chromic Mirror System >> Location

Electro Chromic Mirror System: Location

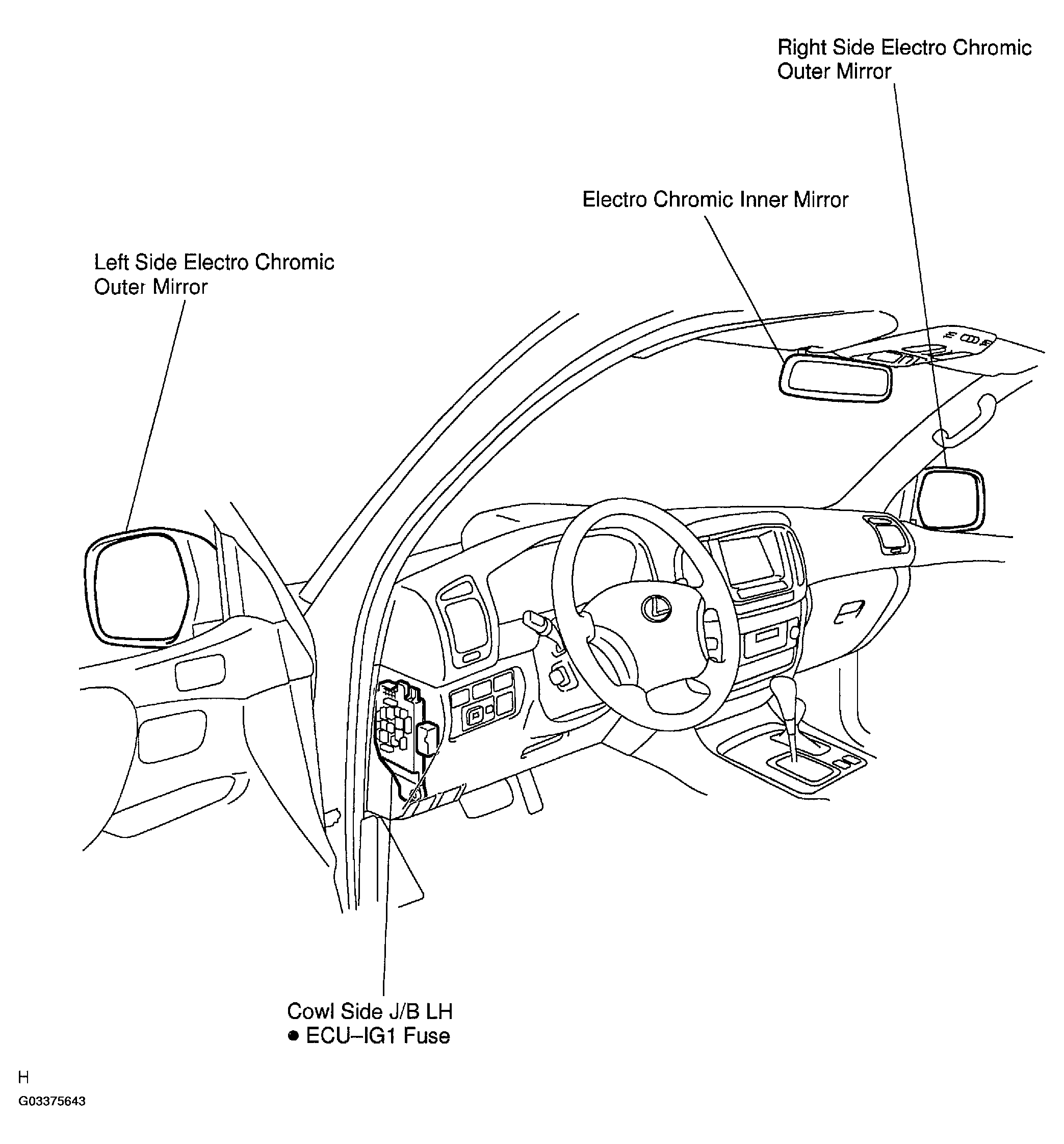

Fig 1: Identifying Electro Chromic Mirror System Components

G03375643

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
